Standard Optical Coating Service

In addition to the (3) standard AR Broadband Coatings we offer on our lens category pages, we also offer over (60) standard coatings that can be applied in a make to order fashion.

At OptoSigma, we understand the importance of high performance and stable optical coatings. We have extensive design, process development, and manufacturing experience for a large variety of optical thin film applications. From Bio-Tech dichroic filters, to Bio-Medical high laser damage threshold AR or HR coatings for laser delivery systems, to space rated optics for flight applications, we have the experience and expertise required for the most demanding environments.

coatings
  • Over One Hundred Standard AR and HR Coating Designs to Choose From
  • Specializing in High Laser-Damage Threshold Coatings
  • Quick Turnaround for Both Custom and Standard Coatings
  • Provide Custom Tooling to Hold and Mask Based Upon Your Requirements
  • Wavelength Range from: 220nm – 2500nm
  • Coating Substrate Sizes from 3 to 400 mm
  • Custom Design and Process Development Experts!

Above is a list of our standard AR and HR coating designs to choose from. We encourage you to specify any one of these coatings by selecting one of our uncoated optics, or, sharing details about your optics that need to be coated. Either way, we can accommodate and discuss your requirements including performance, price and delivery! Just complete the basic information and submit your request. Our team will follow up promptly to discuss your request and provide a quotation. Don’t have time? Simply email us direct and let us know what you need. We can do the legwork for you!

    Custom Coatings ask

  • Choose substrate

    Or tell us your requirements:
    Diameter/Size (mm)
    Thickness (mm)
    Focal length (mm)
    Material
    R1 (mm)
    R2 (mm)
  • Choose coating

    SEE ALL COATINGS CHART
  • Other information

  • Contact information

No product found ?

SUPER V COATINGS
Product number Description Extra Raw data Drawing
V33 NARROW BAND SUPER V-COATING AT 633nm R<.1% V33.csv V33.pdf
V36 NARROW BAND SUPER V-COATING AT 670nm R<.1% V36.csv V36.pdf
V40 NARROW BAND SUPER V-COATING AT 780nm R<.1% V40.csv V40.pdf
V42 NARROW BAND SUPER V-COATING AT 790nm R<.1% V42.csv V42.pdf
V43 NARROW BAND SUPER V-COATING AT 830nm R<.1% V43.csv V43.pdf
V44 NARROW BAND SUPER V-COATING AT 980nm R<.1% V44.csv V44.pdf
V45 NARROW BAND SUPER V-COATING AT 1012nm R<.1% V45.csv V45.pdf
V46 NARROW BAND SUPER V-COATING AT 1064nm R<.1% V46.csv V46.pdf
V48 NARROW BAND SUPER V-COATING AT 1310nm R<.1% V48.csv V48.pdf
V49 NARROW BAND SUPER V-COATING AT 1550nm R<.1% V49.csv V49.pdf
V COATINGS
Product number Description Extra Raw data Drawing
A04 NARROW BAND V-COATING AT 248nm R <.5% A04.csv A04.pdf
A05 NARROW BAND V-COATING AT 266nm R <.5% A05.csv A05.pdf
A06 NARROW BAND V-COATING AT 281nm R <.5% A06.csv A06.pdf
A07 NARROW BAND V-COATING AT 308nm R <.5% A07.csv A07.pdf
A08 NARROW BAND V-COATING AT 325nm R <.25% A08.csv A08.pdf
A11 NARROW BAND V-COATING AT 337nm R <.25% A11.csv A11.pdf
A15 NARROW BAND V-COATING AT 351-364nm R <.25% A15.csv A15.pdf
A16 NARROW BAND V-COATING AT 416nm R <.25% A16.csv A16.pdf
A17 NARROW BAND V-COATING AT 428-441nm R <.25% A17.csv A17.pdf
A18 NARROW BAND V-COATING AT 405nm R <.25% A18.csv A18.pdf
A19 NARROW BAND V-COATING AT 476-488nm R <.25% A19.csv A19.pdf
A22 NARROW BAND V-COATING AT 514nm R <.25% A22.csv A22.pdf
A26 NARROW BAND V-COATING AT 521-532nm R <.25% A26.csv A26.pdf
A28 NARROW BAND V-COATING AT 543nm R <.25% A28.csv A28.pdf
A30 NARROW BAND V-COATING AT 594nm R<.25% A30.csv A30.pdf
A31 NARROW BAND V-COATING AT 612nm R<.25% A31.csv A31.pdf
A33 NARROW BAND V-COATING AT 633-635nm R<.25% A33.csv A33.pdf
A36 NARROW BAND V-COATING AT 670-694nm R<.25% A36.csv A36.pdf
A39 NARROW BAND V-COATING AT 750nm R<.25% A39.csv A39.pdf
A40 NARROW BAND V-COATING AT 780nm R<.25% A40.csv A40.pdf
A41 NARROW BAND V-COATING AT 830nm R<.25% A41.csv A41.pdf
A43 NARROW BAND V-COATING AT 905nm R<.25% A43.csv A43.pdf
A44 NARROW BAND V-COATING AT 980nm R<.25% A44.csv A44.pdf
A46 NARROW BAND V-COATING AT 1047-1080nm R<.25% A46.csv A46.pdf
A47 NARROW BAND V-COATING AT 1150nm R<.25% A47.csv A47.pdf
A48 NARROW BAND V-COATING AT 1310nm R<.25% A48.csv A48.pdf
A49 NARROW BAND V-COATING AT 1540-1550nm R<.25% A49.csv A49.pdf
A50 NARROW BAND V-COATING AT 2060-2100nm R<.25% A50.csv A50.pdf
MULTIBAND AR COATINGS
Product number Description Extra Raw data Drawing
A57 MULTIBAND AR COATING AT 510-530 & 745-765NM R<.4% A57.csv A57.pdf
A77 MULTIBAND AR COATING AT 633 & 1064nm R<.25% A77.csv A77.pdf
A78 MULTIBAND AR COATING AT 266, 532 & 1064nm R<.25% A78.csv A78.pdf
A79 MULTIBAND AR COATING AT 266 & 532nm R.<0.5% & <0.25% A79.csv A79.pdf
BROADBAND AR COATINGS
Product number Description Extra Raw data Drawing
A51 BROADBAND MULTILAYER AR COATING AT 240-360nm R<.50% A51.csv A51.pdf
A52 BROADBAND MULTILAYER AR COATING AT 360-5325nm R<.60% A52.csv A52.pdf
A55 BROADBAND MULTILAYER AR COATING AT 425-675nm R<.60% A55.csv A55.pdf
M BROADBAND MULTILAYER AR COATING AT 400-700nm Tave>99.0% R M.csv M.pdf
A56 BROADBAND MULTILAYER AR COATING AT 525-975nm R< 1.0% A56.csv A56.pdf
A58 BROADBAND MULTILAYER AR COATING AT 600-900nm R<.60% A58.csv A58.pdf
IR1 BROADBAND MULTILAYER AR COATING AT 633-10640nm Tave>98.5%, R IR1.csv IR1.pdf
A59 BROADBAND MULTILAYER AR COATING AT 600-1600nm R< 2.0% A59.csv A59.pdf
A62 BROADBAND MULTILAYER AR COATING AT 670-1100nm R<.60% A62.csv A62.pdf
IR2 BROADBAND MULTILAYER AR COATING AT 750-1550nm Tave>98.5%, R IR2.csv IR2.pdf
A63 BROADBAND MULTILAYER AR COATING AT 670-1100nm R<.60% A63.csv A63.pdf
A66 BROADBAND MULTILAYER AR COATING AT 800-1200nm R<.60% A66.csv A66.pdf
A67 BROADBAND MULTILAYER AR COATING AT 1100-1600nm R<.60% A67.csv A67.pdf
A69 BROADBAND MULTILAYER AR COATING AT 2600-3000nm R<.60% A69.csv A69.pdf
MgF2 AR COATINGS
Product number Description Extra Raw data Drawing
A88 SINGLE LAYER AR COATING AT 400-700nm R<2.5% A88.csv A88.pdf
A89 SINGLE LAYER AR COATING AT 650-1250nm R<2.5% A89.csv A89.pdf
A99 SINGLE LAYER AR COATING AT 1100-1600nm R<2.5% A99.csv A99.pdf
TELECOM AR COATINGS
Product number Description Extra Raw data Drawing
A92 MULTIBAND AR COATING AT 1260-1650nm R<.4% A92.csv A92.pdf
A93 MULTIBAND AR COATING AT 1300 & 1550nm R<.25% A93.csv A93.pdf
A95 MULTIBAND AR COATING AT 1500-1630nm R<.1% A95.csv A95.pdf
LASER LINE HR COATINGS
Product number Description Extra Raw data Drawing
R04 LASER LINE HR COATING AT 248nm R>99% R04.csv R04.pdf
R05 LASER LINE HR COATING AT 266nm R>99% R05.csv R05.pdf
R06 LASER LINE HR COATING AT 281nm R>99% R06.csv R06.pdf
R07 LASER LINE HR COATING AT 308nm R>99.5% R07.csv R07.pdf
R08 LASER LINE HR COATING AT 325nm R>99.5% R08.csv R08.pdf
R09 LASER LINE HR COATING AT 335nm R>99.5% R09.csv R09.pdf
R11 LASER LINE HR COATING AT 337nm R>99.5% R11.csv R11.pdf
R12 LASER LINE HR COATING AT 345nm R>99.5% R12.csv R12.pdf
R13 LASER LINE HR COATING AT 352nm R>99.5% R13.csv R13.pdf
R14 LASER LINE HR COATING AT 355nm R>99.5% R14.csv R14.pdf
R16 LASER LINE HR COATING AT 405nm R>99.5% R16.csv R16.pdf
R26 LASER LINE HR COATING AT 532nm R>99.5% R26.csv R26.pdf
R28 LASER LINE HR COATING AT 543nm R>99.5% R28.csv R28.pdf
R30 LASER LINE HR COATING AT 594nm R>99.5% R30.csv R30.pdf
R33 LASER LINE HR COATING AT 632.8nm R>99.5% R33.csv R33.pdf
R36 LASER LINE HR COATING AT 670-694nm R>99.5% R36.csv R36.pdf
R42 LASER LINE HR COATING AT 780-905nm R>99.5% R42.csv R42.pdf
R45 LASER LINE HR COATING AT 980-1012nm R>99.5% R45.csv R45.pdf
R46 LASER LINE HR COATING AT 1064nm R>99.5% R46.csv R46.pdf
R48 LASER LINE HR COATING AT 1550nm R>99.5% R48.csv R48.pdf
R50 LASER LINE HR COATING AT 2060-2100nm R>99.5% R50.csv R50.pdf
METAL HR COATINGS
Product number Description Extra Raw data Drawing
R77 EAGR- ENHANCED SILVER REFL COAT WL 400-2000 R>97.5%ave R77.csv R77.pdf
R78 PAGR -PROTECTED SILVER 400-2000 R>96.0%ave R78.csv R78.pdf
R79 PAGR- PROTECTED GOLD 650-IR R>96.0%ave R79.csv R79.pdf
R87 EALR-UV ENHANCED ALUM REFL 250-400 R>85.0%ave R87.csv R87.pdf
R88 EALR- ENHANCED ALUM REFL 400-700 R>94.0%ave R88.csv R88.pdf
R89 PALR- PROT. ALUM REFL 400-2000 R>88.0%ave R89.csv R89.pdf
BROADBAND HR COATINGS
Product number Description Extra Raw data Drawing
R52 BROADBAND HR COATING AT 420-480nm R>99.5%ave @45deg R52.csv R52.pdf
R53 BROADBAND HR COATING AT 480-540nm R>99.5%ave @45deg R53.csv R53.pdf
R54 BROADBAND HR COATING AT 630-700nm R>99.5%ave @45deg R54.csv R54.pdf
R55 BROADBAND HR COATING AT 425-675nm R>99.0%ave @45deg R55.csv R55.pdf
R56 BROADBAND HR COATING AT 420-540nm R>99.0%ave @45deg R56.csv R56.pdf
R57 BROADBAND HR COATING AT 540-650nm R>99.0%ave @45deg R57.csv R57.pdf
R58 BROADBAND HR COATING AT 600-900nm R>99.0%ave @45deg R58.csv R58.pdf
R59 BROADBAND HR COATING AT 770-830nm R>99.5%ave @45deg R59.csv R59.pdf
R60 BROADBAND HR COATING AT 730-900nm R>99.0%ave @45deg R60.csv R60.pdf
R61 BROADBAND HR COATING AT 570-640nm R>99.5%ave @45deg R61.csv R61.pdf
R62 BROADBAND HR COATING AT 700-1000nm R>99.0%ave @45deg R62.csv R62.pdf
R66 BROADBAND HR COATING AT 800-1200nm R>99.0%ave @45deg R66.csv R66.pdf
R67 BROADBAND HR COATING AT 1100-1600nm R>99.0%ave @45deg R67.csv R67.pdf

Coatings

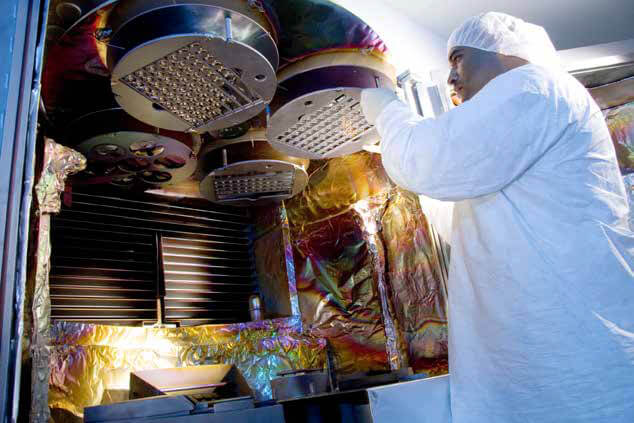

  • Ion Assisted Deposition (IAD) process
  • Advance Plasma Source (APS) plasma-ion assisted Deposition
  • Anti-Reflection Coatings
  • High Reflection Coatings
  • Coatings on Optical Fiber

OptoSigma supplies a wide selection of optical thin film coatings. These coatings are often provided as part of the optical component but they may also be ordered separately to be applied to an uncoated element. For example, it is possible to apply an AntiReflection coating to any uncoated lenses, windows or optical fibers. Also reflecting coatings may be applied to uncoated substrates to form mirrors or partial reflectors. To make this process simple we have listed some of our most common standard coatings. To order you simply append the coating suffix to the base part number and specify the surfaces to be coated. If you don’t find the exact coating you need please ask us to provide you with a custom solution. Our coating engineers will use the latest design software and production techniques to provide you with the coating you require.

Optical thin film coatings are used to control the intensity, wavelength selection and polarization characteristics of incident electro-magnetic radiation. For laser and precision optical applications the quality of the coating is critical. Coatings must be precise as well as durable and damage resistant. OptoSigma’s advanced IAD and advanced plasm source (APS) coating facility in Santa Ana, California is able to supply high performance laser coatings covering the optical spectrum from 190 to 3000nm.

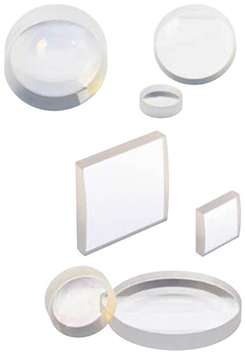

Anti-Reflection Coatings

  • Lenses
  • Windows
  • Optical Fiber Endfacesr

We offer a wide range of Anti-Reflection coatings which may be applied to any of our glass or fused silica lenses or windows to reduce reflection losses. Through use of our Ion Assisted Deposition (IAD) process we also specialize in AR coatings on optical fiber endfaces. Low temperature IAD coatings may be applied to most fiber endface terminations. Pre and post coating inspection is performed in our dedicated facility to ensure high quality. Our “Super-V” Coatings represent the ultimate in low reflection coatings (R<0.1%) for narrowband applications. We also offer laser line V Coatings, Broadband Multilayer AR Coatings, Multiband AR Coatings, Telecom AR Coatings and Single Layer AR MgF2 Coatings. Standard coatings may be ordered by simply appending a coating suffix to the product number and specifying the number of sides to be coated. For more complex requirements we suggest that you call - our applications engineers will be pleased to advise you on the best coating for your needs. Standard Anti-Reflection coatings are listed in the following table.

Specifications & Tolerances

On BK-7 Substrates: Super V: R<0.1% per surface at designated wavelength V Coating: ( ­λ<325nm) R<0.5% per surface at designated wavelength V Coating: ( λ>325nm) R<0.25% per surface at designated wavelength Multiband AR: R<0.25% per surface at designated wavelengths Broadband AR: R<0.6% per surface over the designated range MgF2 AR: R<2.5% per surface over the designated range Durability and Laser damage threshold depend on the substrate so please see the later sections of this catalog for these specifications. The curves on the following pages show typical single surface reflectance for each of the specified coating types.

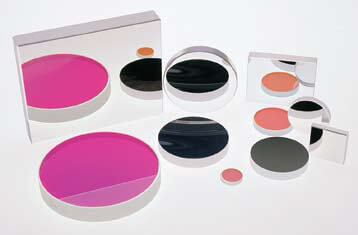

High Reflection Coatings

We offer narrowband and broadband dielectric high reflecting coatings as well as a range of metal coatings. Laser Line HR Coatings are offered for all major laser wavelengths in the range of 193 to 2100nm. Broadband HR Coatings are offered for a selection of bandwidths. They provide a very high degree of spectrally neutral reflection and represent the ultimate in optical mirror coatings. Most of the coatings listed are for use at 45 degrees angle of incidence, but we do offer a selection of Broadband, Normal Incidence HR Coatings. Other normal incidence coatings can be provided on special request.

Specifications & Tolerances

  • Narrowband Laser HR: ( λ=193nm) Rav >95% for 45° incidence at designated wavelength
  • Narrowband Laser HR: ( λ>193 and <300nm) Rav >95% for 45° incidence at designated wavelength
  • Broadband HR: (45°AOI) Rav>99.0% for 45° incidence over designated bandwidth
  • Durability and Laser damage threshold depend on the substrate so please see the product sections of this catalog for these specifications
  • The curves show typical average reflectivity for a selection of our standard coatings.

Custom Optical Coatings

  • High, partial, and anti-reflection
  • Edge, notch, band pass filters
  • Plate and cube beam splitters
  • Wavelength ranges 190 – 2500nm
  • Sizes up to 10 x 10 inches
  • Various angle of incidence and polarization requirements
  • OptoSigma and customer furnished materials
  • Optical glasses, crystals, polymers, fibers, fiber assemblies, and cemented substrates

Here at OptoSigma we specialize in custom optical coatings from the ultra-violet to the near infrared. Every day we provide a variety of custom coatings from simple modifications of the catalog specifications to entirely specialized designs.

If the custom coating design is straightforward, we will perform a single test run immediately before the production run. For more complicated designs, a development process will be needed to establish the specifications which can be met in a production environment. This could potentially include multiple test runs, design modifications, and data analysis. We work closely with our customers through every step in the process to determine which specifications are suitable for both their applications and a manufacturing environment. It is in the best interest of OptoSigma and our customers to get through the development stage and on to production as quickly as possible. Once production is reached, the specialized processes and inspection are documented and established to ensure ongoing success.

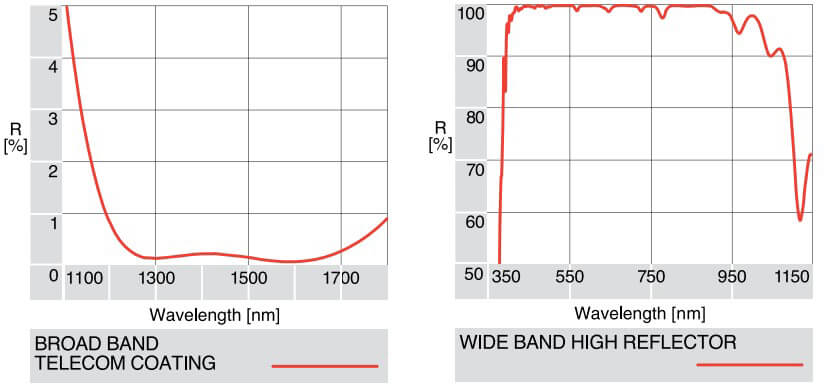

Broadband All Dielectric


All dielectric multi-layer coatings are much more durable and of higher optical performance that those which involve metals. These can be offered with almost zero absorption and reflectivities greater than 99%. The all dielectric design is limited to a specific spectral bandwidth around the center design wavelength. Large bandwidth requirements demand the use of high precision coatings. These types of coatings are performed regularly at OptoSigma. Two actual spectral curves demonstrating this type of coating can be seen in the following plots.

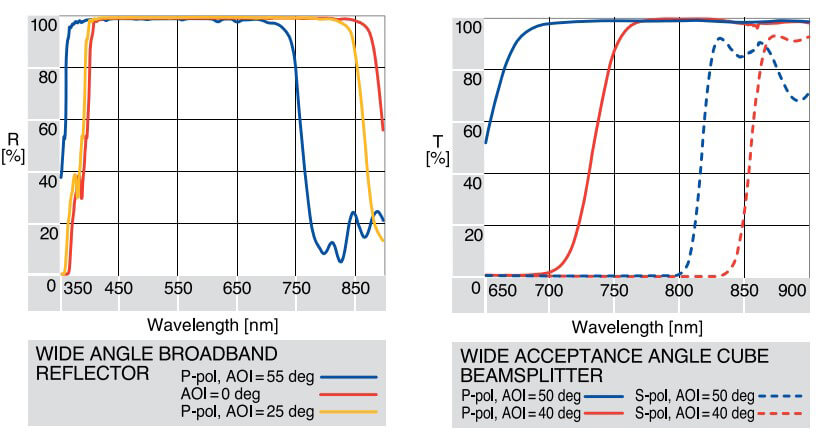

Wide Angle

Particular applications demand the use of all dielectric coatings due to their durability and superb optical performance. The all dielectric design is however highly sensitive to angular variation, which can create problems for broadband applications involving large angular variations, such as those with non-collimated beams or rotating substrates. To accommodate the need for angular variation, a coating bandwidth substantially greater than the source bandwidth is required. This requires a highly precise all dielectric coating. Two actual spectral curves demonstrating our capabilities follow.

Anti-Reflection Specifications & Tolerances

Substrate material: BK7 Grade A Angle of incidence: 0 degrees / %R <0.3: 1250-1650nm

High Reflector Specifications & Tolerances

Substrate material: BK7 Grade A Angle of incidence: 0 degrees / %R ave >97.0: 400-1000nm

Reflector Specifications & Tolerances

Substrate material: BK7 Grade A Angle of incidence: 40±15degrees / %R ave >98.0: 450-650nm

Cube Specifications & Tolerances

Substrate material: BK7 Grade A Angle of incidence: 45±5degrees %T p >98: 780nm / %T s <1.0: 780nm

Filters

Many standard types of custom filters, such as short wave pass, long wave pass, multiple notch, and band pass filters are manufactured at OptoSigma. In addition, a variety of highly customized coatings which do not fall into a general category are produced regularly at OptoSigma. Our engineers design to the specific targets established by our customers’ needs. The designs are then tested in our chambers and we work closely with our customers to arrive at a final manufacturable coating. Two actual spectral curves demonstrating our capabilities follow.

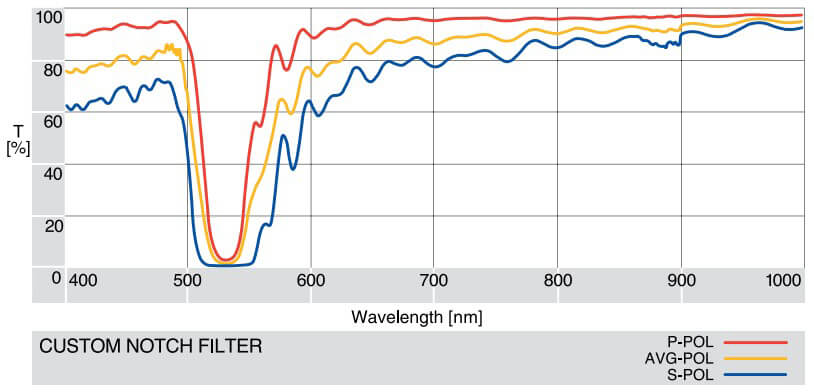

Specifications & Tolerances

Substrate material: BK7 Grade A Angle of incidence: 45 degrees
%T <3.0: 532nm %T >85: 488, 632.8, and 1064nm

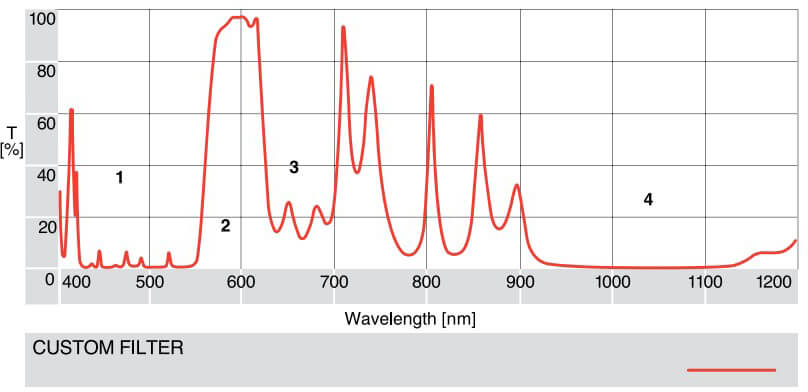

Specifications & Tolerances

Substrate material: BK7 Grade A Angle of incidence: 0 degrees Region 1: %T <5.0: 425-525nm
Region 2: %T >90: 590nm Region 3: %T = 20±10: 670nm Region 4: %R >99.0: 1064nm
