OUCI Modular Microscopes

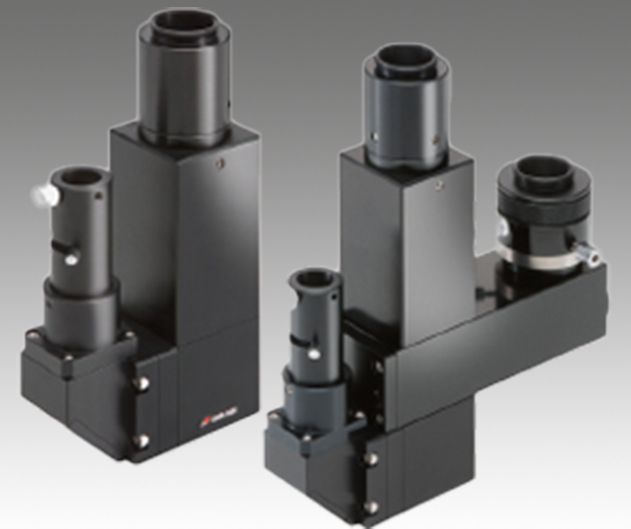

OptoSigma's OUCI microscope bodies have a modular design allowing them to be configured with specific features and magnification levels and provide high-resolution observation for a variety of applications. The modular design also means it can be set up like a standard upright microscope or integrated into a larger optical system in any orientation. The infinite conjugate design allows the microscope body to be used with standard infinity-corrected objectives from OptoSigma or other manufacturers. The OUCI body is available in four different versions, each one optimized for a different function or spectral region (NUV, VIS, or NIR). All OUCIs, regardless of the wavelength optimization, can still function in the visible wavelength region. The fourth version provides an additional coaxial beam path that can be used for laser induction or another observation camera.
A fully functional OUCI system can be easily assembled using off-the-shelf catalog components.
Note: For metric translation stages only, 4ea. of the AND-M6-M4 thread adaptors can be used in place of the adaptor plate to mount the OUCI Modular Microscope body to a translation stage as shown here.
OUCI Modular Component Options
Modular components include selections of microscope bodies, objective lenses, light sources, digital cameras, motorized turrets, and mounting adaptors.
-
Turrets for OUCI MicroscopeSKU : TURRET-OUCI 0These turrets (electric revolver/lens switching slider) can be connected to OUCI family microscope bodies. Learn More
-
Objective lenses for NIR rangeSKU : OUCI-OBJECTIVES-NIR 0This is a high NA infinity corrected objective lens for laser processing (femtosecond laser and fundamental of YAG laser). You can also observe the laser beam coaxially with a laser processed surface that is designed to reduce the aberration of the visible wavelength. Learn More
-
Objective lenses for NUV rangeSKU : OUCI-OBJECTIVES-NUV 0This objective lens can be used for laser machining using pulsed laser of THG (355nm) YAG laser. Chromatic aberration is suppressed in both the visible and UV laser wavelength, achieving a high transmittance. Learn More
-
Objective lenses for visible rangeSKU : OUCI-OBJECTIVES-VIS 0With its long working infinity correction function; this objective lens can be used for a laser system and coaxial observation. The objective will allow user to focus a visible laser or microscopic observation of objects from a distance. Learn More
-
LED Spot IlluminationSKU : SLSI 0LED lights for coaxial epi-illumination and spot illumination. Learn More
-
Color CMOS CamerasSKU : SK - SKDCE - STC 0OptoSigma offers both analog and digital camera modules for use with our microscope systems. The analog camera is best suited for remote observation owing to the longer cable lengths between the camera and a monitor. The connection interface is BNC. With the digital cameras, it is easy to process and save images by installing the viewer software that comes with the camera on a PC. It is available in pixel formats from 2 to 20 MP, according to the required resolution. The connection interface is USB 3.0. Learn More
-
Dichroic Cube for OUCI Laser InductionSKU : DIMC 0Allows the induction of a laser beam into the optical path of the OUCI microscope body products. Learn More
-
C-Mount Camera AlignerSKU : CACM 0This is an adjustable adapter for attaching a C-mount camera to OUCI or Zoom microscope bodies. It allows the camera position to be adjusted perpendicular to the optical axis. It can also be used with the dichroic case to adjust the focal position and centering of the laser beam entering the dichroic case. Learn More
