Gimbal Mirror Holders (Micrometer Type)

Gimbal Mirror Holders (Micrometer Type)

SKU : MHAN-M

In stock
SKU
MHAN-M

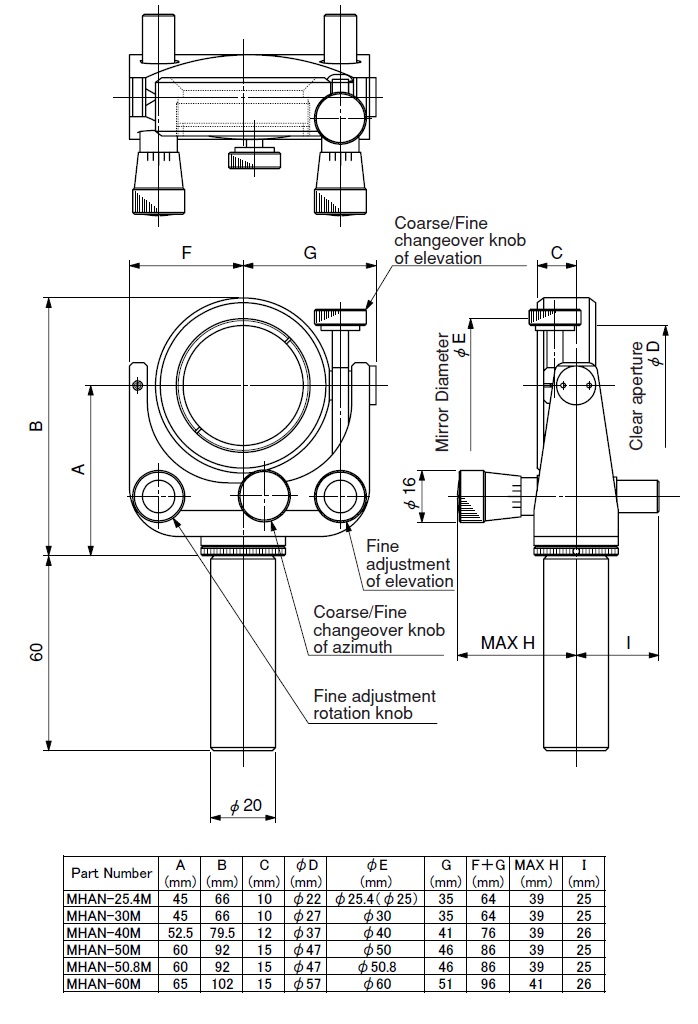

Gimballed mirror mounts for arbitrarily adjusting the mirror angle with its reflection surface is aligned at rotation center. Useful to manipulate laser beam path or change direction of reflected beam.
Name Diameter Delivery Price Add to cart
Gimballed Mirror Holder for 50mm Optic with Micrometer and Rod
MHAN-50M
50mm
5-10 days
$280.00
Gimballed Mirror Holder
MHAN-50.8M
5-10 days
$280.00

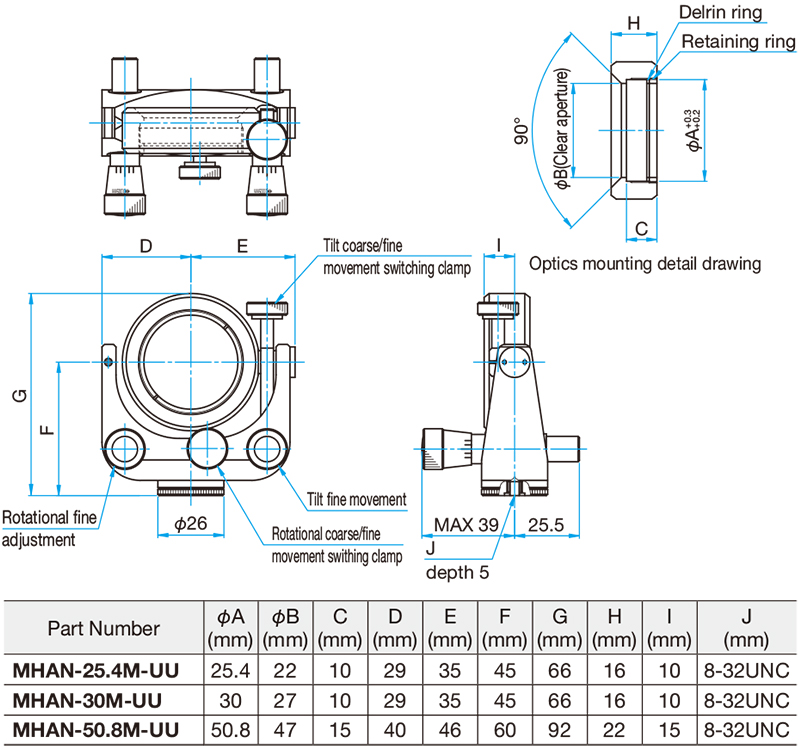

Gimballed Mirror Holder Inch for 50.8mm Optic with Micrometer
MHAN-50.8M-UU
in stock
$270.00

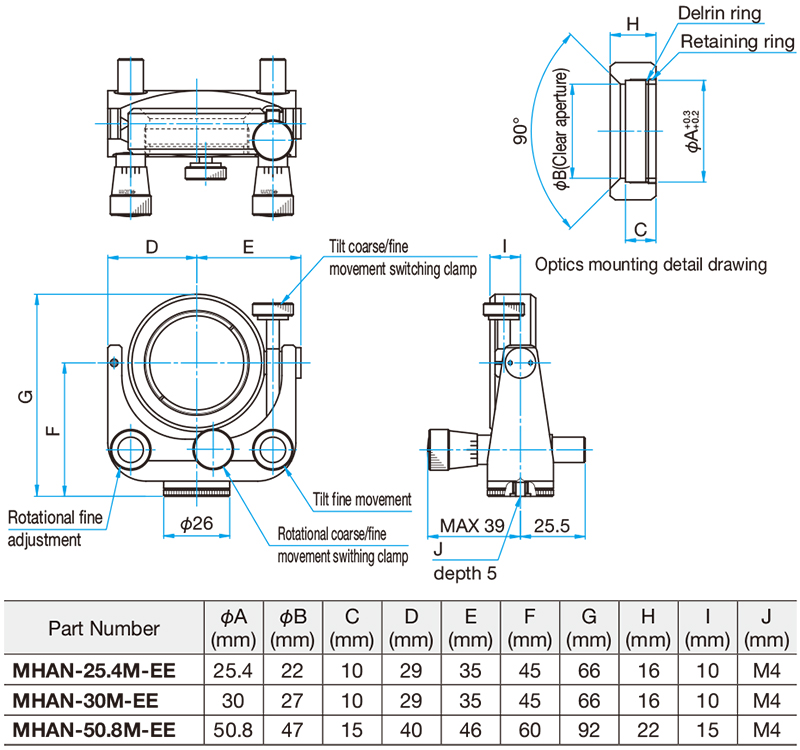

Gimballed Mirror Holder Metric for 50.8mm Optic with Micrometer
MHAN-50.8M-EE
50.8mm
3-6 weeks
$270.00
Gimballed Mirror Holder for 60mm Optic with Micrometer and Rod
MHAN-60M
60mm
5-10 days
$340.00
Gimballed Mirror Holder
MHAN-25.4M
3-6 weeks
$250.00
Gimballed Mirror Holder Inch for 25.4mm Optic with Micrometer
MHAN-25.4M-UU
in stock
$240.00
Gimballed Mirror Holder Metric for 25.4mm Optic with Micrometer
MHAN-25.4M-EE
25.4mm
3-6 weeks
$240.00
Gimballed Mirror Holder for 40mm Optic with Micrometer and Rod
MHAN-40M
40mm
3-6 weeks
$270.00
Gimballed Mirror Holder
MHAN-30M
5-10 days
$250.00
Gimballed Mirror Holder Inch for 30mm Optic with Micrometer
MHAN-30M-UU
in stock
$240.00
Gimballed Mirror Holder Metric for 30mm Optic with Micrometer
MHAN-30M-EE
in stock
$240.00

You must be logged in to ask questions

◦IGimball mechanism with coarse/fine switching knob enables fine adjustment of mirror at arbitrary angle.
◦IMirror is hold with retaining ring screw from rear side. A point of reflection at front side of mirror is unchanged in regard to orientation and thickness of mirror.
◦IMicrometer head is used for realizing easy operation and smooth angle adjustment.
