OptoSigma's Modular Zoom Microscopes are designed for high-resolution observation and feature continuously variable (rather than stepped) magnification.  The modular design means it can be set up like a standard upright microscope or integrated into a larger optical system in any orientation.  The zoom feature can be either manual or motorized.  Two types of zoom microscopes are available.  The first type, SIZM,  has an infinite conjugate design so it can be used with standard infinity-corrected objectives from OptoSigma or other manufacturers. A 50X objective, for example, will provide continuous magnification from 12X to 165X.  The second type, SZL, is specifically designed for use over long working distances, up to 500mm. This makes them particularly useful for observations within inaccessible locations such as high-temperature furnaces or vacuum chambers.  These microscopes are modular, allowing users to select the exact features and options needed for their application.  Additional modular components include objective lenses, light sources, digital cameras, motorized zoom controllers, and mounting adaptors.
  • A modular microscope system optimized for high-resolution imaging
  • Diffraction limited resolution at all magnifications
  • Infinite conjugate or long working distance versions
  • Objective magnifications to 100X
  • Zoom magnification to 12X
  • Manual or motor-controlled zoom
  • Maintains focus over full zoom range
  • Built-in coaxial illumination port
  • Modular components for user configuration



Application Examples

The zoom function provides continuously-variable magnification without losing focus at any magnification.

With the SZL Long Working Distance body, shown on the left, observations can be made at distances up to 500mm

With the SIZM Infinite Conjugate Zoom body, for example, a 50X infinity-corrected objective provides continuous magnification from 12X to 165X.







Find Out More

  • Manual Long Working-Distance Zoom Microscope


  • Motorized Long Working-Distance Zoom Microscope


  • Infinite Conjugate Motorized Zoom Microscope

    Description
    OptoSigma's infinite Conjugate Zoom Microscopes are designed for high-resolution observation and feature continuously variable (rather than stepped) magnification.  The modular design means it can be set up like a standard upright microscope or integrated into a larger optical system in any orientation.  The zoom feature is motorized but can also be operated manually.  The infinite conjugate design allows this microscope body to be used with standard infinity-corrected objectives from OptoSigma or other manufacturers. A 50X objective, for example, will provide continuous magnification from 12X to 165X.  These microscopes are modular, allowing users to select the exact features and options needed for their application.  Additional modular components include objective lenses, light sources, digital cameras, motorized zoom controllers, and mounting adaptors.



    Specifications for SIZM by Objective Magnification

    Objective Magnification
    SIZM Zoom Range
    Continuous Magnification Range
    Resolution Range
    FOV Diameter Range

    5X

    1 - 14X

    1 - 16X

    10.6 - 2.6μm

    5.0 - 0.5mm

    10X

    1 - 14X

    2 - 33X

    5.3 - 1.1μm

    2.5 - 0.2mm

    20X

    1 - 14X

    5 - 66X

    2.7 - 0.8μm

    1.3 - 0.1mm

    50X

    1 - 14X

    12 - 165X

    1.1 - 0.6μm

    0.5 - 0.0mm

    100X

    1 - 14X

    24 - 329X

    0.5 - 0.4μm

    0.3 - 0.0mm

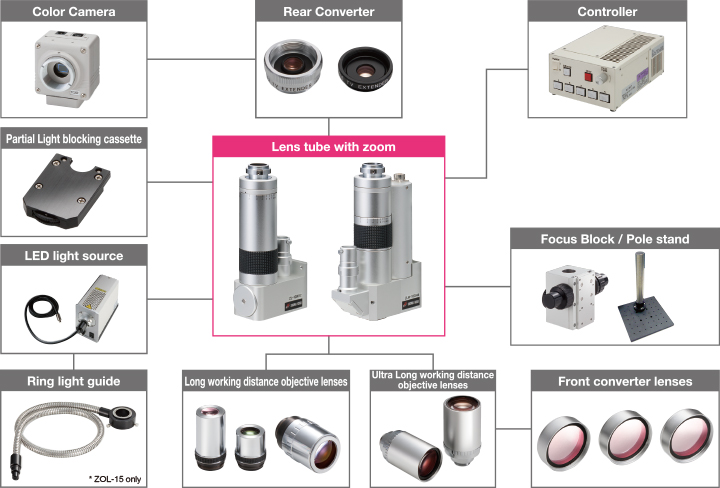

    SIZM Configuration Example
