High Stability Fixed Lens Mounts

LHF

More about
High Stability Fixed Lens Mounts
In stock
SKU
LHF
It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Diameter Mounting Thread Delivery Price Add to cart
i
Fixed Lens Holder with 8-32UNC Threads for 10mm Diameter Optic
LHF-10-UU 		10mm 8-32UNC
6-12 weeks
$29.42
Compatible Optics Diameter φA φ10mm
Compatible Optics Thickness 3 - 6mm
Clear Aperture φB φ7mm
C M10.85 P0.75
Optical Axis Height D 15mm
E 4mm
φG φ32mm
F 12mm
i
Fixed Lens Holder with M4 Threads for 15mm Diameter Optic
LHF-15-EE 		15mm M4
6-12 weeks
$29.42
Compatible Optics Diameter φA φ15mm
Compatible Optics Thickness 3 - 10mm
Clear Aperture φB φ12mm
C M15.85 P0.75
Optical Axis Height D 20mm
E 5mm
φG φ42mm
F 16mm
i
Fixed Lens Holder with 8-32UNC Threads for 20mm Diameter Optic
LHF-20-UU 		φ20mm 8-32UNC
in stock
$29.42
Compatible Optics Diameter φA φ20mm
Compatible Optics Thickness 3 - 12mm
Clear Aperture φB φ17mm
C M20.85 P0.75
Optical Axis Height D 20mm
E 7mm
φG φ42mm
F 18mm
i
Fixed Lens Holder with M4 Threads for 30mm Diameter Optic
LHF-30-EE 		30mm M4
6-12 weeks
$34.00
Compatible Optics Diameter φA φ30mm
Compatible Optics Thickness 3 - 6mm
Clear Aperture φB φ26mm
C M30.85 P0.75
Optical Axis Height D 25mm
E 4mm
φG φ52mm
F 12mm
i
Fixed Lens Holder with 8-32UNC Threads for 38.1mm Diameter Optic
LHF-38.1-UU 		38.1mm 8-32UNC
in stock
$37.00
Compatible Optics Diameter φA φ38.1mm
Compatible Optics Thickness 3 - 12mm
Clear Aperture φB φ34mm
C M38.95 P0.75
Optical Axis Height D 30mm
E 7mm
φG φ62mm
F 18mm
i
Fixed Lens Holder with M4 Threads for 50mm Diameter Optic
LHF-50-EE 		50mm M4
6-12 weeks
$42.00
Compatible Optics Diameter φA φ50mm
Compatible Optics Thickness 3 - 12mm
Clear Aperture φB φ45mm
C M50.85 P0.75
Optical Axis Height D 35mm
E 7mm
φG φ72mm
F 18mm
i
Fixed Lens Holder with 8-32UNC Threads for 50.8mm Diameter Optic
LHF-50.8-UU 		50.8mm 8-32UNC
in stock
$50.00
Compatible Optics Diameter φA φ50.8mm
Compatible Optics Thickness 3 - 12mm
Clear Aperture φB φ46mm
C M51.65 P0.75
Optical Axis Height D 35mm
E 7mm
φG φ72mm
F 18mm
i
Fixed Lens Holder with M4 Threads for 63.5mm Diameter Optic
LHF-63.5-EE 		63.5mm M4
in stock
$53.00
Compatible Optics Diameter φA φ63.5mm
Compatible Optics Thickness 3 - 15mm
Clear Aperture φB φ56.5mm
C M64.6 P1.0
Optical Axis Height D 42.5mm
E 8.5mm
φG φ87mm
F 21mm
i
Fixed Lens Holder with Rod for 50mm Diameter Thick Optic
LHF-50A 		50mm M6
in stock
$53.00
Compatible Optics Diameter φA φ50mm
Compatible Optics ThicHness 4 - 18mm
Clear Aperture φB φ45mm
C M50.85 P0.75
Optical Axis Height D 35mm
E 10mm
φG φ72mm
F 24mm
i
Fixed Lens Holder with 8-32UNC Threads for 76.2mm Diameter Optic
LHF-76.2-UU 		76.2mm 8-32UNC
in stock
$63.00
Compatible Optics Diameter φA φ76.2mm
Compatible Optics Thickness 3 - 15mm
Clear Aperture φB φ70mm
C M77.3 P1.0
Optical Axis Height D 50mm
E 8.5mm
φG φ102mm
F 21mm
i
Fixed Lens Holder for 80mm Diameter Optic
LHF-80A-N 		80mm M6
2-3 weeks
$60.00
Compatible Optics Diameter φA φ80.4mm
Compatible Optics Thickness 4 - 23mm
Clear Aperture φB φ73mm
C M81.1 P1
Optical Axis Height D 50mm
E 12.5mm
φG φ102mm
F 29mm
i
Fixed Lens Holder with M4 Threads for 100mm Diameter Optic
LHF-100-EE 		100mm M4
6-12 weeks
$70.00
Compatible Optics Diameter φA φ100mm
Compatible Optics Thickness 4 -18mm
Clear Aperture φB φ93mm
C M101.1 P1
Optical Axis Height D 60mm
E 11mm
φG φ122mm
F 26mm
i
Fixed Lens Holder for 150mm Diameter Optic
LHF-150-N 		150mm M6
2-3 weeks
$198.00
Compatible Optics Diameter φA φ150mm
Compatible Optics Thickness 5 - 20mm
Clear Aperture φB φ142mm
C M151.1 P1
Optical Axis Height D 85mm
E 12mm
φG φ171mm
F 28mm
i
Fixed Lens Holder with 8-32UNC Threads for 101.6mm Diameter Optic
LHF-101.6-UU 		101.6mm 8-32UNC
6-12 weeks
$79.00
Compatible Optics Diameter φA φ101.6mm
Compatible Optics Thickness 4 -18mm
Clear Aperture φB φ94mm
C M102.7 P1
Optical Axis Height D 60mm
E 12mm
φG φ122mm
F 26mm
i
Fixed Lens Holder with M4 Threads for 12.7mm Diameter Optic
LHF-12.7-EE 		12.7mm M4
in stock
$29.42
Compatible Optics Diameter φA φ12.7mm
Compatible Optics Thickness 3 - 6mm
Clear Aperture φB φ10mm
C M13.55 P0.75
Optical Axis Height D 15mm
E 4mm
φG φ32mm
F 16mm
i
Fixed Lens Holder with 8-32UNC Threads for 15mm Diameter Optic
LHF-15-UU 		15mm 8-32UNC
in stock
$29.42
Compatible Optics Diameter φA φ15mm
Compatible Optics Thickness 3 - 10mm
Clear Aperture φB φ12mm
C M15.85 P0.75
Optical Axis Height D 20mm
E 5mm
φG φ42mm
F 16mm
i
Fixed Lens Holder with M4 Threads for 25.4mm Diameter Optic
LHF-25.4-EE 		25.4mm M4
6-12 weeks
$34.00
Compatible Optics Diameter φA φ25.4mm
Compatible Optics Thickness 3 - 6mm
Clear Aperture φB φ22mm
C M26.25 P0.75
Optical Axis Height C 25mm
E 4mm
φG φ52mm
F 12mm
i
Fixed Lens Holder with 8-32UNC Threads for 30mm Diameter Optic
LHF-30-UU 		30mm 8-32UNC
6-12 weeks
$34.00
Compatible Optics Diameter φA φ30mm
Compatible Optics Thickness 3 - 6mm
Clear Aperture φB φ26mm
C M30.85 P0.75
Optical Axis Height D 25mm
E 4mm
φG φ52mm
F 12mm
i
Fixed Lens Holder with M4 Threads for 40mm Diameter Optic
LHF-40-EE 		40mm M4
6-12 weeks
$37.00
Compatible Optics Diameter φA φ40mm
Compatible Optics Thickness 3 - 12mm
Clear Aperture φB φ36mm
C M40.85 P0.75
Optical Axis Height D 30mm
E 7mm
φG φ62mm
F 18mm
i
Fixed Lens Holder with 8-32UNC Threads for 50mm Diameter Optic
LHF-50-UU 		50mm 8-32UNC
in stock
$42.00
Compatible Optics Diameter φA φ50mm
Compatible Optics Thickness 3 - 12mm
Clear Aperture φB φ45mm
C M50.85 P0.75
Optical Axis Height D 35mm
E 7mm
φG φ72mm
F 18mm
i
Fixed Lens Holder with M4 Threads for 60mm Diameter Optic
LHF-60-EE 		60mm M4
6-12 weeks
$53.00
Compatible Optics Diameter φA φ60mm
Compatible Optics Thickness 3 - 15mm
Clear Aperture φB φ55mm
C M60.85 P0.75
Optical Axis Height D 40mm
E 8.5mm
φG φ82mm
F 21mm
i

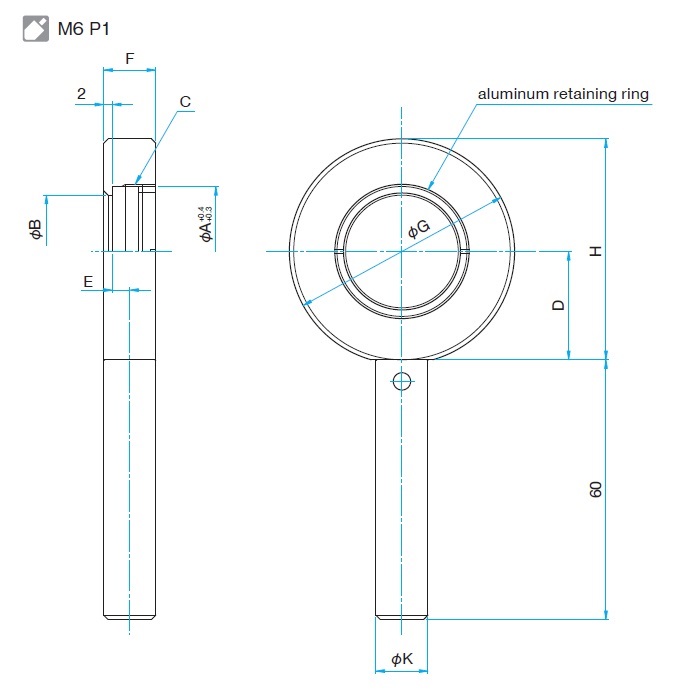

Fixed Lens Holder with Rod for 25mm Diameter Optic
LHF-25 		25mm M6
2 weeks
$38.00
Compatible Optics Diameter φA φ25mm
Compatible Optics ThicHness 3 - 10mm
Clear Aperture φB φ21mm
C M26.25 P0.75
Optical Axis Height D 25mm
E 6mm
φG φ52mm
F 16mm
φH φ12mm
i
Fixed Lens Holder with 8-32UNC Threads for 63.5mm Diameter Optic
LHF-63.5-UU 		63.5mm 8-32UNC
in stock
$53.00
Compatible Optics Diameter φA φ63.5mm
Compatible Optics Thickness 3 - 15mm
Clear Aperture φB φ56.5mm
C M64.6 P1.0
Optical Axis Height D 42.5mm
E 8.5mm
φG φ87mm
F 21mm
i
Fixed Lens Holder with Rod for 52mm Diameter Optic
LHF-52 		52mm M6
2 weeks
$56.00
Compatible Optics Diameter φA φ52mm
Compatible Optics ThicHness 3 - 15mm
Clear Aperture φB φ47mm
C M52.85 P0.75
Optical Axis Height D 40mm
E 8.5mm
φG φ82mm
F 21mm
φH φ12mm
i
Fixed Lens Holder with M4 Threads for 80mm Diameter Optic
LHF-80-EE 		80mm M4
6-12 weeks
$56.00
Compatible Optics Diameter φA φ80mm
Compatible Optics Thickness 3 - 15mm
Clear Aperture φB φ73mm
C M81.1 P1
Optical Axis Height D 50mm
E 8.5mm
φG φ102mm
F 21mm
i
Fixed Lens Holder for 100mm Diameter Thick Optic
LHF-100A-N 		100mm M6
in stock
$70.00
Compatible Optics Diameter φA φ100mm
Compatible Optics Thickness 4 - 22mm
Clear Aperture φB φ93mm
C M101.1 P1
Optical Axis Height D 60mm
E 13mm
φG φ122mm
F 30mm
i
Fixed Lens Holder with 8-32UNC Threads for 100mm Diameter Optic
LHF-100-UU 		100mm 8-32UNC
6-12 weeks
$70.00
Compatible Optics Diameter φA φ100mm
Compatible Optics Thickness 4 -18mm
Clear Aperture φB φ93mm
C M101.1 P1
Optical Axis Height D 60mm
E 11mm
φG φ122mm
F 26mm
i
Fixed Lens Holder with M4 Threads for 10mm Optic
LHF-10-EE 		10mm M4
in stock
$29.42
Compatible Optics Diameter φA φ10mm
Compatible Optics Thickness 3 - 6mm
Clear Aperture φB φ7mm
C M10.85 P0.75
Optical Axis Height D 15mm
E 4mm
φG φ32mm
F 12mm
i
Fixed Lens Holder with 8-32UNC Threads for 12.7mm Diameter Optic
LHF-12.7-UU 		12.7mm 8-32UNC
in stock
$29.42
Compatible Optics Diameter φA φ12.7mm
Compatible Optics Thickness 3 - 6mm
Clear Aperture φB φ10mm
C M13.55 P0.75
Optical Axis Height D 15mm
E 4mm
φG φ32mm
F 16mmC
i
Fixed Lens Holder with M4 Threads for 20mm Diameter Optic
LHF-20-EE 		φ20mm M4
6-12 weeks
$29.42
Compatible Optics Diameter φA φ20mm
Compatible Optics Thickness 3 - 12mm
Clear Aperture φB φ17mm
C M20.85 P0.75
Optical Axis Height D 20mm
E 7mm
φG φ42mm
F 18mm
i
Fixed Lens Holder with 8-32UNC Threads for 25.4mm Diameter Optic
LHF-25.4-UU 		25.4mm 8-32UNC
in stock
$34.00
Compatible Optics Diameter φA φ25.4mm
Compatible Optics Thickness 3 - 6mm
Clear Aperture φB φ22mm
C M26.25 P0.75
Optical Axis Height D 25mm
E 4mm
φG φ52mm
F 12mm
i
Fixed Lens Holder with M4 Threads for 38.1mm Diameter Optic
LHF-38.1-EE 		38.1mm M4
in stock
$37.00
Compatible Optics Diameter φA φ38.1mm
Compatible Optics Thickness 3 - 12mm
Clear Aperture φB φ34mm
C M38.95 P0.75
Optical Axis Height D 30mm
E 7mm
φG φ62mm
F 18mm
i
Fixed Lens Holder with 8-32UNC Threads for 40mm Diameter Optic
LHF-40-UU 		40mm 8-32UNC
in stock
$37.00
Compatible Optics Diameter φA φ40mm
Compatible Optics Thickness 3 - 12mm
Clear Aperture φB φ36mm
C M40.85 P0.75
Optical Axis Height D 30mm
E 7mm
φG φ62mm
F 18mm
i
Fixed Lens Holder with M4 Threads for 50.8mm Diameter Optic
LHF-50.8-EE 		50.8mm M4
6-12 weeks
$50.00
Compatible Optics Diameter φA φ50.8mm
Compatible Optics Thickness 3 - 12mm
Clear Aperture φB φ46mm
C M51.65 P0.75
Optical Axis Height D 35mm
E 7mm
φG φ72mm
F 18mm
i
Fixed Lens Holder with 8-32UNC Threads for 60mm Diameter Optic
LHF-60-UU 		60mm 8-32UNC
in stock
$53.00
Compatible Optics Diameter φA φ60mm
Compatible Optics Thickness 3 - 15mm
Clear Aperture φB φ55mm
C M60.85 P0.75
Optical Axis Height D 40mm
E 8.5mm
φG φ82mm
F 21mm
i
Fixed Lens Holder with Rod for 30mm Diameter Thick Optic
LHF-30A 		30mm M6
2 weeks
$40.00
Compatible Optics Diameter φA φ30mm
Compatible Optics ThicHness 3 - 12mm
Clear Aperture φB φ26mm
C M30.85 P0.75
Optical Axis Height D 25mm
E 7mm
φG φ52mm
F 18mm
φH φ12mm
i
Fixed Lens Holder with M4 Threads for 76.2mm Diameter Optic
LHF-76.2-EE 		76.2mm M4
6-12 weeks
$63.00
Compatible Optics Diameter φA φ76.2mm
Compatible Optics Thickness 3 - 15mm
Clear Aperture φB φ70mm
C M77.3 P1.0
Optical Axis Height D 50mm
E 8.5mm
φG φ102mm
F 21mm
i
Fixed Lens Holder with Rod for 60mm Diameter Thick Optic
LHF-60A 		60mm M6
2 weeks
$57.00
Compatible Optics Diameter φA φ60mm
Compatible Optics ThicHness 4 - 21mm
Clear Aperture φB φ55mm
C M60.85 P0.75
Optical Axis Height D 40mm
E 11.5mm
φG φ82mm
F 27mm
φH φ12mm
i
Fixed Lens Holder with 8-32UNC Threads for 80mm Diameter Optic
LHF-80-UU 		80mm 8-32UNC
6-12 weeks
$56.00
Compatible Optics Diameter φA φ80mm
Compatible Optics Thickness 3 - 15mm
Clear Aperture φB φ73mm
C M81.1 P1
Optical Axis Height D 50mm
E 8.5mm
φG φ102mm
F 21mm
i
Fixed Lens Holder for 130mm Diameter Optic
LHF-130-N 		130mm M6
2-3 weeks
$84.00
Compatible Optics Diameter φA φ130mm
Compatible Optics Thickness 4 - 18mm
Clear Aperture φB φ122mm
C M131.1 P1
Optical Axis Height D 75mm
E 11mm
φG φ152mm
F 26mm
i
Fixed Lens Holder with M4 Threads for 101.6mm Diameter Optic
LHF-101.6-EE 		101.6mm M4
6-12 weeks
$79.00
Compatible Optics Diameter φA φ101.6mm
Compatible Optics Thickness 4 -18mm
Clear Aperture φB φ94mm
C M102.7 P1
Optical Axis Height D 60mm
E 12mm
φG φ122mm
F 26mm

You must be logged in to ask questions

◦For large diameter lenses over 80mm, “A type” holders are available for thick lenses .

Click here to receive announcements and exclusive promotions

Remind me later

Thank you! Please check your email inbox to confirm.

Oops! Notifications are disabled.
