Scale part (For minor diameter beam)

SPV-05S

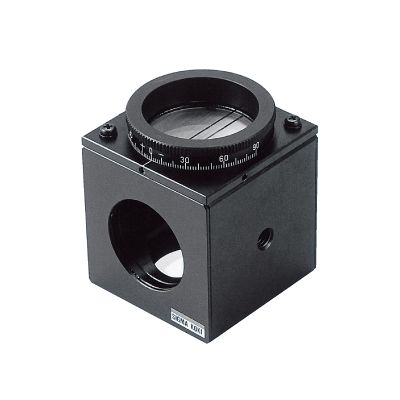

Beam collimation checkers (SPV-25/SPUV-25) are shear interferometers of the simplest design, used to examine the parallelism of laser beam expanders (collimators).
◦Evaluation of the beam status on the μrad order is made possible by inserting a collimation checker in the optical axis, eliminating much of the time and labor required to adjust the optical axis and providing a superior quality beam.
◦Beam collimation checkers are also compatible with beams of ultraviolet wavelengths. Contact our Sales Engineer for more information.
More Information
Name Scale part (For minor diameter beam)
Weight 0.0050kgs
Guide -
Attention
  • Incident beam should be limited to
  • Be sure to wear laser safety goggles when checking the optical path and adjusting the optical axis.
  • When observing fringes, do not look at the screen directly from the front and keep your eyes more than 30cm away.
Image Label Scale part (For minor diameter beam)
Material Aluminum (Black Anodized)
Type Scale part (For minor diameter beam)
Wavelength Range -
Input Beam Diameter -
Material of Shearing Plate -
Plate Thickness -
Shearing Plate Flatness -
Fringe Spacing -
Observing Sreen -
Material Aluminum (Black Anodized)
In stock
SKU
SPV-05S
€214.30

Delivery in : 3-5 days

Beam collimation checkers (SPV-25/SPUV-25) are shear interferometers of the simplest design, used to examine the parallelism of laser beam expanders (collimators).
