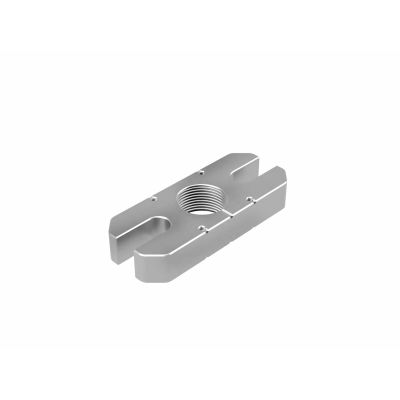

High Vacuum Baseplate for M16 threaded or 25mm square parts

VBSP-2460

Skip to the beginning of the images gallery

These are low outgassing base plates for fixing vacuum holders and vacuum stages in the optical baseplates.

◦ A long cutout hole enables positioning of the base plate in the optimal position.
◦ To minimize the outgassing, venting hole and grooving are provided onto screw holes and inset sections.
◦ Besides the post holders, 25mm and 40mm stainless stages (TSDS-251、TSDS-401) can be fixed.
WEB Reference Catalog Code/W7005

More Information

More Information
Name	High Vacuum Baseplate for M16 threaded or 25mm square parts
Weight	0.0780kgs
Guide	To maintain its high cleanness, special vacuum packing for delivery is provided for each component. We also provide vacuum optical baseplates (VOBC) for fixing the post holders. WEB Reference Catalog Code/W6102
Attention	Screws are not included. Please prepare vacuum screws (VPCB/VAGB). WEB Reference Catalog Code/W6111 Please make sure that open the package in a clean environment and do not touch it with your bare hands.
Image Label	High Vacuum Baseplate for M16 threaded or 25mm square parts

In stock

SKU

VBSP-2460

$87.00

These are low outgassing base plates for fixing vacuum holders and vacuum stages in the optical baseplates.
