Welded Flexure Mirror Mounts, Bulkhead Mount

FM

Welded Flexure Mirror Mounts, Bulkhead Mount
In stock
SKU
FM
FM series mirror mounts have a welded, unibody design making them exceptionally slim and sturdy - Ideal for industrial Set-and-Forget alignment. Two thin, stiff flexures allow in pitch and yaw axes of the mount to be adjusted independently. FM Flexure Mounts are designed to be bulkhead mounted, i.e. mounted on to a vertical surface. Not only does this save space, but it also increases stability becasue the mount takes on the structure of the bulkhead. A mirror can be mounted on either of the two sides the FM mirror mount which allows you to choose whether you want to adjust the mount from the front or the back. The FM mounts are loaded with other useful features like adhesive wells, and keying pin slots. These all-stainless steel mounts are made for standard 12.7-mm (0.5-in.), 25.4-mm (1-in.) and 50.8-mm (2-in.) diameter mirrors.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Angle Range Material Number of Control Axes Optic Diameter Delivery Price Add to cart
i
50.8-mm, Welded Stainless Steel Flexure Mirror Mount, Bulkhead Mounting

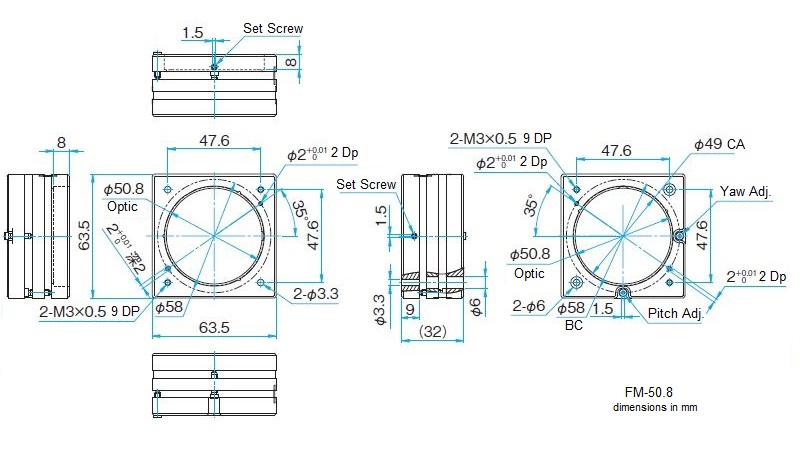

FM-50.8
±1.5° Stainless Steel 2 Axes φ50.8mm
in stock
$258.00
Mount Material Stainless Steel
Compatible Optics Diameter 50.8mm
Compatible Optics Thickness 6 - 12mm
Mirror Loading Front, both sides of mount
Mirror Clamping Mechanism Adhesive or Set Screw, 1.5-mm Hex Key
Number of Adjustment Axes 2 points
Angular Travel Range +/-1.5 deg.
Adjuster Thread Pitch 0.250mm
Dowel Pin Keys 2mm Slot and Hole
Bulkhead Mounting Threaded and clearance holes for M3 screws
i
25.4-mm, Welded Stainless Steel Flexure Mirror Mount, Bulkhead Mounting

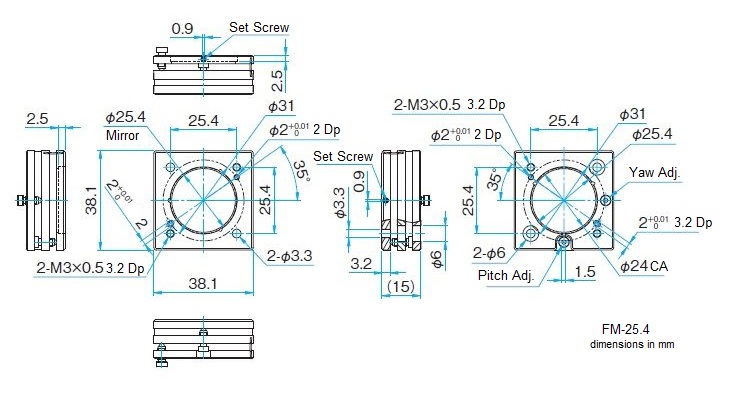

FM-25.4
±1.5° Stainless Steel 2 Axes φ25.4mm
in stock
$149.00
Mount Material Stainless Steel
Compatible Optics Diameter 25, 25.4mm
Compatible Optics Thickness 3 - 7mm
Mirror Loading Front, both sides of mount
Mirror Clamping Mechanism Adhesive or Set Screw, 0.9-mm Hex Key
Number of Adjustment Axes 2 points
Angular Travel Range +/-1.5 deg.
Adjuster Thread M3 x 0.250mm
Dowel Pin Keys 2mm Slot and Hole
Bulkhead Mounting Threaded and clearance holes for M3 screws
i
12.7-mm, Welded Stainless Steel Flexure Mirror Mount, Bulkhead Mounting

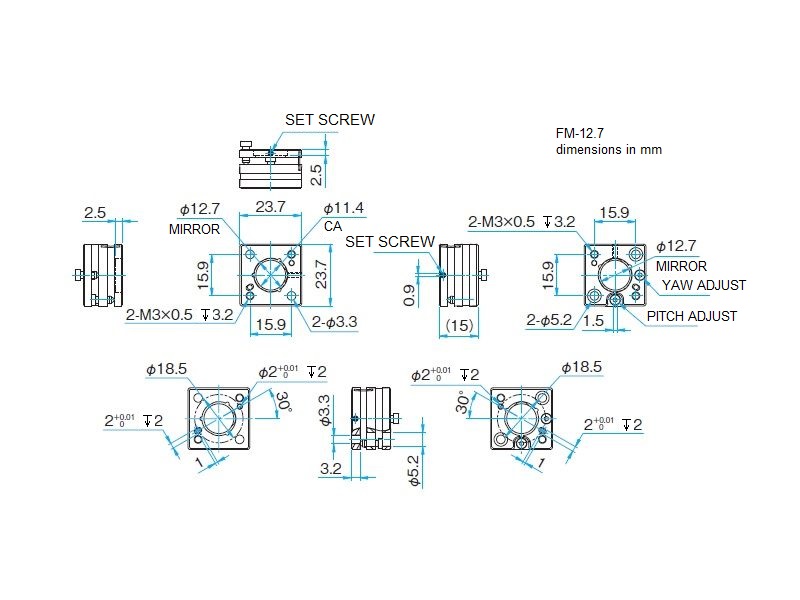

FM-12.7
±1.5° Stainless Steel 2 Axes φ12.7mm
in stock
$138.00
Mount Material Stainless Steel
Compatible Optics Diameter 12.7mm
Compatible Optics Thickness 2 - 6mm
Mirror Loading Front
Mirror Clamping Mechanism Adhesive or Set Screw, 0.9-mm Hex Key
Number of Adjustment Axes 2 points
Angular Travel Range +/-1.5 deg.
Adjuster Thread Pitch 0.250mm
Dowel Pin Keys 2mm Slot and Hole
Bulkhead Mounting Threaded and clearance holes for M3 screws

You must be logged in to ask questions

All FM and FM-L Flexure Mounts use precision 0.250mm (over 100-TPI) thread pitch adjustment screws for exceptional stability and adjustability.
