12.7mm Diameter, XYZ, Gimbaled Pitch/Yaw Adjustable Lens Mount, Bulkhead Mounting

ALHN-12.7-5-UU

Skip to the beginning of the images gallery

Multi-axis lens holders are a convenient way to align a lens to the optical axis. These plate-type holders mount securely and provide a stable low optical axis.

Details

More Information

More Information
Name	12.7mm Diameter, XYZ, Gimbaled Pitch/Yaw Adjustable Lens Mount, Bulkhead Mounting
Weight	0.3100kgs
Guide	Two axis lens holders (LHCM) without focus adjustment function are also available. WEB Reference Catalog Code/W4512-2 Two Axis lens holders (LHCM) for lenses φ20mm or less are also available. Please contact our Sales Division if you require a specific optical axis height.
Attention	Two lens spacers are included with these mounts to allow positioning of the lens within the mount.

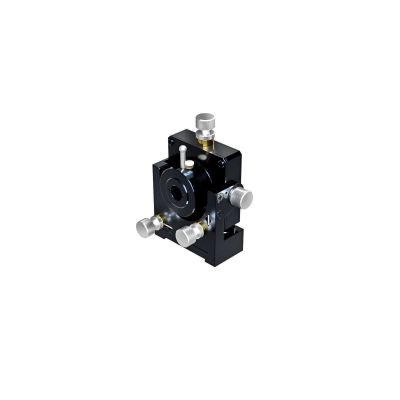

Image Label	Five-axis Lens Holder 8-32UNC for 12.7 Optic
Diameter	12.7mm
Number of Control Axes	5 Axes
Mounting Thread	8-32UNC
Compatible Optics Diameter	φ12.7mm
Compatible Optics Thickness	0 - 27.5mm
Optic Thread	M13.55 P0.75
Centering Adjustment Range	φ4mm
Centering Adjustment Resolution	0.25mm/rotation
Tilt Range /Tilt	±5°
Tilt Range /Rotation	±5°
Tilt Resolution /Tilt	about 0.65°/rotation
Tilt Resolution /Rotation	about 0.65°/rotation
Focus Adjustment Range	±3mm

In stock

SKU

ALHN-12.7-5-UU

$641.00

Multi-axis lens holders are a convenient way to align a lens to the optical axis. These plate-type holders mount securely and provide a stable low optical axis.

12.7mm Diameter, XYZ, Gimbaled Pitch/Yaw Adjustable Lens Mount, Bulkhead Mounting
