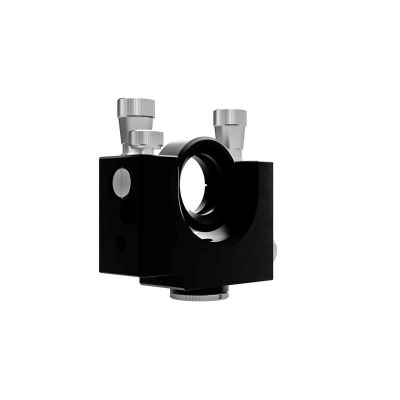

Vertical Control Gimballed Mirror Holder Metric for 30mm Mirror

LMHA-30M-EE

3d-simple-product
Gimballed mirror mounts accessible from top. Mirror angle is arbitrarily adjustable with its point of reflection unchanged. Useful when mirror is located proximate of other optical devices or difficult to access.
◦Mirror is hold with retaining ring screw from rear side. A point of reflection at front side of mirror is unchanged in regard to orientation and thickness of mirror.
◦Gimball mechanism with coarse/fine switching knob enables fine adjustment of mirror at arbitrary angle.




More Information
Name Vertical Control Gimballed Mirror Holder Metric for 30mm Mirror
Weight 0.3800kgs
Guide
  • When purchasing a post (rod) RO-20-60 (outer diameter 20mm, length 60mm), posts can be mounted together. The size of each post can be changed. To assembly the posts, a vice and a plier are required. We can assembly them for you upon on request for free. The cost of the post vary according to the size. Please contact our sale division for details.
  • for A vertical Gimbal mirror mount (BSHL) makes possible to adjust low light axis is available. (WEB Reference Catalog Code/W4012)
Attention -
Image Label Vertical Control Gimballed Mirror Holder Metric for 30mm Mirror
Diameter 30mm
Compatible Optics Diameter φ30mm
Compatible Optics Thickness 2 - 6mm
Adjustment Range /Tilt ±4°
Adjustment Range /Rotation ±4°
Resolution /Tilt about 0.6°/rotation
Resolution /Rotation about 0.6°/rotation
In stock
SKU
LMHA-30M-EE
$311.10

Delivery in : 6-12 weeks

Gimballed mirror mounts accessible from top. Mirror angle is arbitrarily adjustable with its point of reflection unchanged. Useful when mirror is located proximate of other optical devices or difficult to access.
