In stock
SKU
BSHL-BP

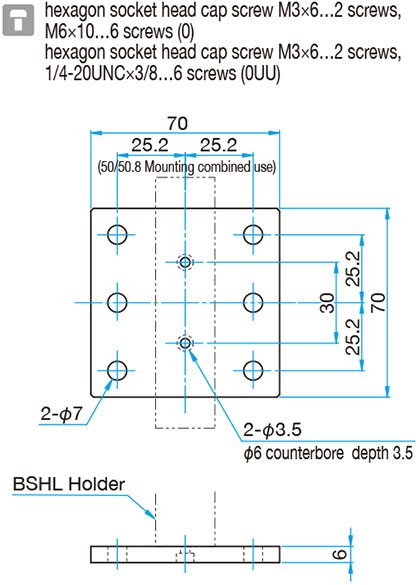

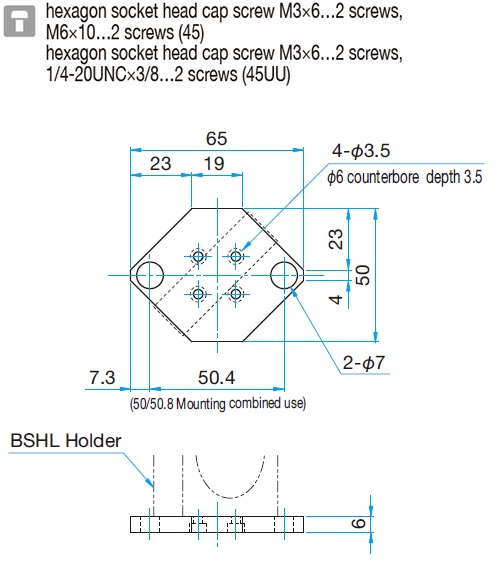

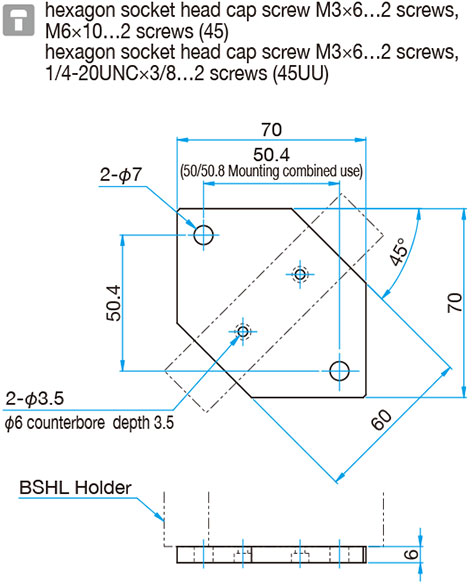

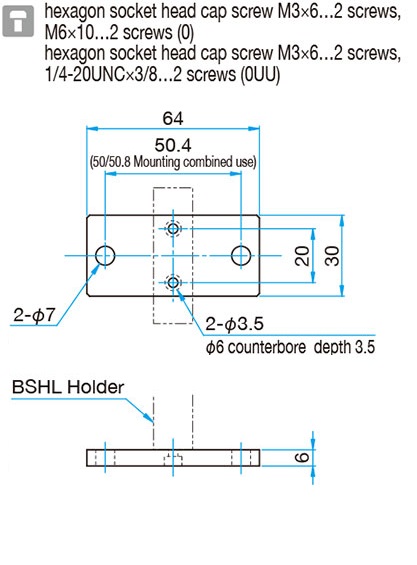

Base plates for mounting BSHL mirror holders on optical breadboards or optical baseplates. Base plates are available to mount the BSHL at 0 degrees and 45 degrees incidence positions.
Customize product
Filters
Enabled filters :
Remove all filters
| Name | Delivery | Price | Add to cart | |||||
|---|---|---|---|---|---|---|---|---|
|
details
BSHL-50BPRO
|
2 weeks
|
$16.31
|
|
|
||||
|
details
BSHL-25.4BP-0UU
|
6-12 weeks
|
$32.55
|
|
|
||||
|
details
BSHL-50.8BP-0
|
in stock
|
$32.55
|
|
|
||||
|
details
BSHL-50.8BP-45UU
|
6-12 weeks
|
$32.55
|
|
|
||||
|
details
BSHL-12.7BPRO
|
in stock
|
$10.87
|
|
|
||||
|
details
BSHL-12.7BP
|
in stock
|
$32.55
|
|
|
||||
|
details
BSHL-25.4BP-45
|
in stock
|
$32.55
|
|
|
||||
|
details
BSHL-50.8BP-0UU
|
6-12 weeks
|
$32.55
|
|
|
||||
|
details
BSHL-20BPRO
|
2 weeks
|
$10.87
|
|
|
||||
|
details
BSHL-25.4BP-0
|
in stock
|
$32.55
|
|
|
||||
|
details
BSHL-25.4BP-45UU
|
in stock
|
$32.55
|
|
|
||||
|
details
BSHL-50.8BP-45
|
in stock
|
$32.55
|
|
|
You must be logged in to ask questions
◦BSHL-BPRO adapter plates for mounting posts (RO-12/20) on the bottom of the BSHL.
◦BSHL-12.7BP mounts BSHL-12.7/15 holders on base plates with M2 threads on 10mm spacing at 0 degrees and 45 degrees incidence positions.
◦When securing with an M4 thread, use the M6-M4 conversion adapter (AD-M6-M4).
◦BSHL-12.7BP mounts BSHL-12.7/15 holders on base plates with M2 threads on 10mm spacing at 0 degrees and 45 degrees incidence positions.
◦When securing with an M4 thread, use the M6-M4 conversion adapter (AD-M6-M4).
