High Load Linear Stages 3 Axis (XYZ)

HST-XYZ

High Load Linear Stages 3 Axis (XYZ)
In stock
SKU
HST-XYZ
High precision XY Zaxis stages fitted with precision ball screws and precision crossed roller.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Travel Load Capacity Delivery Price Add to cart
i
Precision Motorized Stages - 5 Phase Stepping Motor
HST-100XYZ
100mm 98N (10.0kg)
6-12 weeks
$12,589.00
Stage Size 165×200mm
Feed Screw Ball screw diameter φ10mm、2mm lead
Positioning Slide Crossed roller
Stage Material Steel
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
MAX Speed 10mm/sec
Positional Repeatability 2μm
Load Capacity 98N(10.0kgf)
Lost Motion 1μm
Backlash 1μm
Orthogonality of Motion 5μm
Perpendicularity of Motion 15μm
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Precision Motorized Stages - 5 Phase Stepping Motor

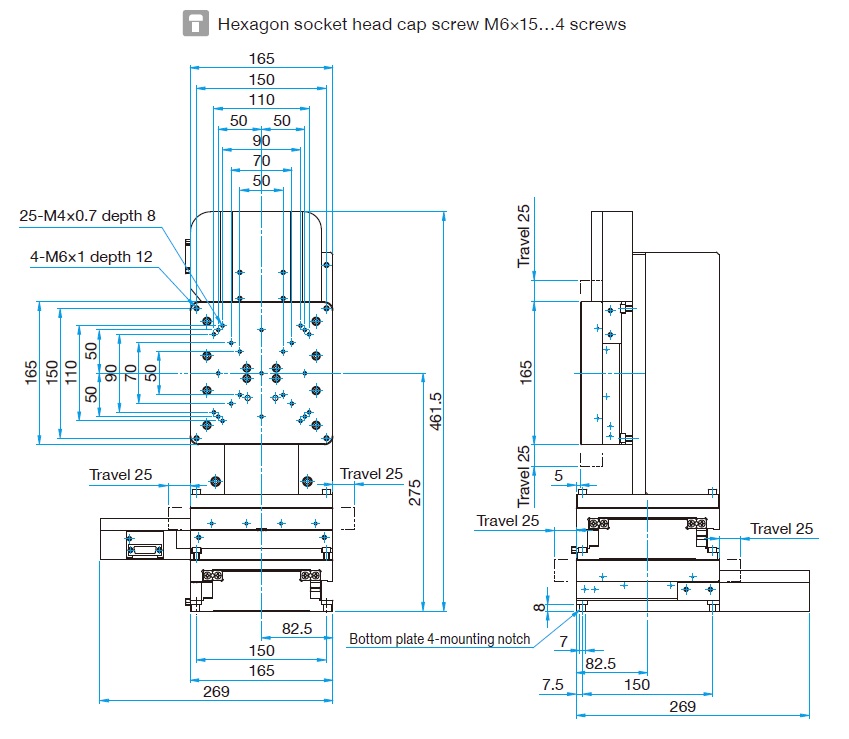

HST-50XYZ
50mm 98N (10.0kg)
6-12 weeks
$9,717.00
Stage Size 165×165mm
Feed Screw Ball screw diameter φ10mm、2mm lead
Positioning Slide Crossed roller
Stage Material Steel
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
MAX Speed 10mm/sec
Positional Repeatability 2μm
Load Capacity 98N(10.0kgf)
Lost Motion 1μm
Backlash 1μm
Orthogonality of Motion 5μm
Perpendicularity of Motion 10μm
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)

You must be logged in to ask questions

◦The combination of HST Series and 3 axis Stage Controllers HSC-103 can perform low-noise and low-vibration operation, compared with conventional products.
◦Steel body offers excellent stiffness and high load capacity.
