Precision Motorized Stages - 5 Phase Stepping Motor

HST-50XYZ

3d-simple-product

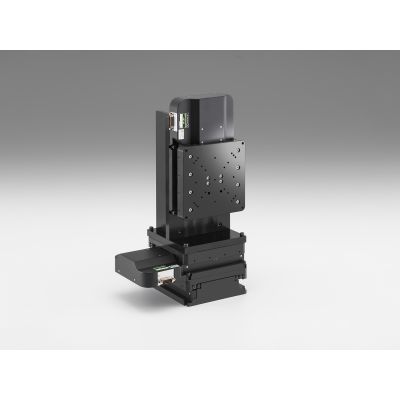

High precision XY Zaxis stages fitted with precision ball screws and precision crossed roller.



More Information
Name Precision Motorized Stages - 5 Phase Stepping Motor
Weight 30.4000kgs
Guide
  • Contact our Sales Division if you desire to change motors, etc. Or, use the motorized stage system question sheet.(WEB Reference Catalog Code/W9500) (Question Sheet)
Attention -
Image Label Precision Motorized Stages - 5 Phase Stepping Motor
Travel 50mm
Load Capacity 98N (10.0kg)
Stage Size 165×165mm
Feed Screw Ball screw diameter φ10mm、2mm lead
Positioning Slide Crossed roller
Stage Material Steel
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
MAX Speed 10mm/sec
Positional Repeatability 2μm
Load Capacity 98N(10.0kgf)
Lost Motion 1μm
Backlash 1μm
Orthogonality of Motion 5μm
Perpendicularity of Motion 10μm
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
In stock
SKU
HST-50XYZ
$9,717.00

Delivery in : 6-12 weeks

High precision XY Zaxis stages fitted with precision ball screws and precision crossed roller.
