In stock
SKU
LHCM
Two-axis lens holders with compact centering mechanism. The compact centering adjustment mechanism makes a low optical axis easy to accommodate. Can be used for adjusting the focus point of a laser beam or the direction of a collimated beam.
Customize product
Filters
Enabled filters :
Remove all filters
| Name | Diameter | Mounting Thread | Delivery | Price | Add to cart | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
i
Two-axis Lens Holder for 15mm
LHCM-15-N |
15mm | M4 |
2-3 weeks
|
$102.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder for 25.4mm
LHCM-25.4-N |
25.4mm | M6 |
2-3 weeks
|
$157.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder for 50mm
LHCM-50-N |
50mm | M6 |
2-3 weeks
|
$188.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder with M4 Threads for 25mm
LHCM-25-EE |
25mm | M4 |
6-12 weeks
|
$157.00
|
|
|
||||||||||
|
i

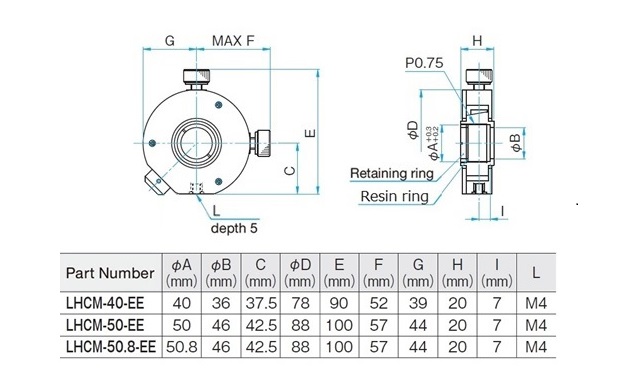

Two-axis Lens Holder with M4 Threads for 40mm
LHCM-40-EE |
40mm | M4 |
6-12 weeks
|
$188.00
|
|
|
||||||||||
|
i

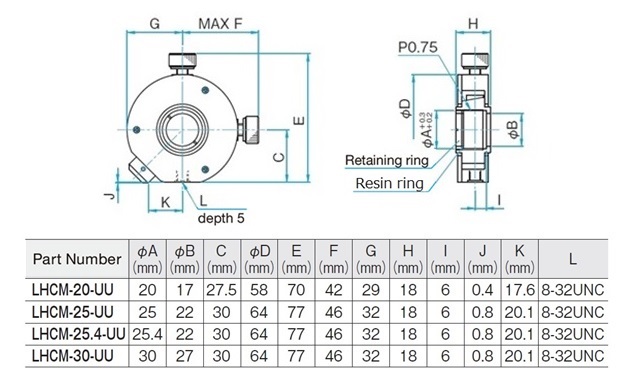

Two-axis Lens Holder with 8-32UNC Threads for 20mm
LHCM-20-UU |
20mm | 8-32UNC |
6-12 weeks
|
$157.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder with 8-32UNC Threads for 30mm
LHCM-30-UU |
30mm | 8-32UNC |
6-12 weeks
|
$157.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder with 8-32UNC Threads for 50.8mm
LHCM-50.8-UU |
50.8mm | 8-32UNC |
6-12 weeks
|
$188.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder for 15mm with Base
LHCM-15B |
15mm |
2 weeks
|
$132.00
|
|
|
|||||||||||
|
i

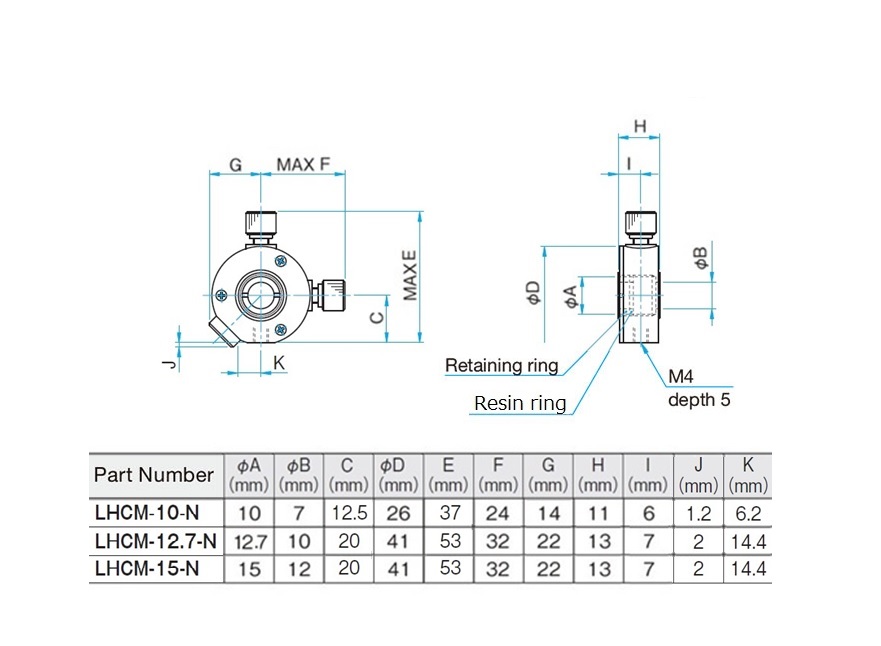

Two-axis Lens Holder for 10mm
LHCM-10-N |
10mm | M4 |
2-3 weeks
|
$102.00
|
|
|
||||||||||
|
i

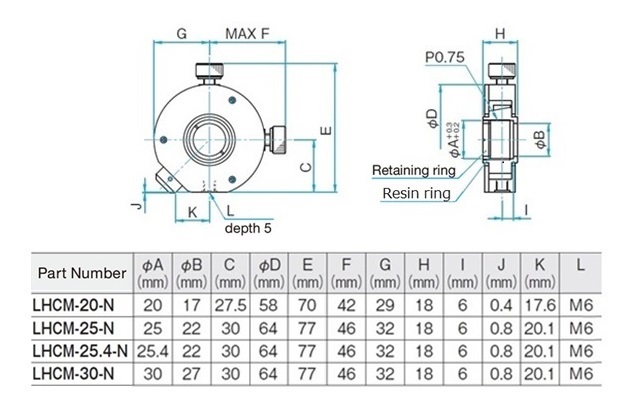

Two-axis Lens Holder for 20mm
LHCM-20-N |
20mm | M6 |
2-3 weeks
|
$157.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder for 30mm
LHCM-30-N |
30mm | M6 |
2-3 weeks
|
$157.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder for 50.8mm
LHCM-50.8-N |
50.8mm | M6 |
2-3 weeks
|
$188.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder with M4 Threads for 25.4mm
LHCM-25.4-EE |
25.4mm | M4 |
6-12 weeks
|
$157.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder with M4 Threads for 50mm
LHCM-50-EE |
50mm | M4 |
6-12 weeks
|
$188.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder with 8-32UNC Threads for 25mm
LHCM-25-UU |
25mm | 8-32UNC |
6-12 weeks
|
$157.00
|
|
|
||||||||||
|
i

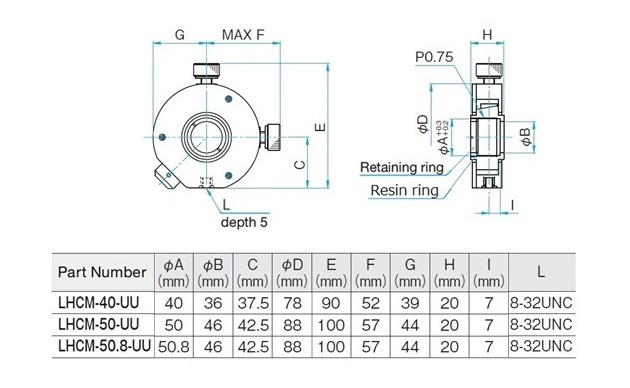

Two-axis Lens Holder with 8-32UNC Threads for 40mm
LHCM-40-UU |
40mm | 8-32UNC |
6-12 weeks
|
$188.00
|
|
|
||||||||||
|
i

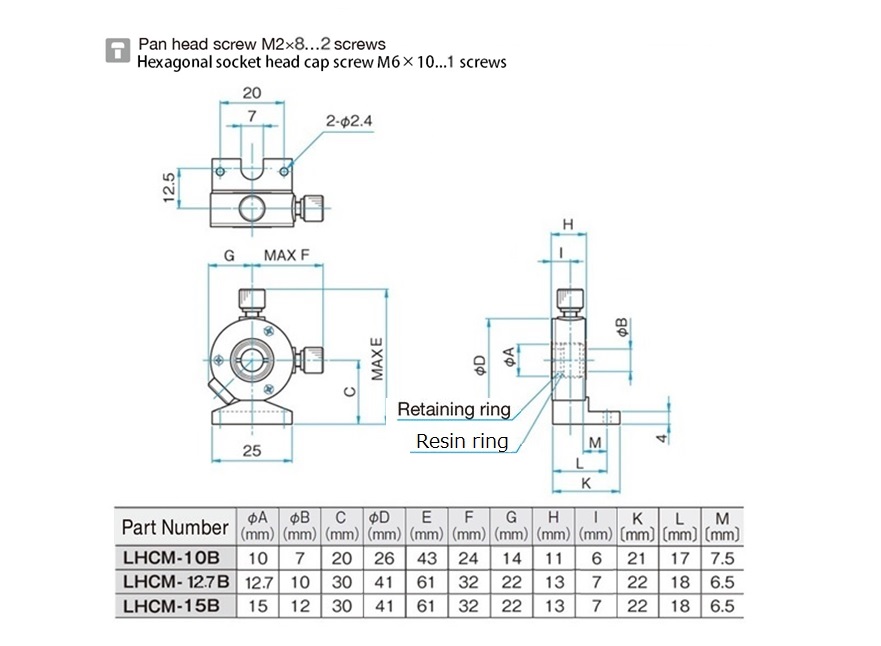

Two-axis Lens Holder for 10mm with Base
LHCM-10B |
10mm |
2 weeks
|
$132.00
|
|
|
|||||||||||
|
i
Two-axis Lens Holder for 12.7mm
LHCM-12.7-N |
12.7mm | M4 |
2-3 weeks
|
$102.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder for 25mm
LHCM-25-N |
25mm | M6 |
2-3 weeks
|
$157.00
|
|
|
||||||||||
|
i

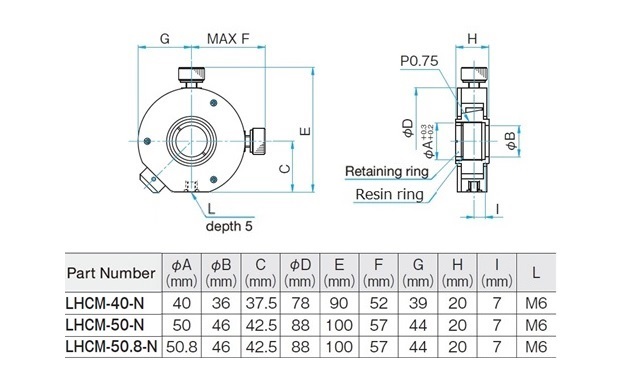

Two-axis Lens Holder for 40mm
LHCM-40-N |
40mm | M6 |
2-3 weeks
|
$188.00
|
|
|
||||||||||
|
i

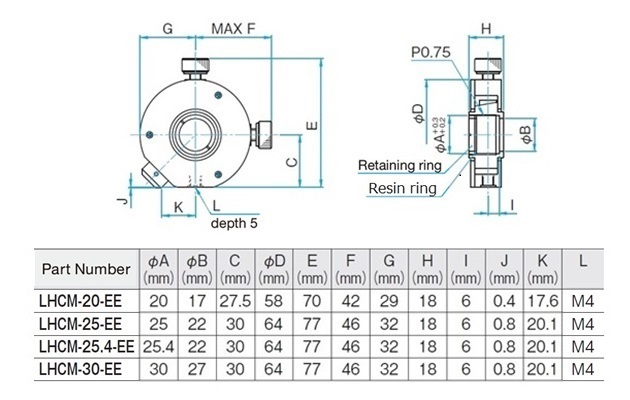

Two-axis Lens Holder with M4 Threads for 20mm
LHCM-20-EE |
20mm | M4 |
6-12 weeks
|
$157.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder with M4 Threads for 30mm
LHCM-30-EE |
30mm | M4 |
6-12 weeks
|
$157.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder with M4 Threads for 50.8mm
LHCM-50.8-EE |
50.8mm | M4 |
6-12 weeks
|
$188.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder with 8-32UNC Threads for 25.4mm
LHCM-25.4-UU |
25.4mm | 8-32UNC |
in stock
|
$157.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder with 8-32UNC Threads for 50mm
LHCM-50-UU |
50mm | 8-32UNC |
6-12 weeks
|
$188.00
|
|
|
||||||||||
|
i
Two-axis Lens Holder for 12.7mm with Base
LHCM-12.7B |
12.7mm |
2 weeks
|
$132.00
|
|
|
You must be logged in to ask questions
◦For Lens diameters from 10mm to 50.8mm.
◦Deep enough to hold thick achromatic lenses.
◦The thin frame allows optics to be placed close to the front and back of the lens.
◦Deep enough to hold thick achromatic lenses.
◦The thin frame allows optics to be placed close to the front and back of the lens.
