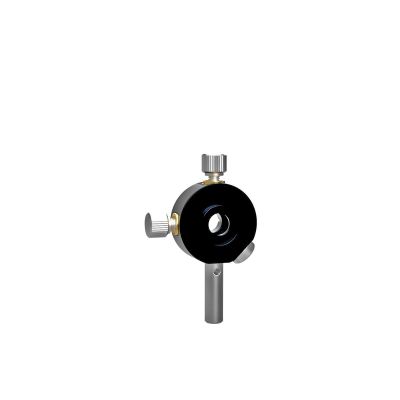

Two-axis Lens Holder
LHCM-10
Two-axis lens holders with compact centering mechanism. The compact centering adjustment mechanism makes a low optical axis easy to accommodate . Can be used for adjusting the focus point of a laser beam or the direction of a collimated beam.
◦For Lens diameters from 10mm to 50.8mm.
◦Deep enough to hold thick achromatic lenses.
◦The thin frame allows optics to be placed close to the front and back of the lens.
◦Deep enough to hold thick achromatic lenses.
◦The thin frame allows optics to be placed close to the front and back of the lens.
| Name | Two-axis Lens Holder |
|---|---|
| Weight | 0.1400kgs |
| Guide |
|
| Attention |
|
| Compatible Optics Diameter φA | φ10mm |
| Compatible Optics Thickness t | 1 - 6mm |
| Clear Aperture φB | φ7mm |
| Optical Axis Height C | 12.5mm |
| Centering Adjustment Range | φ1mm |
In stock
SKU
LHCM-10
$129.00
Customize product
Two-axis lens holders with compact centering mechanism. The compact centering adjustment mechanism makes a low optical axis easy to accommodate . Can be used for adjusting the focus point of a laser beam or the direction of a collimated beam.
