N-BK7, Plano Concave Lenses (AR 633-1064nm)

SLB-N-IR1

More about
N-BK7, Plano Concave Lenses (AR 633-1064nm)
Out of stock
SKU
SLB-N-IR1
These simple negative lenses have many uses. Alone they form a virtual image of a distant object
or collimated light source. Used in combination with other optics they reduce the power of the
system. Sharp edges which are common in negative lenses are removed by beveling in order to
reduce the likelihood of chipping.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
Diameter φD
Focal length
Delivery Price Add to cart
details
SLB-15-50NIR1
15mm 50mm
2 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm

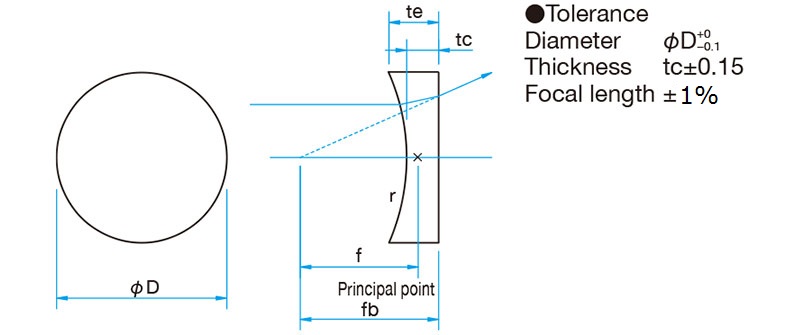

Diameter φD φ15mm
Focal length f −50mm
Edge thickness te 3.1mm
Center thickness tc 2mm
Back focal length fb −51.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-25.4-60NIR1
25.4mm 60mm
in stock
$83.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −60mm
Edge thickness te 4.7mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-50-170NIR1
50mm 170mm
2 weeks
$123.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −170mm
Edge thickness te 6.6mm
Center thickness tc 3mm
Back focal length fb −172.0mm
Radius of curvature r 88.23mm
Centration ＜1′
details
SLB-15-80NIR1
15mm 80mm
2 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −80mm
Edge thickness te 2.7mm
Center thickness tc 2mm
Back focal length fb −81.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-25.4-90NIR1
25.4mm 90mm
in stock
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −90mm
Edge thickness te 3.8mm
Center thickness tc 2mm
Back focal length fb −91.3mm
Radius of curvature r 46.71mm
Centration ＜1′
details
SLB-50-250NIR1
50mm 250mm
6-12 weeks
$123.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −250mm
Edge thickness te 5.4mm
Center thickness tc 3mm
Back focal length fb −252.0mm
Radius of curvature r 129.75mm
Centration ＜1′
details
SLB-20-30NIR1
20mm 30mm
6-12 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −30mm
Edge thickness te 5.6mm
Center thickness tc 2mm
Back focal length fb −31.3mm
Radius of curvature r 15.57mm
Centration ＜1′
details
SLB-25.4-200NIR1
25.4mm 200mm
in stock
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −200mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −201.3mm
Radius of curvature r 103.8mm
Centration ＜1′
details
SLB-50.8-80NIR1
50.8mm 80mm
in stock
$132.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −80mm
Edge thickness te 11.7mm
Center thickness tc 3mm
Back focal length fb −82.0mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-20-60NIR1
20mm 60mm
6-12 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −60mm
Edge thickness te 3.6mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-30-50NIR1
30mm 50mm
6-12 weeks
$93.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −50mm
Edge thickness te 6.8mm
Center thickness tc 2mm
Back focal length fb −51.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-50.8-150NIR1
50.8mm 150mm
6-12 weeks
$123.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −150mm
Edge thickness te 7.3mm
Center thickness tc 3mm
Back focal length fb −152.0mm
Radius of curvature r 77.85mm
Centration ＜1′
details
SLB-20-90NIR1
20mm 90mm
6-12 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −90mm
Edge thickness te 3.1mm
Center thickness tc 2mm
Back focal length fb −91.3mm
Radius of curvature r 46.71mm
Centration ＜1′
details
SLB-30-80NIR1
30mm 80mm
6-12 weeks
$87.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −80mm
Edge thickness te 4.8mm
Center thickness tc 2mm
Back focal length fb −81.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-50.8-300NIR1
50.8mm 300mm
6-12 weeks
$123.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −300mm
Edge thickness te 5.1mm
Center thickness tc 3mm
Back focal length fb −302.0mm
Radius of curvature r 155.7mm
Centration ＜1′
details
SLB-10-25NIR1
10mm 25mm
2 weeks
$64.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −25mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −26.3mm
Radius of curvature r 12.98mm
Centration ＜1′
details
SLB-20-150NIR1
20mm 150mm
6-12 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −150mm
Edge thickness te 2.6mm
Center thickness tc 2mm
Back focal length fb −151.3mm
Radius of curvature r 77.85mm
Centration ＜1′
details
SLB-30-120NIR1
30mm 120mm
2 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −120mm
Edge thickness te 3.8mm
Center thickness tc 2mm
Back focal length fb −121.3mm
Radius of curvature r 62.28mm
Centration ＜1′
details
SLB-10-50NIR1
10mm 50mm
2 weeks
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −50mm
Edge thickness te 2.5mm
Center thickness tc 2mm
Back focal length fb −51.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-25-40NIR1
25mm 40mm
6-12 weeks
$85.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −40mm
Edge thickness te 6.2mm
Center thickness tc 2mm
Back focal length fb −41.3mm
Radius of curvature r 20.76mm
Centration ＜1′
details
SLB-30-200NIR1
30mm 200mm
2 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −200mm
Edge thickness te 3.1mm
Center thickness tc 2mm
Back focal length fb −201.3mm
Radius of curvature r 103.8mm
Centration ＜1′
details
SLB-10-80NIR1
10mm 80mm
6-12 weeks
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −80mm
Edge thickness te 2.3mm
Center thickness tc 2mm
Back focal length fb −81.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-25-70NIR1
25mm 70mm
6-12 weeks
$82.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −70mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −71.3mm
Radius of curvature r 36.33mm
Centration ＜1′
details
SLB-40-50NIR1
40mm 50mm
6-12 weeks
$118.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f −50mm
Edge thickness te 11.4mm
Center thickness tc 2mm
Back focal length fb −51.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-12.7-15NIR1
12.7mm 15mm
in stock
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f −15mm
Edge thickness te 5.3mm
Center thickness tc 2mm
Back focal length fb −16.3mm
Radius of curvature r 7.79mm
Centration ＜1′
details
SLB-25-100NIR1
25mm 100mm
6-12 weeks
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −100mm
Edge thickness te 3.5mm
Center thickness tc 2mm
Back focal length fb −101.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-40-80NIR1
40mm 80mm
2 weeks
$114.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f −80mm
Edge thickness te 7.1mm
Center thickness tc 2mm
Back focal length fb −81.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-12.7-30NIR1
12.7mm 30mm
in stock
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f −30mm
Edge thickness te 3.4mm
Center thickness tc 2mm
Back focal length fb −31.3mm
Radius of curvature r 15.57mm
Centration ＜1′
details
SLB-25-170NIR1
25mm 170mm
6-12 weeks
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −170mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −171.3mm
Radius of curvature r 88.23mm
Centration ＜1′
details
SLB-50-80NIR1
50mm 80mm
6-12 weeks
$132.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −80mm
Edge thickness te 11.4mm
Center thickness tc 3mm
Back focal length fb −82.0mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-15-30NIR1
15mm 30mm
2 weeks
$68.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −30mm
Edge thickness te 3.9mm
Center thickness tc 2mm
Back focal length fb −31.3mm
Radius of curvature r 15.57mm
Centration ＜1′
details
SLB-25.4-40NIR1
25.4mm 40mm
in stock
$85.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −40mm
Edge thickness te 6.3mm
Center thickness tc 2mm
Back focal length fb −41.3mm
Radius of curvature r 20.76mm
Centration ＜1′
details
SLB-50-120NIR1
50mm 120mm
6-12 weeks
$125.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −120mm
Edge thickness te 8.2mm
Center thickness tc 3mm
Back focal length fb −122.0mm
Radius of curvature r 62.28mm
Centration ＜1′
details
SLB-15-60NIR1
15mm 60mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −60mm
Edge thickness te 2.9mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-25.4-70NIR1
25.4mm 70mm
in stock
$82.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −70mm
Edge thickness te 4.3mm
Center thickness tc 2mm
Back focal length fb −71.3mm
Radius of curvature r 36.33mm
Centration ＜1′
details
SLB-50-200NIR1
50mm 200mm
6-12 weeks
$123.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −200mm
Edge thickness te 6.1mm
Center thickness tc 3mm
Back focal length fb −202.0mm
Radius of curvature r 103.8mm
Centration ＜1′
details
SLB-15-100NIR1
15mm 100mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −100mm
Edge thickness te 2.5mm
Center thickness tc 2mm
Back focal length fb −101.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-25.4-100NIR1
25.4mm 100mm
in stock
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −100mm
Edge thickness te 3.6mm
Center thickness tc 2mm
Back focal length fb −101.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-50-300NIR1
50mm 300mm
6-12 weeks
$123.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −300mm
Edge thickness te 5mm
Center thickness tc 3mm
Back focal length fb −302.0mm
Radius of curvature r 155.7mm
Centration ＜1′
details
SLB-20-40NIR1
20mm 40mm
2 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −40mm
Edge thickness te 4.6mm
Center thickness tc 2mm
Back focal length fb −41.3mm
Radius of curvature r 20.76mm
Centration ＜1′
details
SLB-30-35NIR1
30mm 35mm
2 weeks
$98.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −35mm
Edge thickness te 9.9mm
Center thickness tc 2mm
Back focal length fb −36.3mm
Radius of curvature r 18.17mm
Centration ＜1′
details
SLB-50.8-90NIR1
50.8mm 90mm
in stock
$130.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −90mm
Edge thickness te 10.5mm
Center thickness tc 3mm
Back focal length fb −92.0mm
Radius of curvature r 46.71mm
Centration ＜1′
details
SLB-20-70NIR1
20mm 70mm
2 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −70mm
Edge thickness te 3.4mm
Center thickness tc 2mm
Back focal length fb −71.3mm
Radius of curvature r 36.33mm
Centration ＜1′
details
SLB-30-60NIR1
30mm 60mm
6-12 weeks
$91.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −60mm
Edge thickness te 5.9mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-50.8-200NIR1
50.8mm 200mm
in stock
$123.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −200mm
Edge thickness te 6.2mm
Center thickness tc 3mm
Back focal length fb −202.0mm
Radius of curvature r 103.8mm
Centration ＜1′
details
SLB-10-15NIR1
10mm 15mm
6-12 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −15mm
Edge thickness te 3.8mm
Center thickness tc 2mm
Back focal length fb −16.3mm
Radius of curvature r 7.79mm
Centration ＜1′
details
SLB-20-100NIR1
20mm 100mm
6-12 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −100mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −101.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-30-90NIR1
30mm 90mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −90mm
Edge thickness te 4.5mm
Center thickness tc 2mm
Back focal length fb −91.3mm
Radius of curvature r 46.71mm
Centration ＜1′
details
SLB-10-30NIR1
10mm 30mm
2 weeks
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −30mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −31.3mm
Radius of curvature r 15.57mm
Centration ＜1′
details
SLB-25-30NIR1
25mm 30mm
6-12 weeks
$87.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −30mm
Edge thickness te 8.3mm
Center thickness tc 2mm
Back focal length fb −31.3mm
Radius of curvature r 15.57mm
Centration ＜1′
details
SLB-30-150NIR1
30mm 150mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −150mm
Edge thickness te 3.5mm
Center thickness tc 2mm
Back focal length fb −151.3mm
Radius of curvature r 77.85mm
Centration ＜1′
details
SLB-10-60NIR1
10mm 60mm
6-12 weeks
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −60mm
Edge thickness te 2.4mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-25-50NIR1
25mm 50mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −50mm
Edge thickness te 5.2mm
Center thickness tc 2mm
Back focal length fb −51.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-30-220NIR1
30mm 220mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −220mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −221.3mm
Radius of curvature r 114.18mm
Centration ＜1′
details
SLB-10-90NIR1
10mm 90mm
6-12 weeks
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −90mm
Edge thickness te 2.3mm
Center thickness tc 2mm
Back focal length fb −91.3mm
Radius of curvature r 46.71mm
Centration ＜1′
details
SLB-25-80NIR1
25mm 80mm
6-12 weeks
$81.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −80mm
Edge thickness te 3.9mm
Center thickness tc 2mm
Back focal length fb −81.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-40-60NIR1
40mm 60mm
6-12 weeks
$117.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f −60mm
Edge thickness te 9.3mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-12.7-20NIR1
12.7mm 20mm
in stock
$68.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f −20mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −21.3mm
Radius of curvature r 10.38mm
Centration ＜1′
details
SLB-25-120NIR1
25mm 120mm
2 weeks
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −120mm
Edge thickness te 3.3mm
Center thickness tc 2mm
Back focal length fb −121.3mm
Radius of curvature r 62.28mm
Centration ＜1′
details
SLB-40-100NIR1
40mm 100mm
2 weeks
$112.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f −100mm
Edge thickness te 6mm
Center thickness tc 2mm
Back focal length fb −101.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-15-20NIR1
15mm 20mm
6-12 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −20mm
Edge thickness te 5.2mm
Center thickness tc 2mm
Back focal length fb −21.3mm
Radius of curvature r 10.38mm
Centration ＜1′
details
SLB-25-200NIR1
25mm 200mm
2 weeks
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −200mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −201.3mm
Radius of curvature r 103.8mm
Centration ＜1′
details
SLB-50-90NIR1
50mm 90mm
2 weeks
$130.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −90mm
Edge thickness te 10.3mm
Center thickness tc 3mm
Back focal length fb −92.0mm
Radius of curvature r 46.71mm
Centration ＜1′
details
SLB-15-40NIR1
15mm 40mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −40mm
Edge thickness te 3.4mm
Center thickness tc 2mm
Back focal length fb −41.3mm
Radius of curvature r 20.76mm
Centration ＜1′
details
SLB-25.4-50NIR1
25.4mm 50mm
in stock
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −50mm
Edge thickness te 5.3mm
Center thickness tc 2mm
Back focal length fb −51.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-50-150NIR1
50mm 150mm
6-12 weeks
$123.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −150mm
Edge thickness te 7.1mm
Center thickness tc 3mm
Back focal length fb −152.0mm
Radius of curvature r 77.85mm
Centration ＜1′
details
SLB-15-70NIR1
15mm 70mm
6-12 weeks
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −70mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −71.3mm
Radius of curvature r 36.33mm
Centration ＜1′
details
SLB-25.4-80NIR1
25.4mm 80mm
in stock
$81.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −80mm
Edge thickness te 4mm
Center thickness tc 2mm
Back focal length fb −81.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-50-220NIR1
50mm 220mm
6-12 weeks
$123.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −220mm
Edge thickness te 5.8mm
Center thickness tc 3mm
Back focal length fb −222.0mm
Radius of curvature r 114.18mm
Centration ＜1′
details
SLB-20-25NIR1
20mm 25mm
2 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −25mm
Edge thickness te 6.7mm
Center thickness tc 2mm
Back focal length fb −26.3mm
Radius of curvature r 12.98mm
Centration ＜1′
details
SLB-25.4-150NIR1
25.4mm 150mm
2 weeks
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −150mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −151.3mm
Radius of curvature r 77.85mm
Centration ＜1′
details
SLB-50.8-70NIR1
50.8mm 70mm
in stock
$135.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −70mm
Edge thickness te 13.4mm
Center thickness tc 3mm
Back focal length fb −72.0mm
Radius of curvature r 36.33mm
Centration ＜1′
details
SLB-20-50NIR1
20mm 50mm
6-12 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −50mm
Edge thickness te 4mm
Center thickness tc 2mm
Back focal length fb −51.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-30-40NIR1
30mm 40mm
2 weeks
$94.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −40mm
Edge thickness te 8.4mm
Center thickness tc 2mm
Back focal length fb −41.3mm
Radius of curvature r 20.76mm
Centration ＜1′
details
SLB-50.8-100NIR1
50.8mm 100mm
in stock
$128.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −100mm
Edge thickness te 9.6mm
Center thickness tc 3mm
Back focal length fb −102.0mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-20-80NIR1
20mm 80mm
2 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −80mm
Edge thickness te 3.2mm
Center thickness tc 2mm
Back focal length fb −81.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-30-70NIR1
30mm 70mm
6-12 weeks
$89.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −70mm
Edge thickness te 5.2mm
Center thickness tc 2mm
Back focal length fb −71.3mm
Radius of curvature r 36.33mm
Centration ＜1′
details
SLB-50.8-250NIR1
50.8mm 250mm
in stock
$123.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −250mm
Edge thickness te 5.5mm
Center thickness tc 3mm
Back focal length fb −252.0mm
Radius of curvature r 129.75mm
Centration ＜1′
details
SLB-10-20NIR1
10mm 20mm
6-12 weeks
$68.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −20mm
Edge thickness te 3.3mm
Center thickness tc 2mm
Back focal length fb −21.3mm
Radius of curvature r 10.38mm
Centration ＜1′
details
SLB-20-120NIR1
20mm 120mm
6-12 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −120mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −121.3mm
Radius of curvature r 62.28mm
Centration ＜1′
details
SLB-10-40NIR1
10mm 40mm
6-12 weeks
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −40mm
Edge thickness te 2.6mm
Center thickness tc 2mm
Back focal length fb −41.3mm
Radius of curvature r 20.76mm
Centration ＜1′
details
SLB-25-35NIR1
25mm 35mm
6-12 weeks
$85.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −35mm
Edge thickness te 7mm
Center thickness tc 2mm
Back focal length fb −36.3mm
Radius of curvature r 18.17mm
Centration ＜1′
details
SLB-30-170NIR1
30mm 170mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −170mm
Edge thickness te 3.3mm
Center thickness tc 2mm
Back focal length fb −171.3mm
Radius of curvature r 88.23mm
Centration ＜1′
details
SLB-10-70NIR1
10mm 70mm
6-12 weeks
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −70mm
Edge thickness te 2.3mm
Center thickness tc 2mm
Back focal length fb −71.3mm
Radius of curvature r 36.33mm
Centration ＜1′
details
SLB-25-60NIR1
25mm 60mm
6-12 weeks
$83.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −60mm
Edge thickness te 4.6mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-30-250NIR1
30mm 250mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −250mm
Edge thickness te 2.9mm
Center thickness tc 2mm
Back focal length fb −251.3mm
Radius of curvature r 129.75mm
Centration ＜1′
details
SLB-10-100NIR1
10mm 100mm
6-12 weeks
$62.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −100mm
Edge thickness te 2.2mm
Center thickness tc 2mm
Back focal length fb −101.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-25-90NIR1
25mm 90mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −90mm
Edge thickness te 3.7mm
Center thickness tc 2mm
Back focal length fb −91.3mm
Radius of curvature r 46.71mm
Centration ＜1′
details
SLB-40-70NIR1
40mm 70mm
6-12 weeks
$116.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f −70mm
Edge thickness te 8mm
Center thickness tc 2mm
Back focal length fb −71.3mm
Radius of curvature r 36.33mm
Centration ＜1′
details
SLB-12.7-25NIR1
12.7mm 25mm
in stock
$65.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f −25mm
Edge thickness te 3.7mm
Center thickness tc 2mm
Back focal length fb −26.3mm
Radius of curvature r 12.98mm
Centration ＜1′
details
SLB-25-150NIR1
25mm 150mm
6-12 weeks
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −150mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −151.3mm
Radius of curvature r 77.85mm
Centration ＜1′
details
SLB-50-70NIR1
50mm 70mm
6-12 weeks
$135.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −70mm
Edge thickness te 13mm
Center thickness tc 3mm
Back focal length fb −72.0mm
Radius of curvature r 36.33mm
Centration ＜1′
details
SLB-15-25NIR1
15mm 25mm
6-12 weeks
$69.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −25mm
Edge thickness te 4.4mm
Center thickness tc 2mm
Back focal length fb −26.3mm
Radius of curvature r 12.98mm
Centration ＜1′
details
SLB-25.4-30NIR1
25.4mm 30mm
in stock
$87.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −30mm
Edge thickness te 8.6mm
Center thickness tc 2mm
Back focal length fb −31.3mm
Radius of curvature r 15.57mm
Centration ＜1′
details
SLB-50-100NIR1
50mm 100mm
6-12 weeks
$128.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −100mm
Edge thickness te 9.4mm
Center thickness tc 3mm
Back focal length fb −102.0mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-30-100NIR1
30mm 100mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −100mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −101.3mm
Radius of curvature r 51.9mm
Centration ＜1′

You must be logged in to ask questions

These simple negative lenses have many uses. Alone they form a virtual image of a distant object
or collimated light source. Used in combination with other optics they reduce the power of the
system. Sharp edges which are common in negative lenses are removed by beveling in order to
reduce the likelihood of chipping.
