TSDS-2
TSDS stages are made for use in 1E-6 Torr vacuum or clean room environments and feature Opto Sigma's EXC™ precision bearing ways. These bearing ways are not separate parts, as with competing stages, but processed directly into the body and base of the stage resulting in the highest stiffness, straightness and smoothness of any stage on the market. They remain unmatched in overall performance to this day. TSDS stages are made completely from hardened 440C stainless steel for excellent cleanliness and corrosion resistance. Both the stage and the stainless steel micrometer head (included) have vented attachment holes and are lubricated with a high-grade vacuum grease (YVAC2).
Customize product
Filters
Enabled filters :
Remove all filters
| Name | Stage Size | Travel | Load Capacity | Mounting Thread | Delivery | Price | Add to cart | |||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
i
XY Axis Stainless Steel Extended Contact Translation Stages

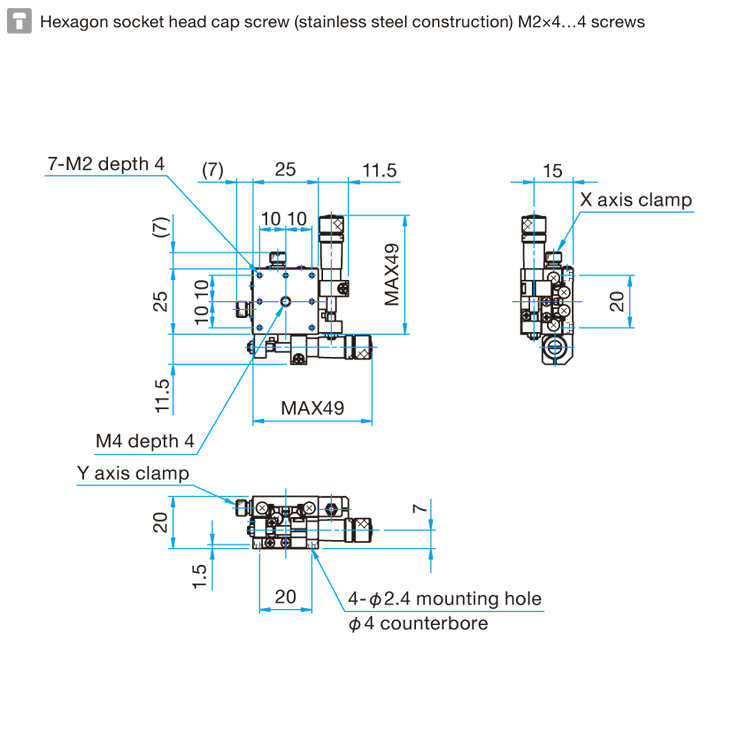

TSDS-252S |
25×25mm | ±3mm | 49N (5.0kg) |
2 weeks
|
$953.00
|
|
|
|||||||||||||||||||||||||||||||||||||
|
i
40X40mm EXC Bearing, Vacuum Compatible, Stainless Steel, XY-Axis Stage, Center Micrometer, +/-6.5mm, M3 Threads
TSDS-402S |
40×40mm | ±6.5mm | 147N (15.0kg) | M3 |
in stock
|
$1,005.00
|
|
|
||||||||||||||||||||||||||||||||||||
|
i
60X60mm EXC Bearing, Vacuum Compatible, Stainless Steel, XY-Axis Stage, Side Micrometer, +/-6.5mm, M4 Threads
TSDS-602S |
60×60mm | ±6.5mm | 343N (35.0kg) | M4 |
6-12 weeks
|
$1,085.00
|
|
|
||||||||||||||||||||||||||||||||||||
|
i
65X65mm EXC Bearing, Vacuum Compatible, Stainless Steel, XY-Axis Stage, Side Micrometer, +/-6.5mm, M6 Threads
TSDS-652S-M6 |
65×65mm | ±6.5mm | 343N (35.0kg) | M6 |
in stock
|
$1,085.00
|
|
|
||||||||||||||||||||||||||||||||||||
|
i
40X40mm EXC Bearing, Vacuum Compatible, Stainless Steel, XY-Axis Stage, Center Micrometer, +/-6.5mm, M3 Threads
TSDS-402C |
40×40mm | ±6.5mm | 147N (15.0kg) | M3 |
in stock
|
$1,005.00
|
|
|
||||||||||||||||||||||||||||||||||||
|
i
40X40mm EXC Bearing, Vacuum Compatible, Stainless Steel, XY-Axis Stage, Center Micrometer, +/-6.5mm, 6-32 Threads
TSDS-402SUU |
40×40mm | ±6.5mm | 147N (15.0kg) | 6-32UNC |
in stock
|
$1,005.00
|
|
|
||||||||||||||||||||||||||||||||||||
|
i
65X65mm EXC Bearing, Vacuum Compatible, Stainless Steel, XY-Axis Stage, Center Micrometer, +/-6.5mm, M6 Threads
TSDS-652C-M6 |
65×65mm | ±6.5mm | 343N (35.0kg) | M6 |
6-12 weeks
|
$1,085.00
|
|
|
||||||||||||||||||||||||||||||||||||
|
i
65X65mm EXC Bearing, Vacuum Compatible, Stainless Steel, XY-Axis Stage, Side Micrometer, +/-6.5mm, 1/4-20 Threads
TSDS-652SUU |
65×65mm | ±6.5mm | 343N (35.0kg) | 1/4-20UNC |
6-12 weeks
|
$1,085.00
|
|
|
||||||||||||||||||||||||||||||||||||
|
i
XY Axis Stainless Steel Extended Contact Translation Stages
TSDS-252C |
25×25mm | ±3mm | 49N (5.0kg) |
2 weeks
|
$953.00
|
|
|
|||||||||||||||||||||||||||||||||||||
|
i
40X40mm EXC Bearing, Vacuum Compatible, Stainless Steel, XY-Axis Stage, Center Micrometer, +/-6.5mm, 6-32 Threads
TSDS-402CUU |
40×40mm | ±6.5mm | 147N (15.0kg) | 6-32UNC |
6-12 weeks
|
$1,005.00
|
|
|
||||||||||||||||||||||||||||||||||||
|
i
60X60mm EXC Bearing, Vacuum Compatible, Stainless Steel, XY-Axis Stage, Center Micrometer, +/-6.5mm, M4 Threads
TSDS-602C |
60×60mm | ±6.5mm | 343N (35.0kg) | M4 |
2 weeks
|
$1,085.00
|
|
|
||||||||||||||||||||||||||||||||||||
|
i
65X65mm EXC Bearing, Vacuum Compatible, Stainless Steel, XY-Axis Stage, Center Micrometer, +/-6.5mm, 1/4-20 Threads
TSDS-652CUU |
65×65mm | ±6.5mm | 343N (35.0kg) | 1/4-20UNC |
6-12 weeks
|
$1,085.00
|
|
|
