X-Axis Vacuum Compatible Stainless Steel Piezomotor Linear Stages

TSDS-X-PDM

In stock

SKU

TSDS-X-PDM

TSDS-X-PDM x-axis piezomotor linear stages are the stainess steel, vacuum compatible versions of our flagship EXC stages.

Add to Wish List

Customize product

Filters

Enabled filters :

Remove all filters

Attention

Actuator mounting brackets may extend above the top surface of some stages.
Note that based upon payload size, rated travel could be reduced.

Name

Stage Size

Mounting Thread

Delivery

Price

Add to cart

details

TSDS-401S-PDM

40×40mm

2-3 weeks

$1,470.00

Travel Range	13mm
Load Capacity	3kg
Lead of Actuator	0.25mm
Actuator Resolution	20nm
Guide Method	Extended Contact Ball Bearing Guide
Primary Material	Hardened Stainless Steel
Finish	Clean Passivated
Travel Accuracy / Straightness	0.5um
Travel Accuracy / Pitch	30arcsec
Travel Accuracy / Yaw	25arcsec
Max. Moment Capacity / Pitch	3.0Nm
Max. Moment Capacity / Roll	3.7Nm
Max. Moment Capacity / Yaw	3.5
Moment Stiffness / Pitch	1.8arcsec/Ncm
Moment Stiffness / Roll	1.1arcsec/Ncm
Moment Stiffness / Yaw	1.1
Parallelism	30um
Running Parallelism	30um

details

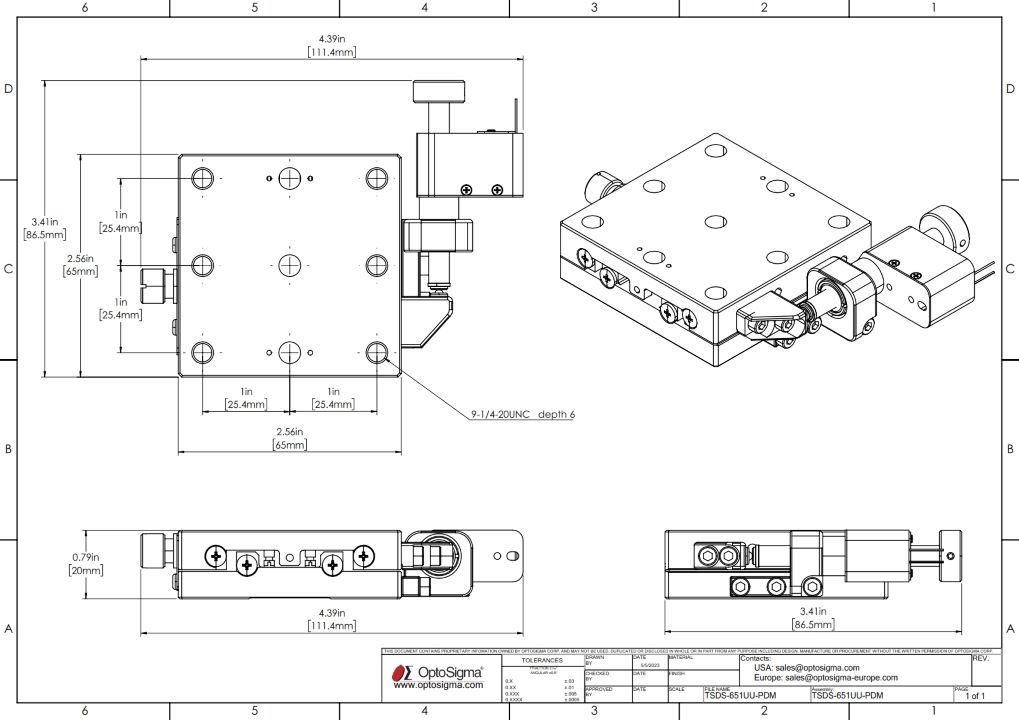

TSDS-651SUU-PDM

65×65mm

1/4-20UNC

2-3 weeks

$1,518.00

Travel Range	13mm
Load Capacity	24kg
Actuator Position	Side
Lead of Actuator	0.25mm
Actuator Resolution	20nm
Guide Method	Extended Contact Ball Bearing Guide
Primary Material	Hardened Stainless Steel
Finish	Clean Passivated
Travel Accuracy / Straightness	0.5um
Travel Accuracy / Pitch	25arcsec
Travel Accuracy / Yaw	15arcsec
Max. Moment Capacity / Pitch	13.0Nm
Max. Moment Capacity / Roll	14.7Nm
Max. Moment Capacity / Yaw	10
Moment Stiffness / Pitch	0.08arcsec/Ncm
Moment Stiffness / Roll	0.05arcsec/Ncm
Moment Stiffness / Yaw	0.08
Parallelism	15um
Running Parallelism	7um

details

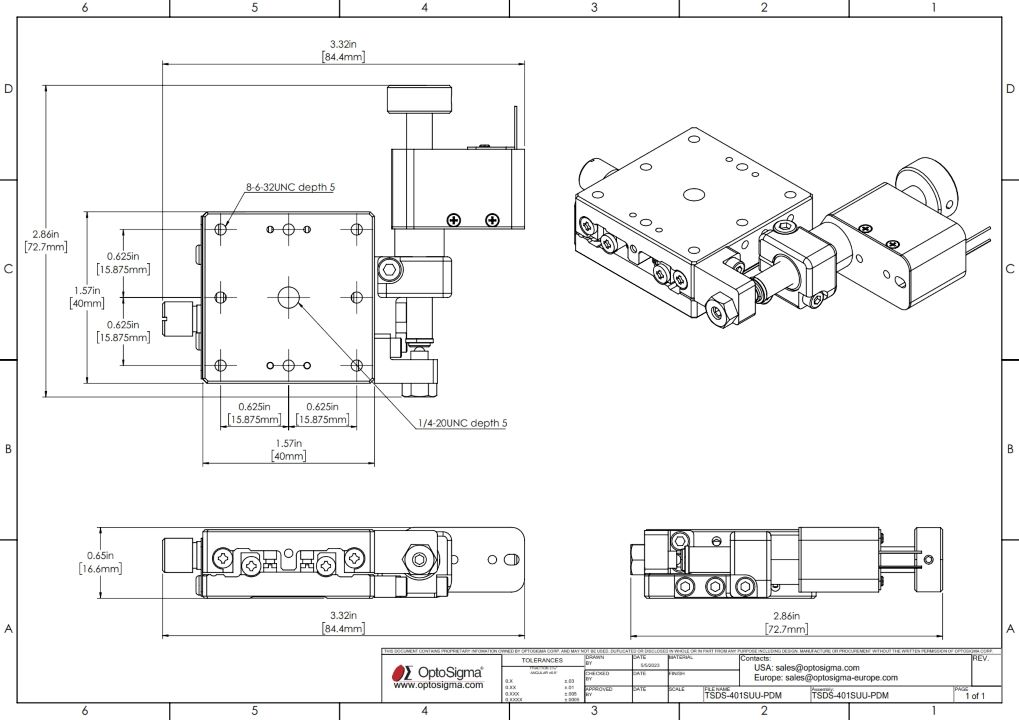

TSDS-401SUU-PDM

40×40mm

6-32UNC

2-3 weeks

$1,470.00

Travel Range	13mm
Load Capacity	3kg
Actuator Position	Side
Lead of Actuator	0.25mm
Actuator Resolution	20nm
Guide Method	Extended Contact Ball Bearing Guide
Primary Material	Hardened Stainless Steel
Finish	Clean Passivated
Travel Accuracy / Straightness	0.5um
Travel Accuracy / Pitch	30arcsec
Travel Accuracy / Yaw	25arcsec
Max. Moment Capacity / Pitch	3.0Nm
Max. Moment Capacity / Roll	3.7Nm
Max. Moment Capacity / Yaw	3.5
Moment Stiffness / Pitch	1.8arcsec/Ncm
Moment Stiffness / Roll	1.1arcsec/Ncm
Moment Stiffness / Yaw	1.1
Parallelism	30um
Running Parallelism	30um

details

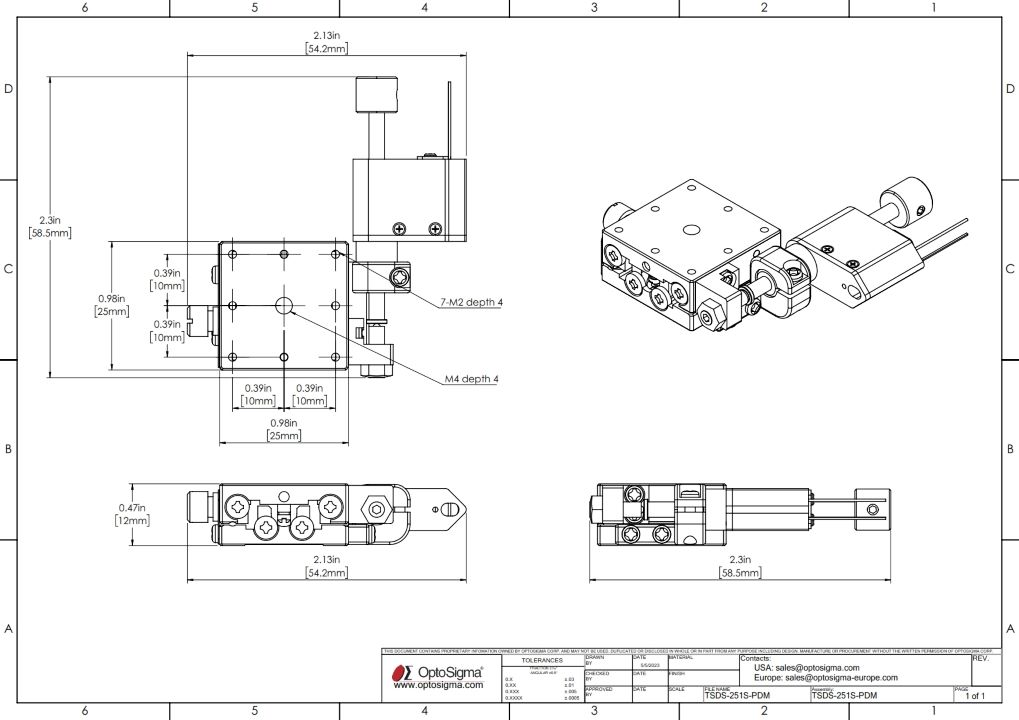

TSDS-251S-PDM

25×25mm

2-3 weeks

$1,517.00

Travel Range	6mm
Load Capacity	0.6kg
Lead of Actuator	0.25mm
Actuator Resolution	20nm
Guide Method	Extended Contact Ball Bearing Guide
Primary Material	Hardened Stainless Steel
Finish	Clean Passivated
Travel Accuracy / Straightness	2.5um
Travel Accuracy / Pitch	-
Travel Accuracy / Yaw	-
Max. Moment Capacity / Pitch	1.0Nm
Max. Moment Capacity / Roll	1.0Nm
Max. Moment Capacity / Yaw	-
Moment Stiffness / Pitch	5.0arcsec/Ncm
Moment Stiffness / Roll	5.0arcsec/Ncm
Moment Stiffness / Yaw	-
Parallelism	80um
Running Parallelism	15um

details

TSDS-651S-M6-PDM

65×65mm

2-3 weeks

$1,518.00

Travel Range	13mm
Load Capacity	24kg
Actuator Position	Side
Lead of Actuator	0.25mm
Actuator Resolution	20nm
Guide Method	Extended Contact Ball Bearing Guide
Primary Material	Hardened Stainless Steel
Finish	Clean Passivated
Travel Accuracy / Straightness	0.5um
Travel Accuracy / Pitch	25arcsec
Travel Accuracy / Yaw	15arcsec
Max. Moment Capacity / Pitch	13.0Nm
Max. Moment Capacity / Roll	14.7Nm
Max. Moment Capacity / Yaw	10
Moment Stiffness / Pitch	0.08arcsec/Ncm
Moment Stiffness / Roll	0.05arcsec/Ncm
Moment Stiffness / Yaw	0.08
Parallelism	15um
Running Parallelism	7um

You must be logged in to ask questions

TSDS-X-PDM x-axis piezomotor linear stages are the stainess steel, vacuum compatible versions of our flagship EXC stages.
