Controllers for Standard Motorized Stages

CONTROL-OSMS/HPS/VSGSP

Controllers for Standard Motorized Stages
In stock
SKU
CONTROL-OSMS/HPS/VSGSP
From 1 to 8 axis
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Driving Current Driving Motor Number of Control Axes Delivery Price Add to cart
i
3 Axis Stage Controller
HSC-103
0.8 or 1.4A/Phase 5-phase stepping motor 3 Axes
in stock
$2,996.00
Part Name 3 axis Stage Controller
i
2 axis Stage Controller
GSC-02A-P
6-12 weeks
$891.00
Part Name 2 axis Stage Controller
i
2-axis Stage Controller with Microstep driver
SHOT-702H
0.3 − 1.4A/phase 5-phase stepping motor 2 Axes
6-12 weeks
$1,576.00
Part Name 2 axis Stage Controller
i
3-Axis, Closed-Loop, Five-Phase Stepper Motor Controller
SHRC-203
0.3 − 1.4A/phase 5-phase stepping motor 3 Axes
2 weeks
$4,497.00
Power Requirements 100-240VAC +/-10%, 50/60Hz
Current Consumption 2A
Operating / Storage Temperatures 5 to 40C/-20 to 60C
Operating Humidity (without condensation) 20% to 80%RH
External Dimensions 265x99x265mm
Coordinate Indication Range +/-999,999,999
Maximum Travel to Set From -2,147,483,648 to 2,147,483,647 (pulses)
Min/Max Driving Speed 1 to 1 million pulses per second
Acceleration/ Deceleration 1-1,000ms
Micro-Stepping Highest Division 8,000 micro pulses/step
Control Interfaces Ethernet, GP-IB, USB
Main Function Summary Controller with micro-step driver, Stored program control, Glass scale feedback control, Circular and linear interpolation, Absolute and relative position drive, Jog operation, Machine and theoretical origin, Deceleration and emergency stop, Speed setting, Motor free / hold
Input/Output Specs Proximity and origin sensors, CW(+) and CCW(-) limits, 6 general purpose inputs and 6 general purpose outputs, 18 control inputs and 5 control outputs, Trigger output
i

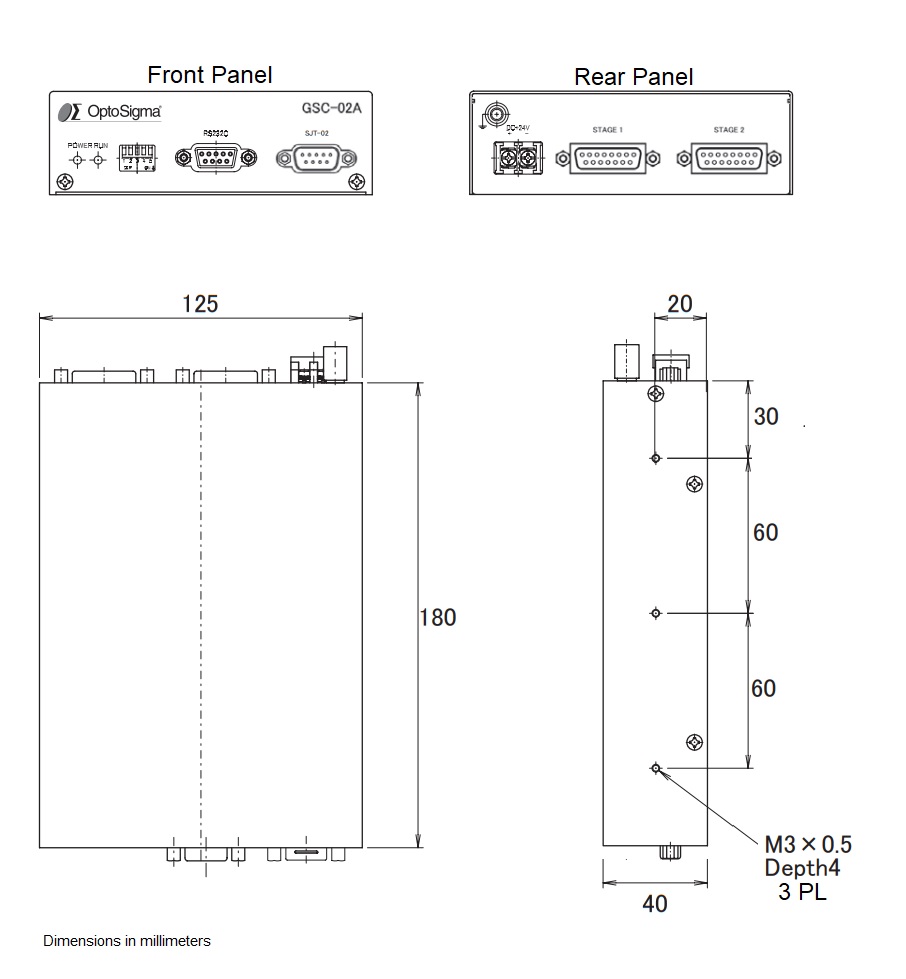

2-Axis Stepper Motor Controller
GSC-02A
0.3 − 0.8A/Phase 5-phase stepping motor 2 Axes
6-12 weeks
$821.00
Part Name 2 axis Stage Controller
Min Driving Speed 1pps
Max. Driving Speed 30,000pps
Acceleration/Deceleration Time 0~1,000ms
Driving Current 0.3 − 0.8A/phase
Number of Control Axes 2 axes
Operating Temperature 5 - 40℃
External Dimensions (W×H×D) 180×40×125mm
i
1-Axis Stepper Motor Controller, AC Power Adaptor Included
GSC-01-P
in stock
$626.00
Min Driving Speed 100pps
Max. Driving Speed 20,000pps
Acceleration/Deceleration Time 0~1,000ms
Driving Current 0.3 − 0.8A/phase
Number of Control Axes 1 axis
Operating Temperature 5 - 40℃
External Dimensions (W×H×D) 47×90×125mm
i
2 axis Stage Controller with Microstepping
SHOT-702
0.3 − 1.4A/phase 5-phase stepping motor 2 Axes
6-12 weeks
$1,576.00
Part Name 2 axis Stage Controller
