Controllers for Standard Motorized Stages

CONTROL-OSMS/HPS/VSGSP

More about
Controllers for Standard Motorized Stages
In stock
SKU
CONTROL-OSMS/HPS/VSGSP
From 1 to 8 axis
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
Driving Motor
Number of Control Axes
Driving Current
Delivery Price Add to cart
details

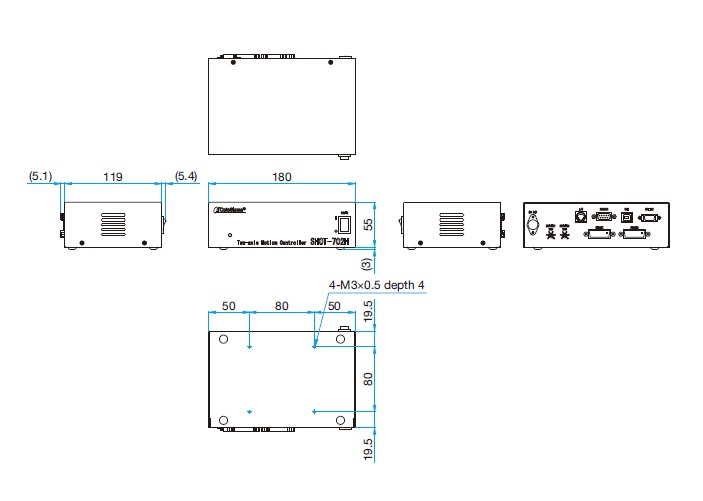

SHOT-702H
5-phase stepping motor 2 Axes
2 weeks
$1,837.00
Part Name 2 axis Stage Controller
details
GSC-02C
5-phase stepping motor 2 Axes
in stock
$1,005.00
Min/Max. Driving Speed 1pps / 30,000pps
Acceleration/Deceleration 1 to 1,000ms
MIcro-Step Capability Half Step( 2 pulses per step)
Driving Current 0.2 - 0.8A/phase
Power Voltage 24VDC (2A)
Power Consumption 48W (VA)
Operating Temperature 5 - 40C
External Dimensions (WxHxD) 180x40x125mm
Optional Joy Stick Model SJT-02
Recommended RS-232C Cable RS232C/STR-2A
Recommended RS-232C-to-USB Adaptor Model 561-2751
AC-to-DC Power Adaptor Model (100-240VAC, 50/60Hz) AC-ADP-2427 (sold separately)
details
GSC-01-P
6-12 weeks
$490.00
Min Driving Speed 100pps
Max. Driving Speed 20,000pps
Acceleration/Deceleration Time 0～1,000ms
Driving Current 0.3 − 0.8A/phase
Number of Control Axes 1 axis
Operating Temperature 5 - 40℃
External Dimensions (W×H×D) 47×90×125mm
details
SHRC-203
5-phase stepping motor 3 Axes 0.3 − 1.4A/phase
6-12 weeks
$5,092.00
Power Requirements 100-240VAC +/-10%, 50/60Hz
Current Consumption 2A
Operating / Storage Temperatures 5 to 40C/-20 to 60C
Operating Humidity (without condensation) 20% to 80%RH
External Dimensions 265x99x265mm
Coordinate Indication Range +/-999,999,999
Maximum Travel to Set From -2,147,483,648 to 2,147,483,647 (pulses)
Min/Max Driving Speed 1 to 1 million pulses per second
Acceleration/ Deceleration 1-1,000ms
Micro-Stepping Highest Division 8,000 micro pulses/step
Control Interfaces Ethernet, GP-IB, USB
Main Function Summary Controller with micro-step driver, Stored program control, Glass scale feedback control, Circular and linear interpolation, Absolute and relative position drive, Jog operation, Machine and theoretical origin, Deceleration and emergency stop, Speed setting, Motor free / hold
Input/Output Specs Proximity and origin sensors, CW(+) and CCW(-) limits, 6 general purpose inputs and 6 general purpose outputs, 18 control inputs and 5 control outputs, Trigger output
details
MAC-04
5-phase stepping motor 4 Axes
in stock
$3,961.00
Power Supply DC24 [V] / 6.5 [A]
AC adaptor AC100 to 240 [V], 50/60 [Hz]
Rated Power 156 [W]
Operating temperature 5 to 40 [℃]
Storage temperature -20 to 60 [℃]
External dimensions 300 x 202 x 104 [mm]
Protection Mechanical IEC 60529
Maximum driving speed (F) 1 to 10000 [PPS]
Minimum driving speed (S) 1 to 10000 [PPS]
Acceleration/deceleration time (R) 1 to 1000 [ms]
Microstepping Up to 250
Sensor input Origin sensor/proximity sensor/CW (-) limit/CCW (+) limit
Method of return to origin MINI method/MARK method/Standard method
Median point detection method/Not return origin
(You can change method of ORG by Memory Switch)
EMC standards UNE EN IEC 61326-1:2013
UNE EN IEC 61000-3-3:2013 +A1:2020
UNE EN IEC 61000—3-2:2019
Electrical safety standards EN 61010-1:2010 + A1:2019 + AC:2019-04
details
HSC-103
5-phase stepping motor 3 Axes
2 weeks
$3,492.00
Part Name 3 axis Stage Controller
details
GSC-02C-P
5-phase stepping motor 2 Axes
6-12 weeks
$1,107.00
Min/Max. Driving Speed 1pps / 30,000pps
Acceleration/Deceleration 1 to 1,000ms
MIcro-Step Capability Half Step( 2 pulses per step)
Driving Current 0.2 - 0.8A/phase
Power Voltage 24VDC (2A)
Power Consumption 48W (VA)
Operating Temperature 5 - 40C
External Dimensions (WxHxD) 180x40x125mm
Optional Joy Stick Model SJT-02
Recommended RS-232C Cable RS232C/STR-2A
Recommended RS-232C-to-USB Adaptor Model 561-2751
AC-to-DC Power Adaptor Model (100-240VAC, 50/60Hz) AC-ADP-2427 (included)
