Controllers for SGSP-Series 5-Phase Stepper-Motor Actuators

CONTROL-SGSP-ACT

Controllers for SGSP-Series 5-Phase Stepper-Motor Actuators
In stock
SKU
CONTROL-SGSP-ACT
1-, or 2-axis controller with a built-in 5-phase stepping motor driver.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
Driving Motor
Number of Control Axes
Driving Current
Delivery Price Add to cart
details
GSC-02C-P
5-phase stepping motor 2 Axes
6-12 weeks
$1,119.00
Min/Max. Driving Speed 1pps / 30,000pps
Acceleration/Deceleration 1 to 1,000ms
MIcro-Step Capability Half Step( 2 pulses per step)
Driving Current 0.2 - 0.8A/phase
Power Voltage 24VDC (2A)
Power Consumption 48W (VA)
Operating Temperature 5 - 40C
External Dimensions (WxHxD) 180x40x125mm
Optional Joy Stick Model SJT-02
AC-to-DC Power Adaptor Model (100-240VAC, 50/60Hz) AC-ADP-2427 (included)
details

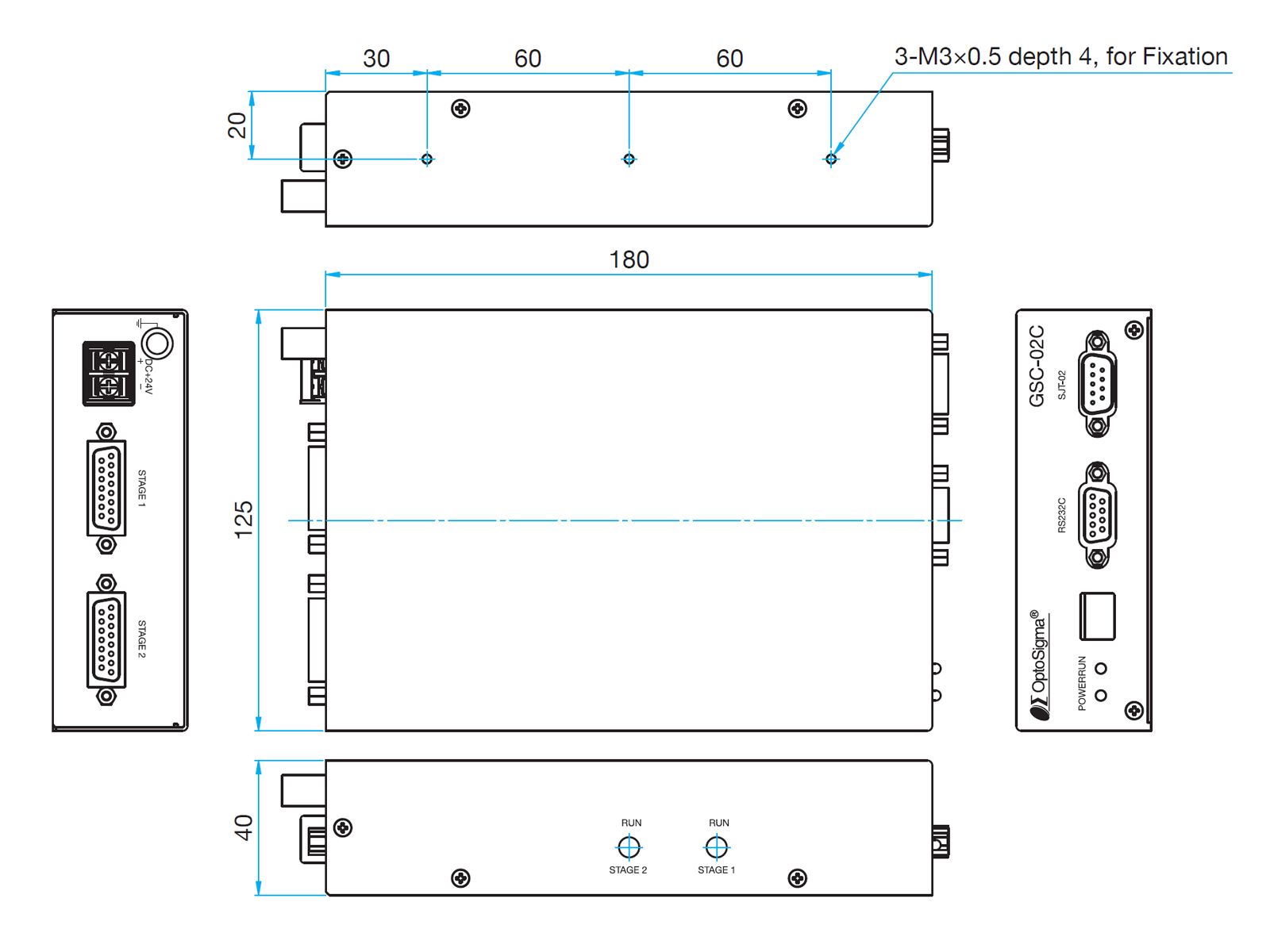

GSC-02C
5-phase stepping motor 2 Axes
in stock
$1,016.00
Min/Max. Driving Speed 1pps / 30,000pps
Acceleration/Deceleration 1 to 1,000ms
MIcro-Step Capability Half Step( 2 pulses per step)
Driving Current 0.2 - 0.8A/phase
Power Voltage 24VDC (2A)
Power Consumption 48W (VA)
Operating Temperature 5 - 40C
External Dimensions (WxHxD) 180x40x125mm
Optional Joy Stick Model SJT-02
AC-to-DC Power Adaptor Model (100-240VAC, 50/60Hz) AC-ADP-2427 (sold separately)
details
GSC-01A-P
5-phase stepping motor 1 Axis 0.25 − 0.85A/phase
6-12 weeks
$694.00
Min. Driving Speed 500pps
Max. Driving Speed 5,000pps
Acceleration/Deceleration Time 0-1,000ms
Selectable Driving Current Values 0.2 - 0.8A/phase
Number of Control Axes 1 axis
Operating Temperature 5 - 40 C
External Dimensions (WxHxD) 47x90x125mm
details
GSC-01A
5-phase stepping motor 1 Axis 0.25 − 0.85A/phase
2 weeks
$613.00
Min. Driving Speed 500pps
Max. Driving Speed 5,000pps
Acceleration/Deceleration Time 0-1,000ms
Selectable Driving Current Values 0.2 - 0.8A/phase
Number of Control Axes 1 axis
Operating Temperature 5 - 40 C
External Dimensions (WxHxD) 47x90x125mm
