Fast Positioning Rack-and-Pinion Dovetail XY Stages

TARW_TAR-2

More about
Fast Positioning Rack-and-Pinion Dovetail XY Stages
In stock
SKU
TARW_TAR-2
Rack and pinion dovetail translation stages, suitable for frequent use that requires quick movement and long travel.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
Stage Size
Travel
Load Capacity
Delivery Price Add to cart
details
TARW-25502
25×50mm 10mm 78.4N (8.0kg)
2 weeks
$335.00
Lead of Actuator about 20mm
Vernier Scale 0.1mm
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch -
Travel Accuracy / Straightness 20μm
Max. Moment Capacity / Pitch 0.6N･m
Max. Moment Capacity / Roll 0.6N･m
Max. Moment Capacity / Yaw 1.0N･m
Moment Stiffness / Pitch 3.67″/N･cm
Moment Stiffness / Roll 3.67″/N･cm
Parallelism 100μm
details

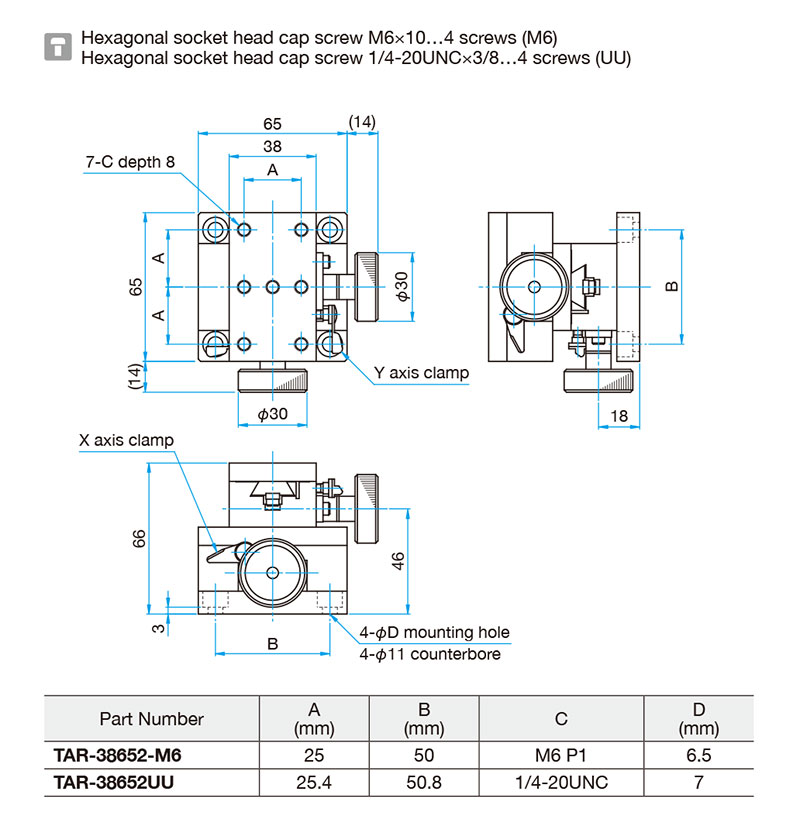

TAR-38652-M6
38×65mm ±15mm 147N (15.0kg)
in stock
$452.00
Lead of Actuator about 20mm
Vernier Scale 0.1mm
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch -
Travel Accuracy / Straightness 20μm
Max. Moment Capacity / Pitch 2.9N･m
Max. Moment Capacity / Roll 1.5N･m
Max. Moment Capacity / Yaw 2.0N･m
Moment Stiffness / Pitch 0.15″/N･cm
Moment Stiffness / Roll 0.15″/N･cm
Parallelism 140μm
details
TAR-381202UU
38×120mm X axis : ±40mm　Y axis : ±15mm 245N (25.0kg)
in stock
$598.00
Lead of Actuator about 20mm
Vernier Scale 0.1mm
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch -
Travel Accuracy / Straightness 30μm
Max. Moment Capacity / Pitch 3.0N･m
Max. Moment Capacity / Roll 1.5N･m
Max. Moment Capacity / Yaw 2.5N･m
Moment Stiffness / Pitch 0.3″/N・cm
Moment Stiffness / Roll 0.15″/N･cm
Parallelism 160μm
details

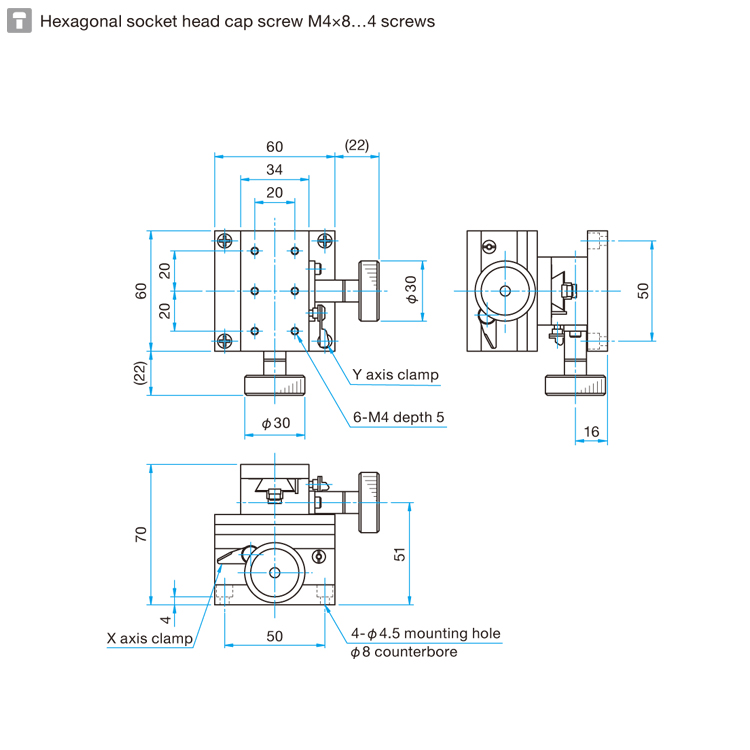

TAR-34602
34×60mm ±15mm 147N (15.0kg)
2 weeks
$407.00
Lead of Actuator about 20mm
Vernier Scale 0.1mm
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch -
Travel Accuracy / Straightness 20μm
Max. Moment Capacity / Pitch 1.5N･m
Max. Moment Capacity / Roll 1.5N･m
Max. Moment Capacity / Yaw 2.0N･m
Moment Stiffness / Pitch 1.2″/N･cm
Moment Stiffness / Roll 1.2″/N･cm
Parallelism 140μm
details
TAR-38652UU
38×65mm ±15mm 147N (15.0kg)
in stock
$452.00
Lead of Actuator about 20mm
Vernier Scale 0.1mm
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch -
Travel Accuracy / Straightness 20μm
Max. Moment Capacity / Pitch 2.9N･m
Max. Moment Capacity / Roll 1.5N･m
Max. Moment Capacity / Yaw 2.0N･m
Moment Stiffness / Pitch 0.15″/N･cm
Moment Stiffness / Roll 0.15″/N･cm
Parallelism 140μm
details

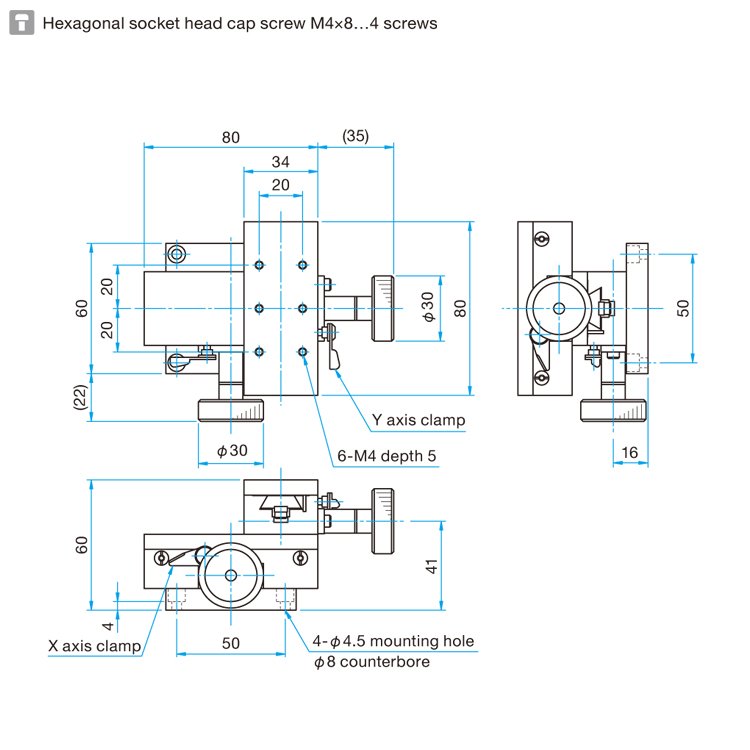

TAR-34802
34×80mm ±25mm 196N (20.0kg)
2 weeks
$455.00
Lead of Actuator about 20mm
Vernier Scale 0.1mm
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch -
Travel Accuracy / Straightness 30μm
Max. Moment Capacity / Pitch 1.5N･m
Max. Moment Capacity / Roll 1.5N･m
Max. Moment Capacity / Yaw 2.6N･m
Moment Stiffness / Pitch 1.1″/N･cm
Moment Stiffness / Roll 1.1″/N･cm
Parallelism 160μm
details

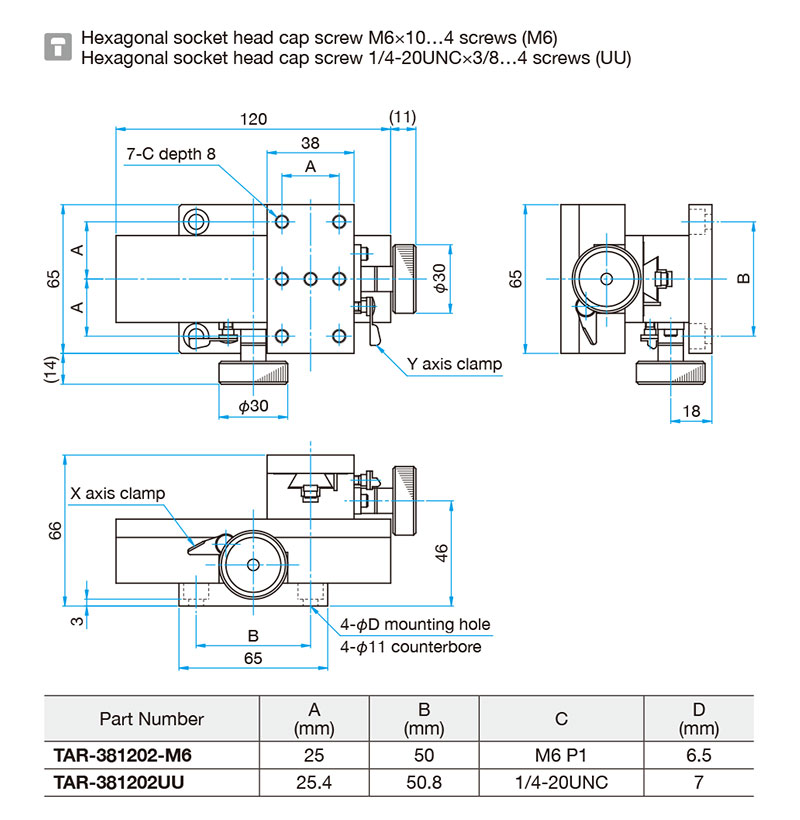

TAR-381202-M6
38×120mm X axis : ±40mm　Y axis : ±15mm 245N (25.0kg)
in stock
$598.00
Lead of Actuator about 20mm
Vernier Scale 0.1mm
Guide Method Dovetail method
Primary Material Brass
Finish Super black chrome
Screw Pitch -
Travel Accuracy / Straightness 30μm
Max. Moment Capacity / Pitch 3.0N･m
Max. Moment Capacity / Roll 1.5N･m
Max. Moment Capacity / Yaw 2.5N･m
Moment Stiffness / Pitch 0.3″/N・cm
Moment Stiffness / Roll 0.15″/N･cm
Parallelism 160μm
