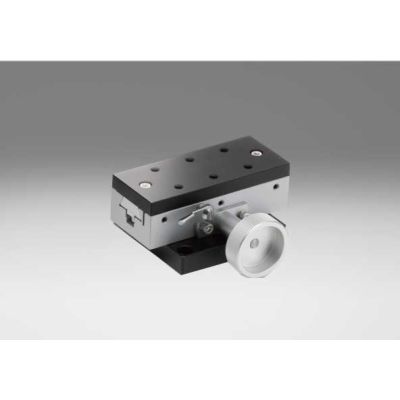

34X80mm Dovetail Bearing, Brass, X-Axis Stage, Rack&Pinion Drive, +/-25mm, M4 Threads

TAR-34801

Rack and pinion dovetail translation stages, suitable for frequent use that requires quick movement and long travel.

More Information
Name	34X80mm Dovetail Bearing, Brass, X-Axis Stage, Rack&Pinion Drive, +/-25mm, M4 Threads
Weight	0.8000kgs
Guide	Use adaptor plates for TAR (SP-109 (WEB Reference Catalog Code/W6061) and SP-131（ (WEB Reference Catalog Code/W6073）) to mount post holders and various stages.
Attention	-
Image Label	Rack and Pinion Dovetail X Stage 34×80mm Size Metric Threads 50mm Travel
Stage Size	34×80mm
Travel	±25mm
Load Capacity	196N (20.0kg)
Guide Method	Dovetail method
Primary Material	Brass
Finish	Super black chrome
Lead of Actuator	about 20mm
Vernier Scale	0.1mm
Travel Accuracy / Straightness	30μm
Max. Moment Capacity / Pitch	3.8N･m
Max. Moment Capacity / Roll	1.5N･m
Max. Moment Capacity / Yaw	2.6N･m
Moment Stiffness / Pitch	0.26″/N･cm
Moment Stiffness / Roll	0.82″/N･cm
Parallelism	60μm

In stock

SKU

TAR-34801

$259.00

Rack and pinion dovetail translation stages, suitable for frequent use that requires quick movement and long travel.
