Enabled filters :
| Name | Travel | Load Capacity | Delivery | Price | Add to cart | |||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
i

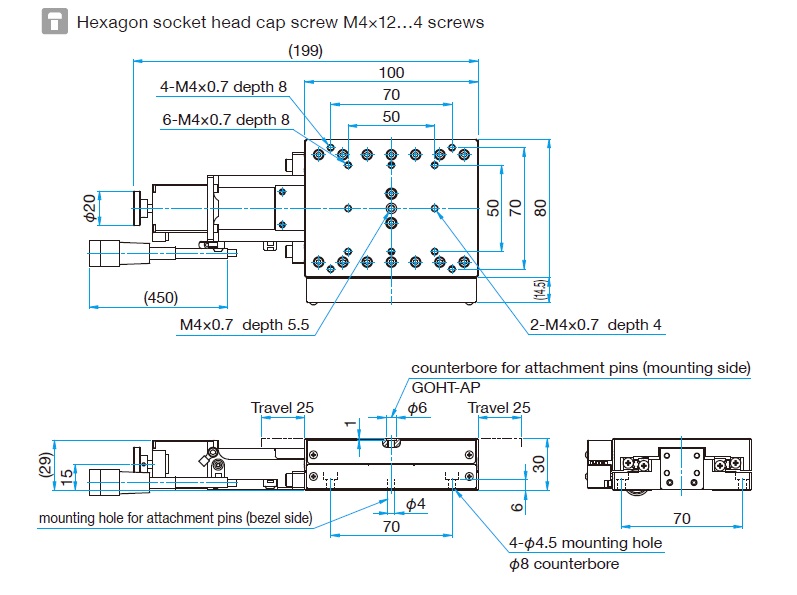

Motorized Aluminum Extended Contact Single Axis Stage 80mm Size 50mm Travel
HPS80-50X-M5 |
50mm | 73.5N (7.5kg) |
6-12 weeks
|
$1,020.00
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
i

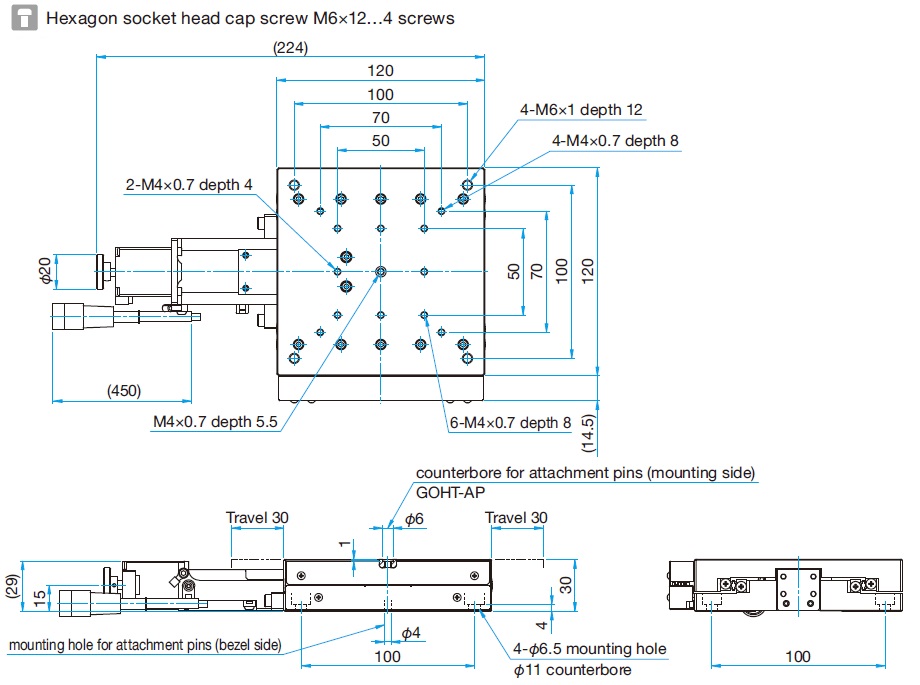

High Performance Motorized Stages
HPS120-60X-M5 |
60mm | 98N (10.0kg) |
in stock
|
$1,124.00
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
i

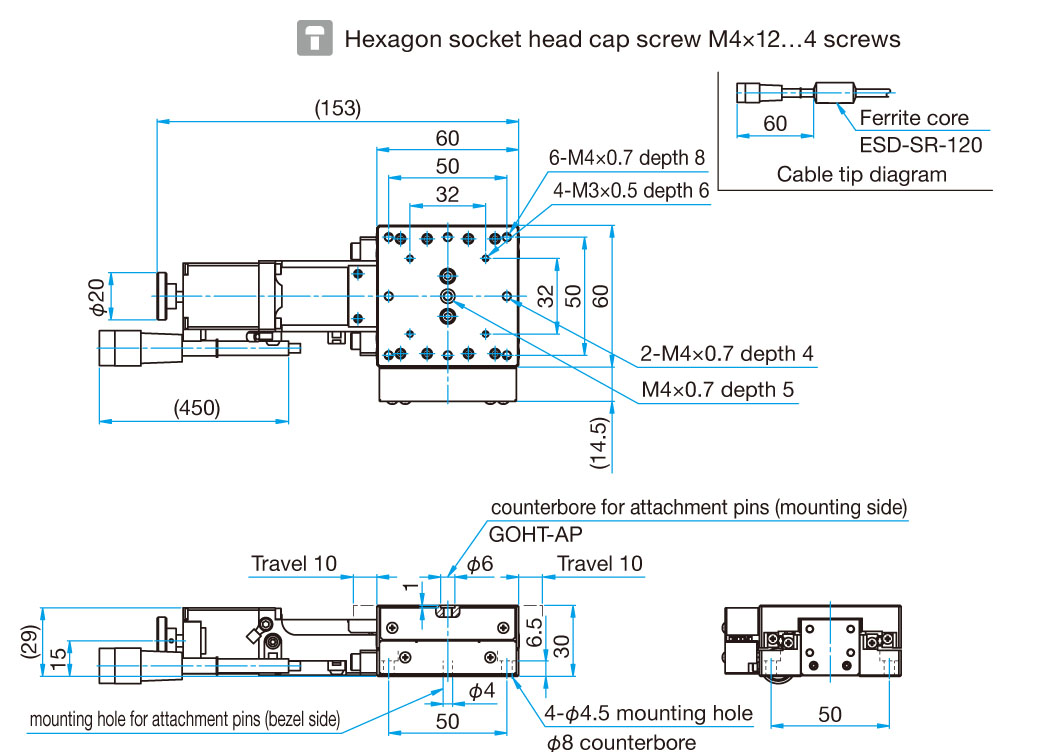

Motorized Aluminum Extended Contact Single Axis Stage 60mm Size 20mm Travel
HPS60-20X-M5 |
20mm | 49N (5.0kg) |
2 weeks
|
$645.00
|
|
|
You must be logged in to ask questions
◦Extended contact ball guides make it possible to offer a price lower than the crossed roller guide TAMM series.
Compatible Stepper Motor Controllers
Groups |
Description |
Control Axis Options |
Computer Interface Options |
Micro Stepping |
Min. / Max. Driving Speed |
Additional Features |
Relative Price |
|
Standard Stepper Controllers |
The GSC series controllers are our most cost-effective stepper controller and provide basic control for the 5-phase stepper motor actuators and stages. Half stepping is supported.
|
RS232C |
Up to 2 steps |
100 Pulses/Sec 20,000 Pulses/Sec
|
Limit switch detection, Requires AC-ADP-2427 power supply |
$ |
|
|
Preset Position Controller |
The GIP-101B is a single-channel controller featuring five preset, programmable positions. It can also be used for most stepper motor stages and actuators. It supports microstepping up to 250 micro steps per step. |
|
USB |
Up to 250 steps |
1 Pulse/Sec 500,000 Pulses/Sec
|
Ideal for controlling the SIZM and SZLM motorized zoom microscopes and objective turrets |
$$$ |
|
Micro Stepping Controller |
The SHOT-702 series controller includes a micro-step driver to enable ultra-fine resolution for the stepper motor stages and actuators. |
|
RS232C, USB |
Up to 250 steps |
1 Pulse/Sec 500,000 Pulses/Sec
|
Limit switch detection, E-Break for Motor |
$$$ |
|
Low Noise Controller |
The HSC 3-axis controller is designed to provide low noise and high current capacity for driving larger stepper motor stages. The driving speed is 8X higher than the other controllers |
|
USB |
40 steps, fixed |
1 Pulse/Sec 4,000,000 Pulses/Sec
|
Low noise and vibration driver design, High driving current capacity, 3-axis Linear Interpolation, Circular Interpolation |
$$$$$$ |
|
Closed-Loop Controller |
The SHOT-GS controllers provide full closed-loop functionality for 2- or 4- axis stage systems. |
|
GPIB, RS232C, USB |
Up to 250 steps |
1 Pulse/Sec 500,000 Pulses/Sec
|
Closed-loop Control, Control programs can be stored in internal memory, Linear Interpolation (2 axes), Circular Interpolation, Requires CJ-200A control pad |
$$$$$$$ |
|
Closed Loop, Extendable Controller |
The HIT controllers can be daisy-chained together to control 8 stages. They run in a master/slave configuration and provide full closed-loop functionality |
|
RS232C, USB, Ethernet |
Up to 250 steps |
1 Pulse/Sec 500,000 Pulses/Sec
|
Can be daisy-chained to control up to 8 axes, Closed-loop control function, Requires the AC-ADP-2427 power supply for each unit. |
2-Axes: $$$ Additional Axes ea: $ |
