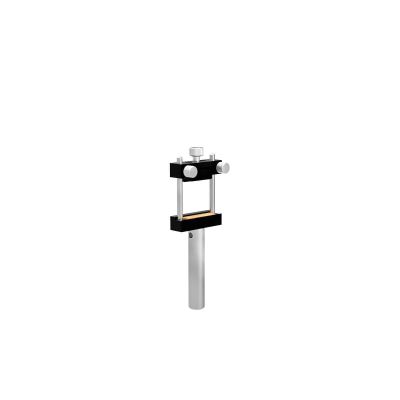

Adjustable Cylindrical Lens Holder

CHA-25

Mounts for rectangular optics.
◦The space saving sliding clamp allows optics to be placed in close proximity. The top and bottom of the lens mounting area is made of cork to prevent lenses from slipping.
More Information
Name Adjustable Cylindrical Lens Holder
Weight 0.0400lbs
Guide
  • Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention
  • Make sure to tighten the slide clamps along the two poles before tightening the lens clamp.
  • Not recommended for round lenses. Use LHA
  • WEB Reference Catalog Code/W4020
Compatible Optics Thickness <6.5mm
Compatible Optics Dimensions MAX A 30mm
Compatible Optics Dimensions MAX B 25mm
C 40mm
D 45mm
E 12mm
φF φ12mm
G 9mm
In stock
SKU
CHA-25
SGD 98.80

Delivery in : in stock

Mounts for rectangular optics.
