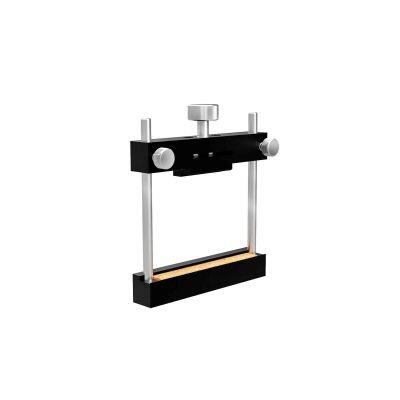

Adjustable Cylindrical Lens Holder for Maximum Size 65x60mm with M4 Thread

CHA-60-EE

×
3d-simple-product
main product photo
Mounts for rectangular optics.
◦The space saving sliding clamp allows optics to be placed in close proximity. The top and bottom of the lens mounting area is made of cork to prevent lenses from slipping.




More Information
Name Adjustable Cylindrical Lens Holder for Maximum Size 65x60mm with M4 Thread
Weight 0.1500kgs
Guide
  • Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention
  • Make sure to tighten the slide clamps along the two poles before tightening the lens clamp.
  • Not recommended for round lenses. Use LHA
    • WEB Reference Catalog Code/W4020
Image Label Adjustable Cylindrical Lens Holder for Maximum Size 65x60mm with M4 Thread
Compatible Optics Thickness ＜7.5mm
Compatible Optics Dimensions MAX A 65mm
Compatible Optics Dimensions MAX B 60mm
C 86mm
D 93mm
E 14mm
φF φ12mm
G 13.5mm
In stock
SKU
CHA-60-EE
$109.00

Delivery in : 6-12 weeks

custom product
Customize product
Add to Wish List
Mounts for rectangular optics.

Resources & Downloads
