Rotation stages with large Aperture

KSPB

More about
Rotation stages with large Aperture
In stock
SKU
KSPB
Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Stage Size Rotation Range Load Capacity Mounting Thread Delivery Price Add to cart
i
90mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Micrometer Drive, M4 Threads
KSPB-906M 		φ90mm Coarse:360°　Fine:±5° 147N (15.0kg) M4
in stock
$501.00
Stage Size φ90mm
Rotation Range Coarse:360° Fine:±5°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 41.25″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 147N(15.0kgf)
Max. Moment Capacity 5.0N･m
Moment Stiffness 0.2″/N･cm
Parallelism 50μm
Eccentricity 20μm
Wobble 20μm
i
120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Micrometer Drive, M4 Threads
KSPB-1206MH 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) M4
6-12 weeks
$974.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 31.8″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i
160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Micrometer Drive, M4 Threads
KSPB-1606MH 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) M4
6-12 weeks
$1,106.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 23.7″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm
i
90mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Hex Screw Drive, M6 Threads
KSPB-906FP-M6 		φ90mm Coarse:360°　Fine:±5° 147N (15.0kg) M6
2-3 weeks
$464.00
Stage Size φ90mm
Rotation Range Coarse:360° Fine:±5°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 147N(15.0kgf)
Max. Moment Capacity 5.0N･m
Moment Stiffness 0.2″/N･cm
Parallelism 50μm
Eccentricity 20μm
Wobble 20μm
i
120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Hex Screw Drive, M6 Threads
KSPB-1206FPH-M6 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) M6
2 weeks
$937.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i
160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Hex Screw Drive, M6 Threads
KSPB-1606FPH-M6 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) M6
6-12 weeks
$1,069.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm
i

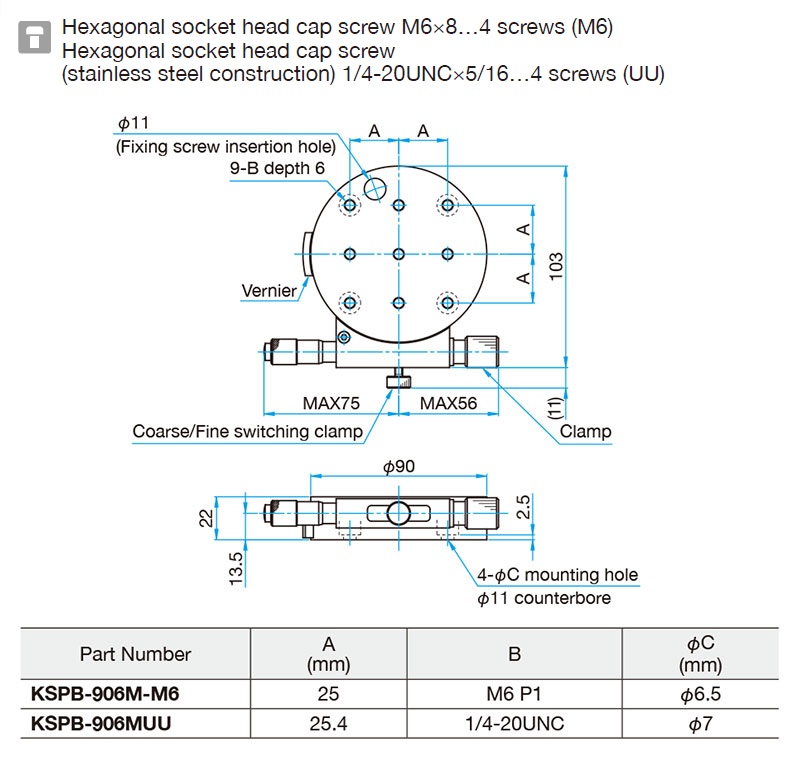

90mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Micrometer Drive, M6 Threads
KSPB-906M-M6 		φ90mm Coarse:360°　Fine:±5° 147N (15.0kg) M6
in stock
$501.00
Stage Size φ90mm
Rotation Range Coarse:360° Fine:±5°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 41.25″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 147N(15.0kgf)
Max. Moment Capacity 5.0N･m
Moment Stiffness 0.2″/N･cm
Parallelism 50μm
Eccentricity 20μm
Wobble 20μm
i

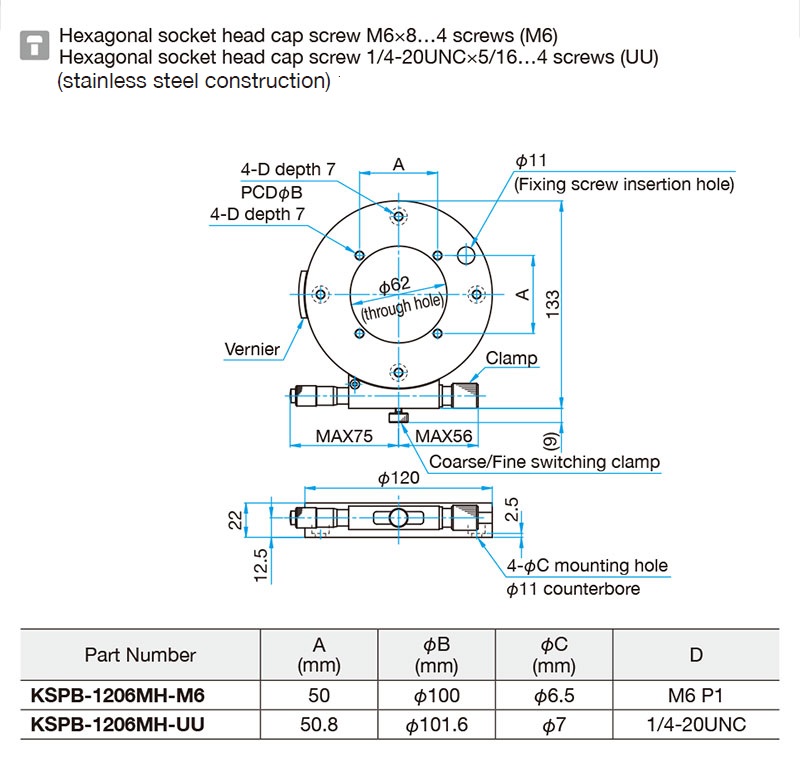

120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Micrometer Drive, M6 Threads
KSPB-1206MH-M6 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) M6
in stock
$974.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 31.8″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i

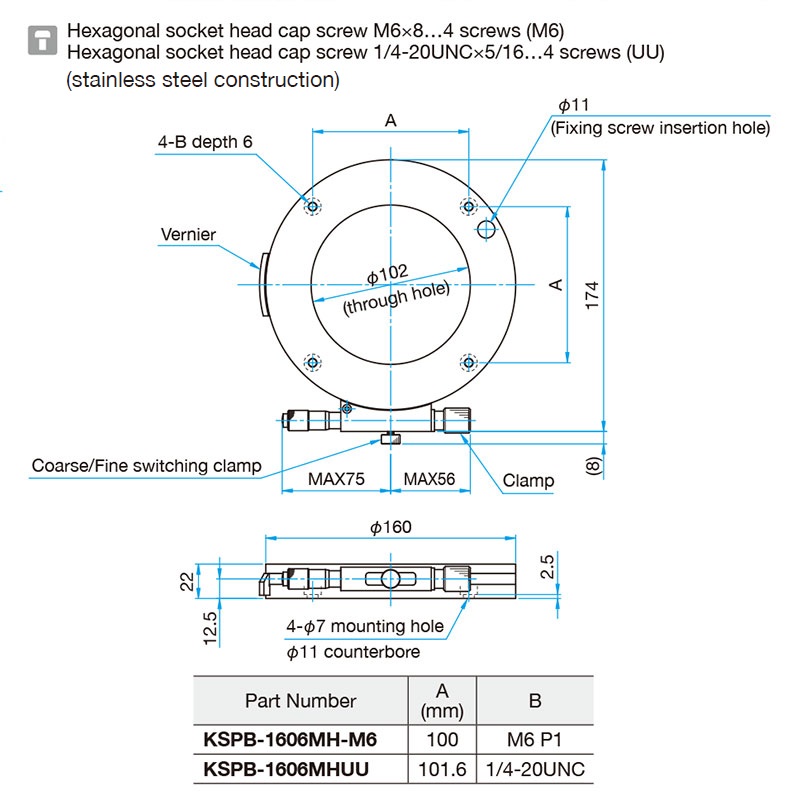

160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Micrometer Drive, M6 Threads
KSPB-1606MH-M6 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) M6
6-12 weeks
$1,106.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 23.7″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm
i
90mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Hex Screw Drive, 1/4-20 Threads
KSPB-906FPUU 		φ90mm Coarse:360°　Fine:±5° 147N (15.0kg) 1/4-20UNC
6-12 weeks
$460.00
Stage Size φ90mm
Rotation Range Coarse:360° Fine:±5°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 147N(15.0kgf)
Max. Moment Capacity 5.0N･m
Moment Stiffness 0.2″/N･cm
Parallelism 50μm
Eccentricity 20μm
Wobble 20μm
i
120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Hex Screw Drive, 1/4-20 Threads
KSPB-1206FPHUU 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) 1/4-20UNC
6-12 weeks
$935.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i
160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Hex Screw Drive, 1/4-20 Threads
KSPB-1606FPHUU 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) 1/4-20UNC
6-12 weeks
$1,066.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm
i
90mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Hex Screw Drive, M4 Threads
KSPB-906FP 		φ90mm Coarse:360°　Fine:±5° 147N (15.0kg) M4
2 weeks
$460.00
Stage Size φ90mm
Rotation Range Coarse:360° Fine:±5°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 147N(15.0kgf)
Max. Moment Capacity 5.0N･m
Moment Stiffness 0.2″/N･cm
Parallelism 50μm
Eccentricity 20μm
Wobble 20μm
i
90mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Micrometer Drive, 1/4-20 Threads
KSPB-906MUU 		φ90mm Coarse:360°　Fine:±5° 147N (15.0kg) 1/4-20UNC
in stock
$501.00
Stage Size φ90mm
Rotation Range Coarse:360° Fine:±5°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 41.25″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 147N(15.0kgf)
Max. Moment Capacity 5.0N･m
Moment Stiffness 0.2″/N･cm
Parallelism 50μm
Eccentricity 20μm
Wobble 20μm
i
120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Micrometer Drive, 1/4-20 Threads
KSPB-1206MHUU 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) 1/4-20UNC
2 weeks
$974.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 31.8″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i
160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Micrometer Drive, 1/4-20 Threads
KSPB-1606MHUU 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) 1/4-20UNC
6-12 weeks
$1,106.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution about 23.7″
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm
i
120mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-4 Deg Fine Adjustment, Hex Screw Drive, M4 Threads
KSPB-1206FPH 		φ120mm Coarse:360°　Fine:±4° 196N (20.0kg) M4
6-12 weeks
$935.00
Stage Size φ120mm
Rotation Range Coarse:360° Fine:±4°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 7.8N･m
Moment Stiffness 0.1″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 20μm
i
160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Hex Screw Drive, M4 Threads
KSPB-1606FPH 		φ160mm Coarse:360°　Fine:±3° 196N (20.0kg) M4
2 weeks
$1,066.00
Stage Size φ160mm
Rotation Range Coarse:360° Fine:±3°
Scale Readable Resolution 5′
Micrometer Readable Resolution -
Guide Method Crossed roller
Primary Material Brass
Finish Super black chrome
Load Capacity 196N(20.0kgf)
Max. Moment Capacity 9.8N･m
Moment Stiffness 0.15″/N･cm
Parallelism 50μm
Eccentricity 30μm
Wobble 30μm

You must be logged in to ask questions

◦Crossed roller bearing for high precision and high stiffness.
◦Vernier scales for reading angular position.
◦Center hole extends completely through stage.
◦Available with micrometers or fine pitch screws.
