High-Stability Mirror Mounts

MHX

In stock

SKU

MHX

MHX-series mounts are all-stainless steel holders made for standard 12.7-mm (0.5-in.), 25.4-mm (1-in.), and 50.8-mm (2-in.) mirrors. They feature a hollow-frame design that not only provides a higher moment of inertia to maximize stiffness but also thinner, reduced-mass sections allowing it to reach thermal equilibrium faster than traditionally designed mounts. Thermal repeatability tests validate the effectiveness of the new frame design, showing lower deflection and equivalent repeatability against rival mounts. The MHX mount is loaded with additional features like center-post mounting, adhesive wells, and keying pin slots, all in the industry’s most compact and affordable stainless steel mount.

Add to Wish List

Customize product

Filters

Enabled filters :

Remove all filters

Name

Optic Loading Side

Angle Range

Material

Number of Control Axes

Optic Diameter

Delivery

Price

Add to cart

details

MHX-25.4A

Front Loading

±3°

Stainless Steel

2 Axes

φ25.4mm

2 weeks

$144.00

Mount Material	Stainless Steel
Compatible Optics Diameter	φ25, φ25.4mm
Compatible Optics Thickness	3 - 6mm
Mirror Clamping Mechanism	Set Screw with Torsion Barrier, 2-mm (5/64-in.) Hex Key
Recommended Mirror Clamping Torque	0.07±0.01 Nm (10±2 oz.-in.)
Number of Adjustment Axes	2 points
Angular Travel Range	±3°
Adjuster Thread	M6 x 0.250mm(~100 TPI)
Standardized Adjustment Sensitivity (based on 1° knob rotation)	20 μrad
Typical Adjustment Sensitivity	6±2 μrad
Dowel Pin Keys	ɸ2mm Slot and Hole
Standard Mounting	Counterbored clearance hole for M4 / 8-32 screws
Center-Post Mounting	M4 and 8-32 threaded holes
Thermal Repeatability with a Δ10°C Thermal Cycle	≤1.5 μrad

details

MHX-12.7F-R

Rear Loading

±3°

Stainless Steel

3 Axes

φ12.7mm

in stock

$143.00

Products Name	High-stability mirror mount
Compatible Optics Diameter	φ12.7mm
Compatible Optics Thickness	2 - 6mm
Clear Aperture	φ11.5mm
Number of Adjustment Axes	3 point
Adjustment Screw Thread	M4 x 0.250mm (~100 TPI)
Adjustment Range /Tilt	±3°
Adjustment Range /Rotation	±3°
Resolution /Tilt	About 0.8°/rotation
Resolution /Rotation	About 0.8°/rotation
Compatible Holders	-
Quantity	1

details

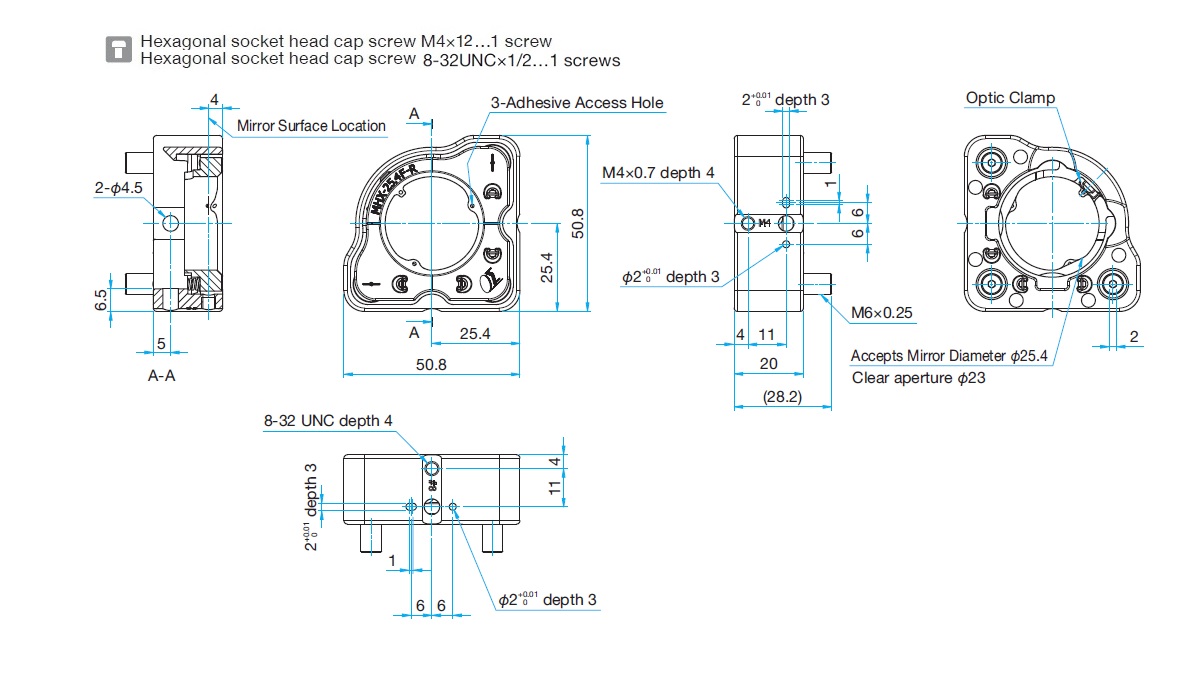

MHX-25.4F-R

Rear Loading

±3°

Stainless Steel

3 Axes

φ25.4mm

2 weeks

$152.00

Mount Material	Stainless Steel
Compatible Optics Diameter	φ25, φ25.4mm
Compatible Optics Thickness	3 - 6mm
Mirror Clamping Mechanism	Set Screw with Torsion Barrier, 2-mm (5/64-in.) Hex Key
Recommended Mirror Clamping Torque	0.07±0.01 Nm (10±2 oz.-in.)
Number of Adjustment Axes	3 points
Angular Travel Range	±3°
Linear Travel Range	±3.5mm
Adjuster Thread	M6 x 0.250mm(~100 TPI)
Standardized Adjustment Sensitivity (based on 1° knob rotation)	20 μrad
Typical Adjustment Sensitivity	6±2 μrad
Dowel Pin Keys	ɸ2mm Slot and Hole
Standard Mounting	Counterbored clearance hole for M4 / 8-32 screws
Center-Post Mounting	M4 and 8-32 threaded holes
Thermal Repeatability with a Δ10°C Thermal Cycle	≤1.5 μrad

details

MHX-12.7A

Front Loading

±3°

Stainless Steel

2 Axes

φ12.7mm

in stock

$139.00

Products Name	12.7-mm mirror mount, stainless steel, high-stability, front-loading, 2 hex adjusters
Compatible Optics Diameter	φ12.7mm
Compatible Optics Thickness	2 - 6mm
Clear Aperture	φ11.5mm
Adjustment Screw Thread	M4 x 0.250mm (~100 TPI)
Number of Adjustment Axes	2 point
Adjustment Range /Tilt	±3°
Adjustment Range /Rotation	±3°
Resolution /Tilt	About 0.8°/rotation
Resolution /Rotation	About 0.8°/rotation
Compatible Holders	-
Quantity	1

details

MHX-50.8A

Front Loading

±3°

Stainless Steel

2 Axes

φ50.8mm

in stock

$241.00

Mount Material	Stainless Steel
Compatible Optics Diameter	50.8mm
Compatible Optics Thickness	5 - 13mm
Mirror Clamping Mechanism	Set Screw with Torsion Barrier, 2-mm (5/64-in.) Hex Key
Recommended Mirror Clamping Torque	0.07±0.01 Nm (10±2 oz.-in.)
Number of Adjustment Axes	2 points
Angular Travel Range	±3°
Linear Travel Range	±3.5mm
Adjuster Thread	M6 x 0.250mm (~100 TPI)
Standardized Adjustment Sensitivity (based on 1° knob rotation)	13 μrad
Typical Adjustment Sensitivity	4±2 μrad
Dowel Pin Keys	ɸ2mm Slot and Hole
Standard Mounting	Counterbored clearance hole for M4 / 8-32 screws
Center-Post Mounting	M4 and 8-32 threaded holes
Thermal Repeatability with a Δ10°C Thermal Cycle	≤1.5 μrad

details

MHX-25.4F

Front Loading

±3°

Stainless Steel

3 Axes

φ25.4mm

2 weeks

$149.00

Mount Material	Stainless Steel
Compatible Optics Diameter	φ25, φ25.4mm
Compatible Optics Thickness	3 - 6mm
Mirror Clamping Mechanism	Set Screw with Torsion Barrier, 2-mm (5/64-in.) Hex Key
Recommended Mirror Clamping Torque	0.07±0.01 Nm (10±2 oz.-in.)
Number of Adjustment Axes	3 points
Angular Travel Range	±3°
Linear Travel Range	±3.5mm
Adjuster Thread	M6 x 0.250mm(~100 TPI)
Standardized Adjustment Sensitivity (based on 1° knob rotation)	20 μrad
Typical Adjustment Sensitivity	6±2 μrad
Dowel Pin Keys	ɸ2mm Slot and Hole
Standard Mounting	Counterbored clearance hole for M4 / 8-32 screws
Center-Post Mounting	M4 and 8-32 threaded holes
Thermal Repeatability with a Δ10°C Thermal Cycle	≤1.5 μrad

details

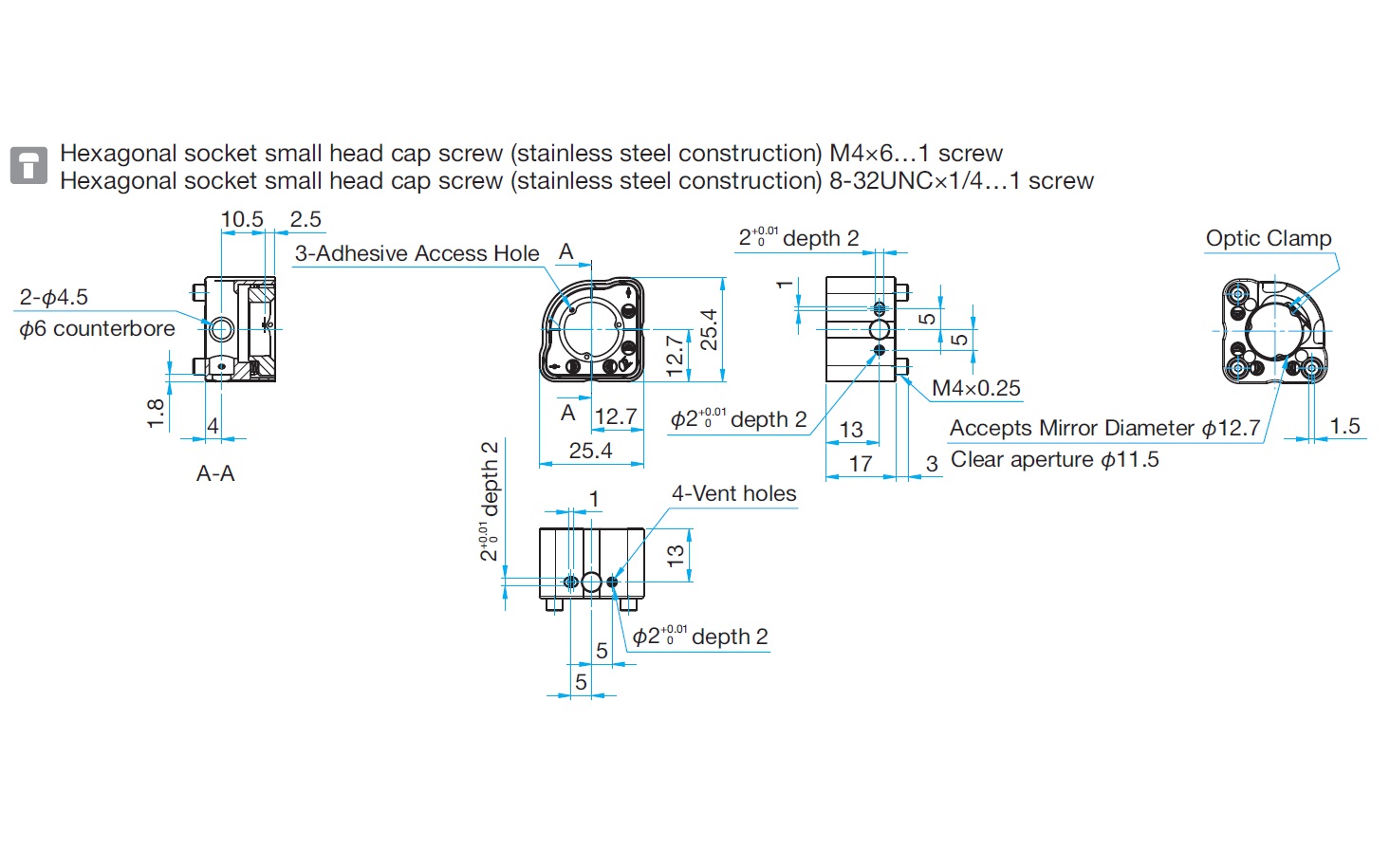

MHX-12.7F

Front Loading

±3°

Stainless Steel

3 Axes

φ12.7mm

in stock

$143.00

Products Name	High-stability mirror mount
Compatible Optics Diameter	φ12.7mm
Compatible Optics Thickness	2 - 6mm
Clear Aperture	φ11.5mm
Number of Adjustment Axes	3 point
Adjustment Screw Thread	M4 x 0.250mm (~100 TPI)
Adjustment Range /Tilt	±3°
Adjustment Range /Rotation	±3°
Resolution /Tilt	About 0.8°/rotation
Resolution /Rotation	About 0.8°/rotation
Compatible Holders	-
Quantity	1

details

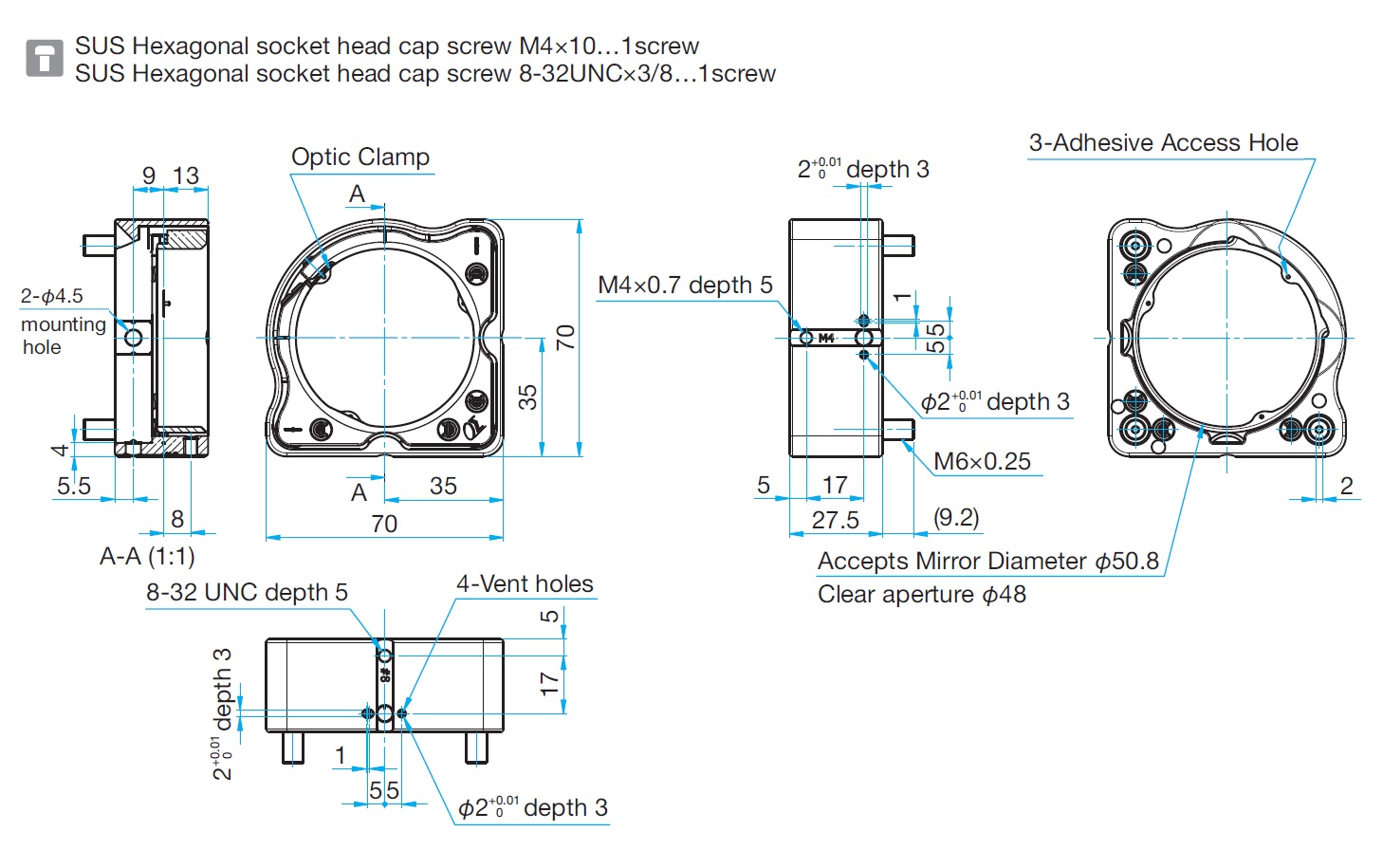

MHX-50.8F

Front Loading

±3°

Stainless Steel

3 Axes

φ50.8mm

in stock

$265.00

Mount Material	Stainless Steel
Compatible Optics Diameter	50.8mm
Compatible Optics Thickness	5 - 13mm
Mirror Clamping Mechanism	Set Screw with Torsion Barrier, 2-mm (5/64-in.) Hex Key
Recommended Mirror Clamping Torque	0.07±0.01 Nm (10±2 oz.-in.)
Number of Adjustment Axes	3 points
Angular Travel Range	±3°
Linear Travel Range	±3.5mm
Adjuster Thread	M6 x 0.250mm(~100 TPI)
Standardized Adjustment Sensitivity (based on 1° knob rotation)	13 μrad
Typical Adjustment Sensitivity	4±2 μrad
Dowel Pin Keys	ɸ2mm Slot and Hole
Standard Mounting	Counterbored clearance hole for M4 / 8-32 screws
Center-Post Mounting	M4 and 8-32 threaded holes
Thermal Repeatability with a Δ10°C Thermal Cycle	≤1.5 μrad
