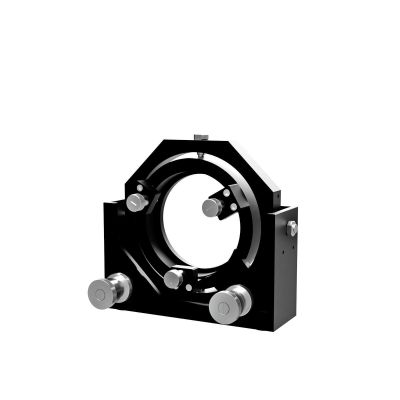

Large Precision Gimballed Mirror Holder for 100mm Diameter
MHD-100
×
Gimbal mirror holders designed for mirrors φ100mm to φ300mm. These mirror holders can minimize optical path length difference, a problem in large mirrors, caused by mirror tilt adjustment.
◦It is structured to fix the mirror with the three resin tip screws from the back, and it is designed to fix the mirror of various thickness.
◦Differential micrometer heads with large knobs are used for fine angular adjustment.
◦Differential micrometer heads with large knobs are used for fine angular adjustment.
| Name | Large Precision Gimballed Mirror Holder for 100mm Diameter |
|---|---|
| Weight | 2.1000kgs |
| Guide |
|
| Attention |
|
| Image Label | Large Precision Gimballed Mirror Holder for 100mm Diameter |
| Diameter | 100mm |
| Compatible Optics Diameter | φ100mm |
| Compatible Optics Thickness | 5 - 28mm |
| Adjustment Range /Tilt | ±5.7° |
| Adjustment Range /Rotation | ±5.7° |
| Coarse Adjustment Resolution /Tilt | about 0.57°/rotation |
| Coarse Adjustment Resolution /Rotation | about 0.57°/rotation |
| Fine Adjustment Indicator Conversion /Tilt | about 0.0008°/DIV |
| Fine Adjustment Indicator Conversion /Rotation | about 0.0008°/DIV |
In stock
SKU
MHD-100
$1,461.00
Customize product
Gimbal mirror holders designed for mirrors φ100mm to φ300mm. These mirror holders can minimize optical path length difference, a problem in large mirrors, caused by mirror tilt adjustment.
