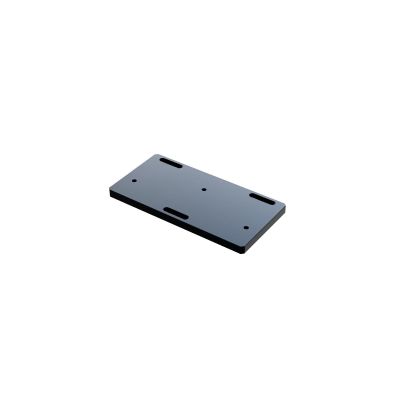

Plate for Large Precision Gimballed Mirror Holder Inch 100mm Diameter

MHD-100PUU

×
3d-simple-product
main product photo
Gimbal mirror holders designed for mirrors φ100mm to φ300mm. These mirror holders can minimize optical path length difference, a problem in large mirrors, caused by mirror tilt adjustment.

Base plates for mounting large precision gimbal mirror holders (MHD) on optical breadboards or
optical baseplates




More Information
Name Plate for Large Precision Gimballed Mirror Holder Inch 100mm Diameter
Weight 0.4400kgs
Guide
  • Custom style MHD mounts can be made to order. Contact our Sales Division for more information.
Attention
  • Remove the retaining screw brackets to insert a mirror. Then screw the brackets back on.
  • Pressing an optics hard with the resin tip screw of the mirror retainer may distort the mirror and worsen the surface accuracy.
Image Label Plate for Large Precision Gimballed Mirror Holder Inch 100mm Diameter
Compatible Holders MHD-100, MHD-101.6
In stock
SKU
MHD-100PUU
$107.00

Delivery in : 6-12 weeks

custom product
Customize product
Add to Wish List
Gimbal mirror holders designed for mirrors φ100mm to φ300mm. These mirror holders can minimize optical path length difference, a problem in large mirrors, caused by mirror tilt adjustment.
