Optical Flats (Square)

OFB - OFBP - OFSQ - OFPXP - OFSQP-S

More about
Optical Flats (Square)
Out of stock
SKU
OFB - OFBP - OFSQ - OFPXP - OFSQP-S
These Optical Flats are precision polished on one side to a high accuracy and surface quality. They are suitable substrates to be coated with an optical thin film, such as a custom-made mirror.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
Material
Rear Surface

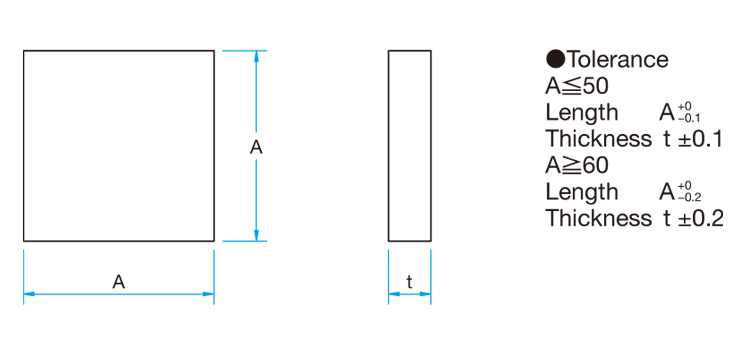

A x B
Delivery Price Add to cart
details
OFPXP-100S15-10
Hard glass Polished
2 weeks
$464.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □100mm
Thickness t 15mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFSQ-20S06-20
Synthetic fused silica Ground 20mm x 20mm
2 weeks
$117.00
Material Synthetic fused silica
Parallelism ＜3′
Outer dimension A □20mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Ground
details
OFB-20S03-10
BK7 Ground 20mm x 20mm
2 weeks
$49.00
Material BK7
Parallelism ＜3′
Outer dimension A □20mm
Thickness t 3mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-40S06-1
Hard glass Polished 40mm x 40mm
2 weeks
$75.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-130S18-10
Hard glass Polished
2 weeks
$772.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □130mm
Thickness t 18mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-40S06-20
Hard glass Polished 40mm x 40mm
2 weeks
$268.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-20S05-20
BK7 Ground 20mm x 20mm
2 weeks
$97.00
Material BK7
Parallelism ＜3′
Outer dimension A □20mm
Thickness t 5mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-50S08-10
Hard glass Polished 50mm x 50mm
2 weeks
$179.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-150S20-10
Hard glass Polished
6-12 weeks
$1,254.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □150mm
Thickness t 20mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-60S10-4
Hard glass Polished
2 weeks
$184.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-25S05-20
BK7 Ground 25mm x 25mm
in stock
$136.00
Material BK7
Parallelism ＜3′
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-60S10-20
Hard glass Polished
6-12 weeks
$579.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-30S05-10
BK7 Ground 30mm x 30mm
2 weeks
$92.00
Material BK7
Parallelism ＜3′
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFB-10S05-20
BK7 Ground 10mm x 10mm
2 weeks
$49.00
Material BK7
Parallelism ＜3′
Outer dimension A □10mm
Thickness t 5mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-80S12-10
Hard glass Polished 80mm x 80mm
2 weeks
$367.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-15S05-4
BK7 Ground 15mm x 15mm
2-3 weeks
$29.15
Material BK7
Parallelism ＜3′
Outer dimension A □15mm
Thickness t 5mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-100S15-4
Hard glass Polished
6-12 weeks
$319.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □100mm
Thickness t 15mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFSQ-10S06-20
Synthetic fused silica Ground 10mm x 10mm
2 weeks
$64.00
Material Synthetic fused silica
Parallelism ＜3′
Outer dimension A □10mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Ground
details
OFB-20S03-4
BK7 Ground 20mm x 20mm
2-3 weeks
$38.89
Material BK7
Parallelism ＜3′
Outer dimension A □20mm
Thickness t 3mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFSQ-25S06-20
Synthetic fused silica Ground 25mm x 25mm
2 weeks
$160.00
Material Synthetic fused silica
Parallelism ＜3′
Outer dimension A □25mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Ground
details
OFPXP-130S18-4
Hard glass Polished
6-12 weeks
$486.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □130mm
Thickness t 18mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-40S06-4
Hard glass Polished 40mm x 40mm
2-3 weeks
$117.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-150S20-1
Hard glass Polished
2 weeks
$486.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □150mm
Thickness t 20mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-50S08-1
Hard glass Polished 50mm x 50mm
2 weeks
$92.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-150S20-4
Hard glass Polished
6-12 weeks
$816.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □150mm
Thickness t 20mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFPXP-50S08-20
Hard glass Polished 50mm x 50mm
2 weeks
$354.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-25S05-4
BK7 Ground 25mm x 25mm
2-3 weeks
$59.00
Material BK7
Parallelism ＜3′
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-60S10-10
Hard glass Polished
2 weeks
$290.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-30S05-1
BK7 Ground 30mm x 30mm
2-3 weeks
$49.00
Material BK7
Parallelism ＜3′
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-80S12-1
Hard glass Polished 80mm x 80mm
6-12 weeks
$184.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-30S05-20
BK7 Ground 30mm x 30mm
2 weeks
$183.00
Material BK7
Parallelism ＜3′
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-80S12-4
Hard glass Polished 80mm x 80mm
6-12 weeks
$253.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-15S03-10
BK7 Ground 15mm x 15mm
2 weeks
$33.32
Material BK7
Parallelism ＜3′
Outer dimension A □15mm
Thickness t 3mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-100S15-1
Hard glass Polished
2 weeks
$223.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □100mm
Thickness t 15mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-15S05-20
BK7 Ground 15mm x 15mm
6-12 weeks
$67.00
Material BK7
Parallelism ＜3′
Outer dimension A □15mm
Thickness t 5mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFSQ-15S06-20
Synthetic fused silica Ground 15mm x 15mm
2 weeks
$81.00
Material Synthetic fused silica
Parallelism ＜3′
Outer dimension A □15mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Ground
details
OFPXP-130S18-1
Hard glass Polished
6-12 weeks
$329.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □130mm
Thickness t 18mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFSQ-30S06-20
Synthetic fused silica Ground 30mm x 30mm
6-12 weeks
$249.00
Material Synthetic fused silica
Parallelism ＜3′
Outer dimension A □30mm
Thickness t 6mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 20−10
Rear surface Ground
details
OFB-20S05-4
BK7 Ground 20mm x 20mm
2-3 weeks
$38.89
Material BK7
Parallelism ＜3′
Outer dimension A □20mm
Thickness t 5mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-40S06-10
Hard glass Polished 40mm x 40mm
2 weeks
$136.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □40mm
Thickness t 6mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-20S05-10
BK7 Ground 20mm x 20mm
2 weeks
$49.00
Material BK7
Parallelism ＜3′
Outer dimension A □20mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-50S08-4
Hard glass Polished 50mm x 50mm
2-3 weeks
$151.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □50mm
Thickness t 8mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-25S05-1
BK7 Ground 25mm x 25mm
2-3 weeks
$38.89
Material BK7
Parallelism ＜3′
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-60S10-1
Hard glass Polished
2 weeks
$120.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □60mm
Thickness t 10mm
Surface Flatness λ
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-25S05-10
BK7 Ground 25mm x 25mm
2 weeks
$68.00
Material BK7
Parallelism ＜3′
Outer dimension A □25mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFB-10S03-10
BK7 Ground 10mm x 10mm
in stock
$23.81
Material BK7
Parallelism ＜3′
Outer dimension A □10mm
Thickness t 3mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFB-30S05-4
BK7 Ground 30mm x 30mm
2-3 weeks
$73.00
Material BK7
Parallelism ＜3′
Outer dimension A □30mm
Thickness t 5mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFB-10S05-10
BK7 Ground 10mm x 10mm
2 weeks
$23.81
Material BK7
Parallelism ＜3′
Outer dimension A □10mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFB-15S03-4
BK7 Ground 15mm x 15mm
2-3 weeks
$29.15
Material BK7
Parallelism ＜3′
Outer dimension A □15mm
Thickness t 3mm
Surface Flatness λ/4
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground
details
OFPXP-80S12-20
Hard glass Polished 80mm x 80mm
6-12 weeks
$756.00
Material Hard glass
Parallelism ＜3′
Outer dimension A □80mm
Thickness t 12mm
Surface Flatness λ/20
Surface Quality (Scratch-Dig) 10−5
Rear surface Polished
details
OFB-15S05-10
BK7 Ground 15mm x 15mm
2 weeks
$33.32
Material BK7
Parallelism ＜3′
Outer dimension A □15mm
Thickness t 5mm
Surface Flatness λ/10
Surface Quality (Scratch-Dig) 10−5
Rear surface Ground

You must be logged in to ask questions

◦ We offer these substrates in a wide variety shapes and sizes, thickness and surface accuracy to allow for selection according to your required specifications.
