N-BK7, BiConcave Lenses (AR 633-1064nm)

SLB-B-N-IR1

More about
N-BK7, BiConcave Lenses (AR 633-1064nm)
Out of stock
SKU
SLB-B-N-IR1
These biconcave lenses are Coated 633-1064nm.They are used when a very high negative power is required. They can be used in a multi-element system or alone to produce a diverging cone of virtual image.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name

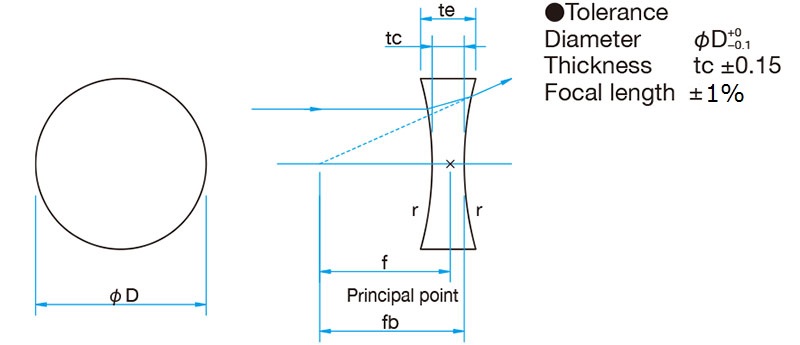

Diameter φD
Focal length
Delivery Price Add to cart
details
SLB-25B-30NIR1
25mm −29.7mm
6-12 weeks
$130.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −29.7mm
Edge thickness te 7.2mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-50.8B-100NIR1
50.8mm −99.5mm
in stock
$160.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −99.5mm
Edge thickness te 9.3mm
Center thickness tc 3mm
Back focal length fb −100.5mm
Radius of curvature r 103.8mm
Centration ＜1′
details
SLB-25B-50NIR1
25mm −49.7mm
6-12 weeks
$118.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −49.7mm
Edge thickness te 5.1mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-50.8B-250NIR1
50.8mm −249.5mm
in stock
$160.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −249.5mm
Edge thickness te 5.5mm
Center thickness tc 3mm
Back focal length fb −250.5mm
Radius of curvature r 259.5mm
Centration ＜1′
details
SLB-25B-80NIR1
25mm −79.7mm
6-12 weeks
$110.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −79.7mm
Edge thickness te 4mm
Center thickness tc 2mm
Back focal length fb −80.3mm
Radius of curvature r 83.04mm
Centration ＜1′
details
SLB-10B-10NIR1
10mm −9.7mm
6-12 weeks
$87.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −9.7mm
Edge thickness te 4.6mm
Center thickness tc 2mm
Back focal length fb −10.3mm
Radius of curvature r 10.38mm
Centration ＜1′
details
SLB-25.4B-30NIR1
25.4mm −29.7mm
in stock
$130.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −29.7mm
Edge thickness te 7.4mm
Center thickness tc 2mm
Back focal length fb −30.4mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-10B-25NIR1
10mm −24.7mm
6-12 weeks
$82.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −24.7mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-25.4B-60NIR1
25.4mm −59.7mm
in stock
$114.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −59.7mm
Edge thickness te 4.6mm
Center thickness tc 2mm
Back focal length fb −60.4mm
Radius of curvature r 62.28mm
Centration ＜1′
details
SLB-10B-50NIR1
10mm −49.7mm
6-12 weeks
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −49.7mm
Edge thickness te 2.5mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-25.4B-100NIR1
25.4mm −99.7mm
in stock
$103.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −99.7mm
Edge thickness te 3.6mm
Center thickness tc 2mm
Back focal length fb −100.4mm
Radius of curvature r 103.8mm
Centration ＜1′
details
SLB-12.7B-20NIR1
12.7mm −19.7mm
in stock
$82.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f −19.7mm
Edge thickness te 4mm
Center thickness tc 2mm
Back focal length fb −20.3mm
Radius of curvature r 20.76mm
Centration ＜1′
details
SLB-30B-30NIR1
30mm −29.7mm
6-12 weeks
$147.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −29.7mm
Edge thickness te 9.7mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-15B-20NIR1
15mm −19.7mm
6-12 weeks
$92.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −19.7mm
Edge thickness te 4.8mm
Center thickness tc 2mm
Back focal length fb −20.3mm
Radius of curvature r 20.76mm
Centration ＜1′
details
SLB-30B-50NIR1
30mm −49.7mm
6-12 weeks
$131.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −49.7mm
Edge thickness te 6.4mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-15B-40NIR1
15mm −39.7mm
6-12 weeks
$89.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −39.7mm
Edge thickness te 3.4mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-40B-50NIR1
40mm −49.7mm
6-12 weeks
$157.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f −49.7mm
Edge thickness te 10mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-20B-25NIR1
20mm −24.7mm
2 weeks
$98.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −24.7mm
Edge thickness te 6mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-50B-60NIR1
50mm −59.5mm
6-12 weeks
$181.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −59.5mm
Edge thickness te 13.5mm
Center thickness tc 3mm
Back focal length fb −60.5mm
Radius of curvature r 62.28mm
Centration ＜1′
details
SLB-20B-50NIR1
20mm −49.7mm
6-12 weeks
$94.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −49.7mm
Edge thickness te 3.9mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-50.8B-50NIR1
50.8mm −49.5mm
in stock
$184.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −49.5mm
Edge thickness te 16.3mm
Center thickness tc 3mm
Back focal length fb −50.5mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-25B-35NIR1
25mm −34.7mm
6-12 weeks
$126.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −34.7mm
Edge thickness te 6.4mm
Center thickness tc 2mm
Back focal length fb −35.3mm
Radius of curvature r 36.33mm
Centration ＜1′
details
SLB-50.8B-150NIR1
50.8mm −149.5mm
in stock
$160.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −149.5mm
Edge thickness te 7.2mm
Center thickness tc 3mm
Back focal length fb −150.5mm
Radius of curvature r 155.7mm
Centration ＜1′
details
SLB-25B-60NIR1
25mm −59.7mm
6-12 weeks
$114.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −59.7mm
Edge thickness te 4.5mm
Center thickness tc 2mm
Back focal length fb −60.3mm
Radius of curvature r 62.28mm
Centration ＜1′
details
SLB-50.8B-300NIR1
50.8mm −299.5mm
in stock
$160.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −299.5mm
Edge thickness te 5.1mm
Center thickness tc 3mm
Back focal length fb −300.5mm
Radius of curvature r 311.4mm
Centration ＜1′
details
SLB-25B-100NIR1
25mm −99.7mm
2 weeks
$103.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −99.7mm
Edge thickness te 3.5mm
Center thickness tc 2mm
Back focal length fb −100.3mm
Radius of curvature r 103.8mm
Centration ＜1′
details
SLB-10B-15NIR1
10mm −14.7mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −14.7mm
Edge thickness te 3.6mm
Center thickness tc 2mm
Back focal length fb −15.3mm
Radius of curvature r 15.57mm
Centration ＜1′
details
SLB-25.4B-40NIR1
25.4mm −39.7mm
in stock
$124.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −39.7mm
Edge thickness te 6mm
Center thickness tc 2mm
Back focal length fb −40.4mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-10B-30NIR1
10mm −29.7mm
6-12 weeks
$81.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −29.7mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-25.4B-70NIR1
25.4mm −69.7mm
in stock
$114.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −69.7mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −70.4mm
Radius of curvature r 72.66mm
Centration ＜1′
details
SLB-12.7B-10NIR1
12.7mm −9.7mm
in stock
$87.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f −9.7mm
Edge thickness te 6.3mm
Center thickness tc 2mm
Back focal length fb −10.3mm
Radius of curvature r 10.38mm
Centration ＜1′
details
SLB-25.4B-150NIR1
25.4mm −149.7mm
in stock
$103.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −149.7mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −150.4mm
Radius of curvature r 155.7mm
Centration ＜1′
details
SLB-12.7B-25NIR1
12.7mm −24.7mm
in stock
$82.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f −24.7mm
Edge thickness te 3.6mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-30B-35NIR1
30mm −34.7mm
6-12 weeks
$139.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −34.7mm
Edge thickness te 8.5mm
Center thickness tc 2mm
Back focal length fb −35.3mm
Radius of curvature r 36.33mm
Centration ＜1′
details
SLB-15B-25NIR1
15mm −24.7mm
2 weeks
$91.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −24.7mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-30B-100NIR1
30mm −99.7mm
6-12 weeks
$107.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −99.7mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −100.3mm
Radius of curvature r 103.8mm
Centration ＜1′
details
SLB-15B-50NIR1
15mm −49.7mm
2 weeks
$88.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −49.7mm
Edge thickness te 3.1mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-40B-100NIR1
40mm −99.7mm
6-12 weeks
$141.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f −99.7mm
Edge thickness te 5.9mm
Center thickness tc 2mm
Back focal length fb −100.3mm
Radius of curvature r 103.8mm
Centration ＜1′
details
SLB-20B-30NIR1
20mm −29.7mm
6-12 weeks
$94.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −29.7mm
Edge thickness te 5.3mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-50B-70NIR1
50mm −69.5mm
6-12 weeks
$173.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −69.5mm
Edge thickness te 11.9mm
Center thickness tc 3mm
Back focal length fb −70.5mm
Radius of curvature r 72.66mm
Centration ＜1′
details
SLB-25B-25NIR1
25mm −24.7mm
6-12 weeks
$131.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −24.7mm
Edge thickness te 8.4mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-50.8B-60NIR1
50.8mm −59.5mm
in stock
$181.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −59.5mm
Edge thickness te 13.8mm
Center thickness tc 3mm
Back focal length fb −60.5mm
Radius of curvature r 62.28mm
Centration ＜1′
details
SLB-25B-40NIR1
25mm −39.7mm
2 weeks
$124.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −39.7mm
Edge thickness te 5.9mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-50.8B-200NIR1
50.8mm −199.5mm
in stock
$160.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50.8mm
Focal length f −199.5mm
Edge thickness te 6.1mm
Center thickness tc 3mm
Back focal length fb −200.5mm
Radius of curvature r 207.6mm
Centration ＜1′
details
SLB-25B-70NIR1
25mm −69.7mm
6-12 weeks
$114.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25mm
Focal length f −69.7mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −70.3mm
Radius of curvature r 72.66mm
Centration ＜1′
details
SLB-25.4B-25NIR1
25.4mm −24.7mm
in stock
$131.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −24.7mm
Edge thickness te 8.6mm
Center thickness tc 2mm
Back focal length fb −25.4mm
Radius of curvature r 25.95mm
Centration ＜1′
details
SLB-10B-20NIR1
10mm −19.7mm
2 weeks
$82.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −19.7mm
Edge thickness te 3.2mm
Center thickness tc 2mm
Back focal length fb −20.3mm
Radius of curvature r 20.76mm
Centration ＜1′
details
SLB-25.4B-50NIR1
25.4mm −49.7mm
in stock
$118.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −49.7mm
Edge thickness te 5.2mm
Center thickness tc 2mm
Back focal length fb −50.4mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-10B-40NIR1
10mm −39.7mm
6-12 weeks
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ10mm
Focal length f −39.7mm
Edge thickness te 2.6mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-25.4B-80NIR1
25.4mm −79.7mm
in stock
$110.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −79.7mm
Edge thickness te 4mm
Center thickness tc 2mm
Back focal length fb −80.4mm
Radius of curvature r 83.04mm
Centration ＜1′
details
SLB-12.7B-15NIR1
12.7mm −14.7mm
in stock
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ12.7mm
Focal length f −14.7mm
Edge thickness te 4.7mm
Center thickness tc 2mm
Back focal length fb −15.3mm
Radius of curvature r 15.57mm
Centration ＜1′
details
SLB-25.4B-200NIR1
25.4mm −199.7mm
in stock
$103.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ25.4mm
Focal length f −199.7mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −200.4mm
Radius of curvature r 207.6mm
Centration ＜1′
details
SLB-15B-15NIR1
15mm −14.7mm
2 weeks
$93.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −14.7mm
Edge thickness te 5.9mm
Center thickness tc 2mm
Back focal length fb −15.3mm
Radius of curvature r 15.57mm
Centration ＜1′
details
SLB-30B-40NIR1
30mm −39.7mm
2 weeks
$136.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ30mm
Focal length f −39.7mm
Edge thickness te 7.6mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-15B-30NIR1
15mm −29.7mm
2 weeks
$93.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ15mm
Focal length f −29.7mm
Edge thickness te 3.8mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 31.14mm
Centration ＜1′
details
SLB-40B-40NIR1
40mm −39.7mm
6-12 weeks
$164.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ40mm
Focal length f −39.7mm
Edge thickness te 12.3mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-20B-20NIR1
20mm −19.7mm
in stock
$98.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −19.7mm
Edge thickness te 7.1mm
Center thickness tc 2mm
Back focal length fb −20.3mm
Radius of curvature r 20.76mm
Centration ＜1′
details
SLB-50B-50NIR1
50mm −49.5mm
2 weeks
$184.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −49.5mm
Edge thickness te 15.8mm
Center thickness tc 3mm
Back focal length fb −50.5mm
Radius of curvature r 51.9mm
Centration ＜1′
details
SLB-20B-40NIR1
20mm −39.7mm
6-12 weeks
$94.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ20mm
Focal length f −39.7mm
Edge thickness te 4.4mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
details
SLB-50B-100NIR1
50mm −99.5mm
6-12 weeks
$160.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (633 - 1064nm)
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 633 - 1064nm
Diameter φD φ50mm
Focal length f −99.5mm
Edge thickness te 9.1mm
Center thickness tc 3mm
Back focal length fb −100.5mm
Radius of curvature r 103.8mm
Centration ＜1′

You must be logged in to ask questions

These biconcave lenses are Coated 633-1064nm.They are used when a very high negative power is required. They can be used in a multi-element system or alone to produce a diverging cone of virtual image.
