Fused Silica, BiConcave Lenses (Uncoated)

SLSQ-B-N

More about
Fused Silica, BiConcave Lenses (Uncoated)
Out of stock
SKU
SLSQ-B-N
Synthetic fused silica Lens for wavelengths less than 350nm ultraviolet light.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name

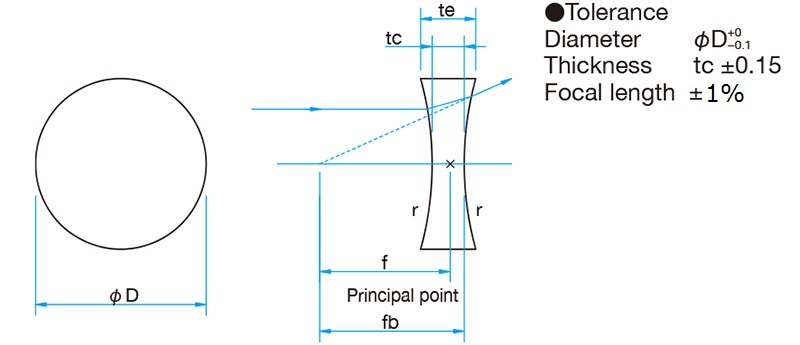

Diameter φD
Focal length
Delivery Price Add to cart
details
SLSQ-25B-80N
25mm −79.7mm
in stock
$148.92
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f −79.7mm
Edge thickness te 4.1mm
Center thickness tc 2mm
Back focal length fb −80.3mm
Radius of curvature r 73.6mm
Centration ＜1′
details
SLSQ-50B-70N
50mm −69.5mm
6-12 weeks
$314.16
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f −69.5mm
Edge thickness te 13.1mm
Center thickness tc 3mm
Back focal length fb −70.5mm
Radius of curvature r 64.4mm
Centration ＜1′
details
SLSQ-25.4B-25N
25.4mm −24.7mm
in stock
$204.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f −24.7mm
Edge thickness te 9.6mm
Center thickness tc 2mm
Back focal length fb −25.4mm
Radius of curvature r 23mm
Centration ＜1′
details
SLSQ-50B-100N
50mm −99.5mm
2 weeks
$302.94
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f −99.5mm
Edge thickness te 9.9mm
Center thickness tc 3mm
Back focal length fb −100.5mm
Radius of curvature r 92mm
Centration ＜1′
details
SLSQ-50.8B-70N
50.8mm −69.5mm
in stock
$314.16
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f −69.5mm
Edge thickness te 13.4mm
Center thickness tc 3mm
Back focal length fb −70.5mm
Radius of curvature r 64.4mm
Centration ＜1′
details
SLSQ-25.4B-50N
25.4mm −49.7mm
in stock
$154.02
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f −49.7mm
Edge thickness te 5.6mm
Center thickness tc 2mm
Back focal length fb −50.4mm
Radius of curvature r 46mm
Centration ＜1′
details
SLSQ-50.8B-100N
50.8mm −99.5mm
2 weeks
$302.94
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f −99.5mm
Edge thickness te 10.2mm
Center thickness tc 3mm
Back focal length fb −100.5mm
Radius of curvature r 92mm
Centration ＜1′
details
SLSQ-10B-20N
10mm −19.7mm
in stock
$150.96
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ10mm
Focal length f −19.7mm
Edge thickness te 3.4mm
Center thickness tc 2mm
Back focal length fb −20.3mm
Radius of curvature r 18.4mm
Centration ＜1′
details
SLSQ-25.4B-80N
25.4mm −79.7mm
in stock
$148.92
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f −79.7mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −80.4mm
Radius of curvature r 73.6mm
Centration ＜1′
details
SLSQ-50.8B-250N
50.8mm −249.5mm
in stock
$302.94
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f −249.5mm
Edge thickness te 5.8mm
Center thickness tc 3mm
Back focal length fb −250.5mm
Radius of curvature r 230mm
Centration ＜1′
details
SLSQ-10B-40N
10mm −39.7mm
6-12 weeks
$122.40
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ10mm
Focal length f −39.7mm
Edge thickness te 2.7mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 36.8mm
Centration ＜1′
details
SLSQ-25.4B-150N
25.4mm −149.7mm
in stock
$142.80
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f −149.7mm
Edge thickness te 3.2mm
Center thickness tc 2mm
Back focal length fb −150.4mm
Radius of curvature r 138mm
Centration ＜1′
details
SLSQ-15B-20N
15mm −19.7mm
6-12 weeks
$163.20
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ15mm
Focal length f −19.7mm
Edge thickness te 5.2mm
Center thickness tc 2mm
Back focal length fb −20.3mm
Radius of curvature r 18.4mm
Centration ＜1′
details
SLSQ-30B-35N
30mm −34.7mm
6-12 weeks
$222.36
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f −34.7mm
Edge thickness te 9.4mm
Center thickness tc 2mm
Back focal length fb −35.3mm
Radius of curvature r 32.2mm
Centration ＜1′
details
SLSQ-15B-40N
15mm −39.7mm
6-12 weeks
$133.62
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ15mm
Focal length f −39.7mm
Edge thickness te 3.5mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 36.8mm
Centration ＜1′
details
SLSQ-30B-60N
30mm −59.7mm
2 weeks
$171.36
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f −59.7mm
Edge thickness te 6.2mm
Center thickness tc 2mm
Back focal length fb −60.3mm
Radius of curvature r 55.2mm
Centration ＜1′
details
SLSQ-20B-25N
20mm −24.7mm
6-12 weeks
$183.60
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ20mm
Focal length f −24.7mm
Edge thickness te 6.6mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 23mm
Centration ＜1′
details
SLSQ-30B-90N
30mm −89.7mm
in stock
$157.08
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f −89.7mm
Edge thickness te 4.7mm
Center thickness tc 2mm
Back focal length fb −90.3mm
Radius of curvature r 82.8mm
Centration ＜1′
details
SLSQ-20B-50N
20mm −49.7mm
6-12 weeks
$153.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ20mm
Focal length f −49.7mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 46mm
Centration ＜1′
details
SLSQ-40B-50N
40mm −49.7mm
6-12 weeks
$230.52
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f −49.7mm
Edge thickness te 11.2mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 46mm
Centration ＜1′
details
SLSQ-25B-35N
25mm −34.7mm
2 weeks
$177.48
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f −34.7mm
Edge thickness te 7.1mm
Center thickness tc 2mm
Back focal length fb −35.3mm
Radius of curvature r 32.2mm
Centration ＜1′
details
SLSQ-40B-80N
40mm −79.7mm
6-12 weeks
$205.02
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f −79.7mm
Edge thickness te 7.5mm
Center thickness tc 2mm
Back focal length fb −80.3mm
Radius of curvature r 73.6mm
Centration ＜1′
details
SLSQ-25B-60N
25mm −59.7mm
6-12 weeks
$154.02
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f −59.7mm
Edge thickness te 4.9mm
Center thickness tc 2mm
Back focal length fb −60.3mm
Radius of curvature r 55.2mm
Centration ＜1′
details
SLSQ-50B-50N
50mm −49.5mm
6-12 weeks
$385.56
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f −49.5mm
Edge thickness te 17.8mm
Center thickness tc 3mm
Back focal length fb −50.5mm
Radius of curvature r 46mm
Centration ＜1′
details
SLSQ-25B-90N
25mm −89.7mm
2 weeks
$145.86
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f −89.7mm
Edge thickness te 3.9mm
Center thickness tc 2mm
Back focal length fb −90.3mm
Radius of curvature r 82.8mm
Centration ＜1′
details
SLSQ-50B-80N
50mm −79.5mm
6-12 weeks
$308.04
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f −79.5mm
Edge thickness te 11.8mm
Center thickness tc 3mm
Back focal length fb −80.5mm
Radius of curvature r 73.6mm
Centration ＜1′
details
SLSQ-25.4B-30N
25.4mm −29.7mm
in stock
$199.92
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f −29.7mm
Edge thickness te 8.2mm
Center thickness tc 2mm
Back focal length fb −30.4mm
Radius of curvature r 27.6mm
Centration ＜1′
details
SLSQ-50.8B-50N
50.8mm −49.5mm
in stock
$385.56
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f −49.5mm
Edge thickness te 18.3mm
Center thickness tc 3mm
Back focal length fb −50.5mm
Radius of curvature r 46mm
Centration ＜1′
details
SLSQ-50.8B-80N
50.8mm −79.5mm
in stock
$308.04
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f −79.5mm
Edge thickness te 12mm
Center thickness tc 3mm
Back focal length fb −80.5mm
Radius of curvature r 73.6mm
Centration ＜1′
details
SLSQ-10B-10N
10mm −9.7mm
in stock
$173.40
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ10mm
Focal length f −9.7mm
Edge thickness te 5mm
Center thickness tc 2mm
Back focal length fb −10.3mm
Radius of curvature r 9.2mm
Centration ＜1′
details
SLSQ-25.4B-60N
25.4mm −59.7mm
in stock
$154.02
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f −59.7mm
Edge thickness te 5mm
Center thickness tc 2mm
Back focal length fb −60.4mm
Radius of curvature r 55.2mm
Centration ＜1′
details
SLSQ-50.8B-150N
50.8mm −149.5mm
in stock
$302.94
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f −149.5mm
Edge thickness te 7.7mm
Center thickness tc 3mm
Back focal length fb −150.5mm
Radius of curvature r 138mm
Centration ＜1′
details
SLSQ-10B-25N
10mm −24.7mm
2 weeks
$139.74
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ10mm
Focal length f −24.7mm
Edge thickness te 3.1mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 23mm
Centration ＜1′
details
SLSQ-25.4B-90N
25.4mm −89.7mm
in stock
$145.86
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f −89.7mm
Edge thickness te 4mm
Center thickness tc 2mm
Back focal length fb −90.4mm
Radius of curvature r 82.8mm
Centration ＜1′
details
SLSQ-50.8B-300N
50.8mm −299.5mm
6-12 weeks
$302.94
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f −299.5mm
Edge thickness te 5.3mm
Center thickness tc 3mm
Back focal length fb −300.5mm
Radius of curvature r 276mm
Centration ＜1′
details
SLSQ-10B-50N
10mm −49.7mm
6-12 weeks
$105.06
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ10mm
Focal length f −49.7mm
Edge thickness te 2.5mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 46mm
Centration ＜1′
details
SLSQ-25.4B-200N
25.4mm −199.7mm
in stock
$142.80
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f −199.7mm
Edge thickness te 2.9mm
Center thickness tc 2mm
Back focal length fb −200.4mm
Radius of curvature r 184mm
Centration ＜1′
details
SLSQ-15B-25N
15mm −24.7mm
6-12 weeks
$150.96
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ15mm
Focal length f −24.7mm
Edge thickness te 4.5mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 23mm
Centration ＜1′
details
SLSQ-30B-40N
30mm −39.7mm
6-12 weeks
$199.92
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f −39.7mm
Edge thickness te 8.4mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 36.8mm
Centration ＜1′
details
SLSQ-15B-50N
15mm −49.7mm
6-12 weeks
$117.30
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ15mm
Focal length f −49.7mm
Edge thickness te 3.2mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 46mm
Centration ＜1′
details
SLSQ-30B-70N
30mm −69.7mm
6-12 weeks
$165.24
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f −69.7mm
Edge thickness te 5.5mm
Center thickness tc 2mm
Back focal length fb −70.3mm
Radius of curvature r 64.4mm
Centration ＜1′
details
SLSQ-20B-30N
20mm −29.7mm
in stock
$173.40
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ20mm
Focal length f −29.7mm
Edge thickness te 5.8mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 27.6mm
Centration ＜1′
details
SLSQ-30B-100N
30mm −99.7mm
in stock
$154.02
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f −99.7mm
Edge thickness te 4.5mm
Center thickness tc 2mm
Back focal length fb −100.3mm
Radius of curvature r 92mm
Centration ＜1′
details
SLSQ-25B-25N
25mm −24.7mm
in stock
$204.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f −24.7mm
Edge thickness te 9.4mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 23mm
Centration ＜1′
details
SLSQ-40B-60N
40mm −59.7mm
6-12 weeks
$218.28
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f −59.7mm
Edge thickness te 9.5mm
Center thickness tc 2mm
Back focal length fb −60.3mm
Radius of curvature r 55.2mm
Centration ＜1′
details
SLSQ-25B-40N
25mm −39.7mm
6-12 weeks
$175.44
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f −39.7mm
Edge thickness te 6.4mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 36.8mm
Centration ＜1′
details
SLSQ-40B-90N
40mm −89.7mm
in stock
$205.02
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f −89.7mm
Edge thickness te 6.9mm
Center thickness tc 2mm
Back focal length fb −90.3mm
Radius of curvature r 82.8mm
Centration ＜1′
details
SLSQ-25B-70N
25mm −69.7mm
6-12 weeks
$154.02
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f −69.7mm
Edge thickness te 4.5mm
Center thickness tc 2mm
Back focal length fb −70.3mm
Radius of curvature r 64.4mm
Centration ＜1′
details
SLSQ-50B-60N
50mm −59.5mm
6-12 weeks
$321.30
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f −59.5mm
Edge thickness te 15mm
Center thickness tc 3mm
Back focal length fb −60.5mm
Radius of curvature r 55.2mm
Centration ＜1′
details
SLSQ-25B-100N
25mm −99.7mm
2 weeks
$142.80
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f −99.7mm
Edge thickness te 3.7mm
Center thickness tc 2mm
Back focal length fb −100.3mm
Radius of curvature r 92mm
Centration ＜1′
details
SLSQ-50B-90N
50mm −89.5mm
in stock
$303.96
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f −89.5mm
Edge thickness te 10.7mm
Center thickness tc 3mm
Back focal length fb −90.5mm
Radius of curvature r 82.8mm
Centration ＜1′
details
SLSQ-25.4B-40N
25.4mm −39.7mm
in stock
$175.44
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f −39.7mm
Edge thickness te 6.5mm
Center thickness tc 2mm
Back focal length fb −40.4mm
Radius of curvature r 36.8mm
Centration ＜1′
details
SLSQ-50.8B-60N
50.8mm −59.5mm
in stock
$321.30
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f −59.5mm
Edge thickness te 15.4mm
Center thickness tc 3mm
Back focal length fb −60.5mm
Radius of curvature r 55.2mm
Centration ＜1′
details
SLSQ-50.8B-90N
50.8mm −89.5mm
in stock
$302.94
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f −89.5mm
Edge thickness te 11mm
Center thickness tc 3mm
Back focal length fb −90.5mm
Radius of curvature r 82.8mm
Centration ＜1′
details
SLSQ-10B-15N
10mm −14.7mm
6-12 weeks
$163.20
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ10mm
Focal length f −14.7mm
Edge thickness te 3.9mm
Center thickness tc 2mm
Back focal length fb −15.3mm
Radius of curvature r 13.8mm
Centration ＜1′
details
SLSQ-25.4B-70N
25.4mm −69.7mm
in stock
$154.02
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f −69.7mm
Edge thickness te 4.5mm
Center thickness tc 2mm
Back focal length fb −70.4mm
Radius of curvature r 64.4mm
Centration ＜1′
details
SLSQ-50.8B-200N
50.8mm −199.5mm
in stock
$302.94
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f −199.5mm
Edge thickness te 6.5mm
Center thickness tc 3mm
Back focal length fb −200.5mm
Radius of curvature r 184mm
Centration ＜1′
details
SLSQ-10B-30N
10mm −29.7mm
6-12 weeks
$128.52
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ10mm
Focal length f −29.7mm
Edge thickness te 2.9mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 27.6mm
Centration ＜1′
details
SLSQ-25.4B-100N
25.4mm −99.7mm
in stock
$142.80
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f −99.7mm
Edge thickness te 3.8mm
Center thickness tc 2mm
Back focal length fb −100.4mm
Radius of curvature r 92mm
Centration ＜1′
details
SLSQ-15B-15N
15mm −14.7mm
6-12 weeks
$173.40
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ15mm
Focal length f −14.7mm
Edge thickness te 6.4mm
Center thickness tc 2mm
Back focal length fb −15.3mm
Radius of curvature r 13.8mm
Centration ＜1′
details
SLSQ-30B-30N
30mm −29.7mm
in stock
$234.60
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f −29.7mm
Edge thickness te 10.9mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 27.6mm
Centration ＜1′
details
SLSQ-15B-30N
15mm −29.7mm
6-12 weeks
$139.74
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ15mm
Focal length f −29.7mm
Edge thickness te 4.1mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 27.6mm
Centration ＜1′
details
SLSQ-30B-50N
30mm −49.7mm
in stock
$177.48
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f −49.7mm
Edge thickness te 7mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 46mm
Centration ＜1′
details
SLSQ-20B-20N
20mm −19.7mm
in stock
$204.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ20mm
Focal length f −19.7mm
Edge thickness te 7.9mm
Center thickness tc 2mm
Back focal length fb −20.3mm
Radius of curvature r 18.4mm
Centration ＜1′
details
SLSQ-30B-80N
30mm −79.7mm
6-12 weeks
$160.14
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f −79.7mm
Edge thickness te 5.1mm
Center thickness tc 2mm
Back focal length fb −80.3mm
Radius of curvature r 73.6mm
Centration ＜1′
details
SLSQ-20B-40N
20mm −39.7mm
6-12 weeks
$163.20
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ20mm
Focal length f −39.7mm
Edge thickness te 4.8mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 36.8mm
Centration ＜1′
details
SLSQ-40B-40N
40mm −39.7mm
6-12 weeks
$244.80
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f −39.7mm
Edge thickness te 13.8mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 36.8mm
Centration ＜1′
details
SLSQ-25B-30N
25mm −29.7mm
6-12 weeks
$199.92
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f −29.7mm
Edge thickness te 8mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 27.6mm
Centration ＜1′
details
SLSQ-40B-70N
40mm −69.7mm
6-12 weeks
$211.14
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f −69.7mm
Edge thickness te 8.4mm
Center thickness tc 2mm
Back focal length fb −70.3mm
Radius of curvature r 64.4mm
Centration ＜1′
details
SLSQ-25B-50N
25mm −49.7mm
in stock
$154.02
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f −49.7mm
Edge thickness te 5.5mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 46mm
Centration ＜1′
details
SLSQ-40B-100N
40mm −99.7mm
6-12 weeks
$205.02
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f −99.7mm
Edge thickness te 6.4mm
Center thickness tc 2mm
Back focal length fb −100.3mm
Radius of curvature r 92mm
Centration ＜1′

You must be logged in to ask questions

This product can be coated M; IR1 or IR2.
