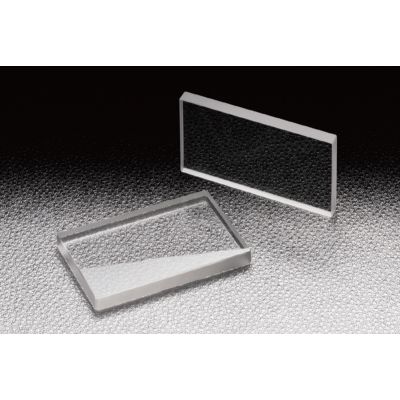

Cylindrical Plano-convex Lens (Synthetic Fused Silica) 20×30mm 150mm Focal Length

CLSQ-2030-150P

Skip to the beginning of the images gallery

Cylindrical plano convex lens has a convex curvature in the vertical direction and has no curvature in the horizontal direction. They are often used to condense a laser beam into a thin line.

Details

◦Plano Convex Cylindrical lenses are available in highstrength synthetic fused silica which has high laser damage threshold used in applications with 350nm ultraviolet light.
◦Cylindrical lenses are often used in an optical system to change the shape and aspect ratio of the illumination light beam.

More Information

More Information
Name	Cylindrical Plano-convex Lens (Synthetic Fused Silica) 20×30mm 150mm Focal Length
Weight	0.0060kgs
Standard Coatings Available	Yes
Guide	Lenses are available in a large selection and in custom sizes and focal lengths. In addition to our standard coating we offer custom anti-reflective coating at specific wavelengths. We offer holders to mount our catalog cylindrical lenses, consult our Sales Division for assistance in your selection (CHA). WEB Reference Catalog Code/W4022
Remark	-
Attention	Plano-convex cylindrical lens have chromatic aberration, and the focal length will vary depending on the wavelength. Please check the “wavelength characteristic of the focal length data” on “Technical Data” for the focal lengths of each wavelength. When using a plano-convex cylindrical lens parallel light should incident to the convex side first. There is a possibility that the spherical aberration will increase and optical performance of the system will be degraded if use in reverse. Transmissions losses due to reflection off the front and rear surfaces of the lens can be minimized by coating the surfaces. Consult our Sales Division for anti-reflection coatings suitable for your application.
A x B	20mm x 30mm
Focal length	150mm
Material	Synthetic fused silica
Design Wavelength	546.1nm
Refractive index n<sub>e</sub>	1.46
Coating	Uncoated
Clear aperture	Circle or ellipse inscribed in a rectangular of 90% of the dimension
Surface Quality (Scratch-Dig)	20-10
A×B	20×30mm
Focal length f	150mm
Edge thickness te	3.3mm
Center thickness tc	4mm
Back focal length fb	147.3mm
Radius of curvature r	69mm

In stock

SKU

CLSQ-2030-150P

$250.00

Cylindrical plano convex lens has a convex curvature in the vertical direction and has no curvature in the horizontal direction. They are often used to condense a laser beam into a thin line.

Cylindrical Plano-convex Lens (Synthetic Fused Silica) 20×30mm 150mm Focal Length
