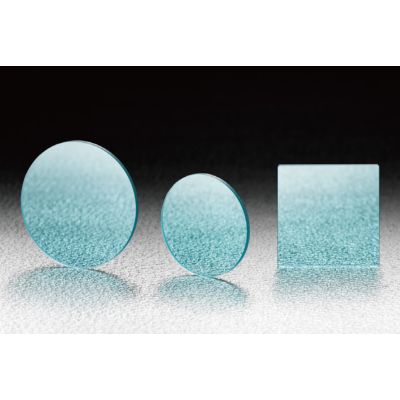

Color Correction Filter 50mm 626nm
ECM-50S-500
The filter that can simulate the sensing of a human eye which is similar the silicon pixel detector sensor with a wavelength located at a peak at the NIR range. It is also widely as a filter attached to a CCD sensor.
◦Use the filter to correct the unnatural color taken with an IR camera.
◦The CCF5000 can be used in natural environment or outside, the surface of the filter is tough and hard to burn.
◦The CCF 500 and CCF 5000 have the same characteristics until 900nm, above 900nm the transmittance is different.
◦The color of the ECM-500 is darker than the CCF-500 and CCF-5000 and is fit for use to cut off the NIR light.
◦The CCF5000 can be used in natural environment or outside, the surface of the filter is tough and hard to burn.
◦The CCF 500 and CCF 5000 have the same characteristics until 900nm, above 900nm the transmittance is different.
◦The color of the ECM-500 is darker than the CCF-500 and CCF-5000 and is fit for use to cut off the NIR light.
| Name | Color Correction Filter 50mm 626nm |
|---|---|
| Weight | 0.0070kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | - |
| Attention |
|
| A x B | 50mm x 50mm |
| Image Label | Color Correction Filter 50mm 626nm |
| Dimensions | 50 × 50mm |
| Thickness | 1mm |
| Material | Glass (containing a substance of optical absorption) |
| Average transmittance <br>(400 − 600nm) | 0.827 |
| Transmittance at 600nm | About 50% |
| Transition wavelength | 626nm |
| Absorption limit long wavelength | 766nm |
| Transmittance at longt absorption limit | ＜0.3% |
| Average Transmittance <br>(absorption limit long wavelength − 1200nm) | ＜0.5% |
In stock
SKU
ECM-50S-500
$197.00
Customize product
The filter that can simulate the sensing of a human eye which is similar the silicon pixel detector sensor with a wavelength located at a peak at the NIR range. It is also widely as a filter attached to a CCD sensor.
