Motorized Goniometer 2 Axis (XY)

OSMS-G-XY

Motorized Goniometer 2 Axis (XY)
In stock
SKU
OSMS-G-XY
High precision motorized goniometers with integrated bearing ways for superior stiffness, accuracy and durability.Their smooth motion makes them ideal for frequent angle adjustment.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Travel Upper β axis / Lower α axis Load Capacity Angle Range/(Upper) β axis Angle Range/(Lower) α axis Delivery Price Add to cart
i
Two Axis Motorized Steel Goniometer Stage (Motor Left Side)
OSMS-60B85
(Upper)±9°/(Lower)±7° 19.6N (2.0kg)
6-12 weeks
$3,162.00
Type Normal
Travel Upper β axis / Lower α axis (Upper)±9°/(Lower)±7°
Stage Size 60×60mm
Travel Mechanism (reduction ratio) Upper β axis / Lower α axis (Upper)Worm gear(1:314)(Lower)Worm gear(1:380)
Positioning Slide Extended Contact Ball Guide
Stage Material SUS440C quench hardened
Finish Super black chrome
Stage Height 40mm
Rotation Center Height 85±0.1mm
Rotation Center Deflection Accuracy Within φ0.01mm
Resolution (Full) (Upper)β axis / (Lower)α axis (Upper)about 0.00229°/pulse (Lower)about 0.00198°/pulse
Resolution (Half) (Upper)β axis / (Lower)α axis (Upper)about 0.00115°/pulse (Lower)about 0.00095°/pulse
MAX Speed 6°/sec
Load Capacity 19.6(2.0kgf)
Sensor Part Number Micro photo sensor : GP1S097HCZ(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor None
i
Two Axis Motorized Steel Goniometer Stage (Motor Left Side)

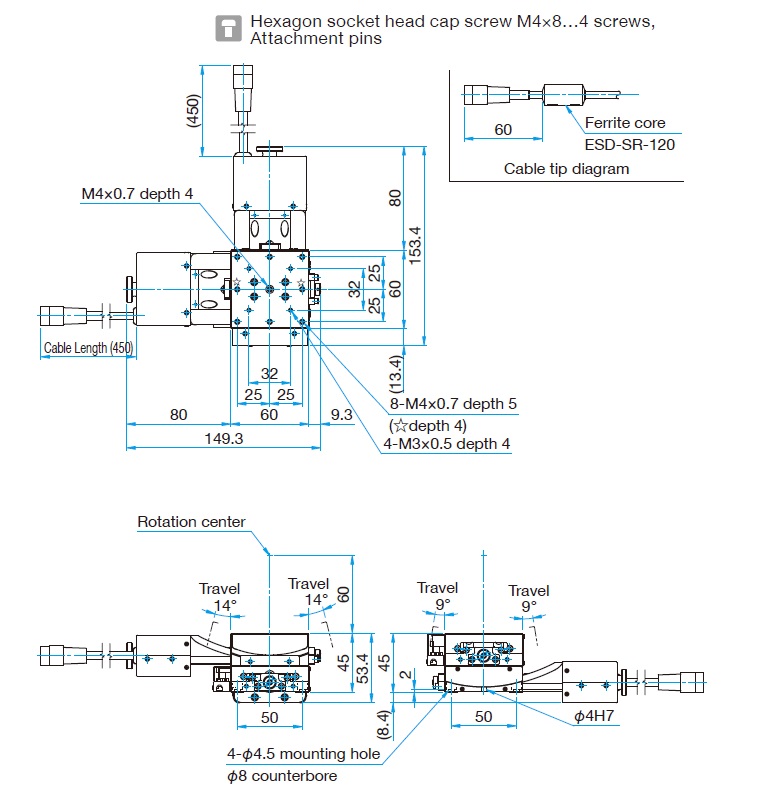

OSMS-60B60
(Upper)±14°/(Lower)±9° 19.6N (2.0kg)
6-12 weeks
$3,162.00
Type Normal
Travel Upper β axis / Lower α axis (Upper)±14°/(Lower)±9°
Stage Size 60×60mm
Travel Mechanism (reduction ratio) Upper β axis / Lower α axis (Upper)Worm gear(1:246)(Lower)Worm gear(1:314)
Positioning Slide Extended Contact Ball Guide
Stage Material SUS440C quench hardened
Finish Super black chrome
Stage Height 45mm
Rotation Center Height 60±0.2mm
Rotation Center Deflection Accuracy Within φ0.01mm
Resolution (Full) (Upper)β axis / (Lower)α axis (Upper)about 0.00293°/pulse (Lower)about 0.00299°/pulse
Resolution (Half) (Upper)β axis / (Lower)α axis (Upper)about 0.00146°/pulse (Lower)about 0.00115°/pulse
MAX Speed 8°/sec
Load Capacity 19.6(2.0kgf)
Sensor Part Number Micro photo sensor : GP1S097HCZ(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor None
i
Two Axis Motorized Steel Goniometer Stage (Motor Right Side)
OSMS-60B85R
(Upper)±9°/(Lower)±7° 19.6N (2.0kg)
6-12 weeks
$3,162.00
Type Opposite Model
Travel Upper β axis / Lower α axis (Upper)±9°/(Lower)±7°
Stage Size 60×60mm
Travel Mechanism (reduction ratio) Upper β axis / Lower α axis (Upper)Worm gear(1:314)(Lower)Worm gear(1:380)
Positioning Slide Extended Contact Ball Guide
Stage Material SUS440C quench hardened
Finish Super black chrome
Stage Height 40mm
Rotation Center Height 85±0.1mm
Rotation Center Deflection Accuracy Within φ0.01mm
Resolution (Full) (Upper)β axis / (Lower)α axis (Upper)about 0.00229°/pulse (Lower)about 0.00198°/pulse
Resolution (Half) (Upper)β axis / (Lower)α axis (Upper)about 0.00115°/pulse (Lower)about 0.00095°/pulse
MAX Speed 6°/sec
Load Capacity 19.6(2.0kgf)
Sensor Part Number Micro photo sensor : GP1S097HCZ(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor None
i
Two Axis Motorized Steel Goniometer Stage (Motor Left Side)
OSMS-40B60
(Upper)±5°/(Lower)±4° 14.7N (1.5kg)
2-3 weeks
$2,896.80
Type Normal
Travel Upper β axis / Lower α axis (Upper)±5°/(Lower)±4°
Stage Size 40×40mm
Travel Mechanism (reduction ratio) Upper β axis / Lower α axis (Upper)Worm gear(1:332)(Lower)Worm gear(1:406)
Positioning Slide Extended Contact Ball Guide
Stage Material SUS440C quench hardened
Finish Super black chrome
Stage Height 30mm
Rotation Center Height 60±0.2mm
Rotation Center Deflection Accuracy Within φ0.01mm
Resolution (Full) (Upper)β axis / (Lower)α axis (Upper)about 0.00217°/pulse (Lower)about 0.00177°/pulse
Resolution (Half) (Upper)β axis / (Lower)α axis (Upper)about 0.00108°/pulse (Lower) about 0.00089°/pulse
MAX Speed 8°/sec
Load Capacity 14.7N(1.5kgf)
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor None
Proximity Origin Sensor None
i
Two Axis Motorized Steel Goniometer Stage (Motor Right Side)
OSMS-60B60R
(Upper)±14°/(Lower)±9° 19.6N (2.0kg)
6-12 weeks
$3,162.00
Type Opposite Model
Travel Upper β axis / Lower α axis (Upper)±14°/(Lower)±9°
Stage Size 60×60mm
Travel Mechanism (reduction ratio) Upper β axis / Lower α axis (Upper)Worm gear(1:246)(Lower)Worm gear(1:314)
Positioning Slide Extended Contact Ball Guide
Stage Material SUS440C quench hardened
Finish Super black chrome
Stage Height 45mm
Rotation Center Height 60±0.2mm
Rotation Center Deflection Accuracy Within φ0.01mm
Resolution (Full) (Upper)β axis / (Lower)α axis (Upper)about 0.00293°/pulse (Lower)about 0.00299°/pulse
Resolution (Half) (Upper)β axis / (Lower)α axis (Upper)about 0.00146°/pulse (Lower)about 0.00115°/pulse
MAX Speed 8°/sec
Load Capacity 19.6(2.0kgf)
Sensor Part Number Micro photo sensor : GP1S097HCZ(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor None
i
Two Axis Motorized Steel Goniometer Stage (Motor Right Side)
OSMS-40B60R
(Upper)±5°/(Lower)±4° 14.7N (1.5kg)
6-12 weeks
$2,896.80
Type Opposite Model
Travel Upper β axis / Lower α axis (Upper)±5°/(Lower)±4°
Stage Size 40×40mm
Travel Mechanism (reduction ratio) Upper β axis / Lower α axis (Upper)Worm gear(1:332)(Lower)Worm gear(1:406)
Positioning Slide Extended Contact Ball Guide
Stage Material SUS440C quench hardened
Finish Super black chrome
Stage Height 30mm
Rotation Center Height 60±0.2mm
Rotation Center Deflection Accuracy Within φ0.01mm
Resolution (Full) (Upper)β axis / (Lower)α axis (Upper)sbout 0.00217°/pulse (Lower)about 0.00177°/pulse
Resolution (Half) (Upper)β axis / (Lower)α axis (Upper)about 0.00108°/pulse (Lower) about 0.00089°/pulse
MAX Speed 8°/sec
Load Capacity 14.7N(1.5kgf)
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor None
Proximity Origin Sensor None
i
Two Axis Motorized Aluminum Goniometer Stage
SGSP-60B100
19.1N (1.9kg) ±5° ±4°
6-12 weeks
$3,264.00
Angle Range/(Upper) β axis ±5°
Angle Range/(Lower) α axis ±4°
Stage Size 60×60mm
Positioning Slide Crossed roller
Travel Mechanism Worm and worm wheel
Stage Material Aluminium
Finish Black anodized
Stage Height 65mm
Rotation Center Height 100mm
Resolution (Full)α axis about 0.001°/pulse
Resolution (Full)β axis about 0.001°/pulse
Resolution (Half)α axis about 0.0005°/pulse
Resolution (Half)β axis about 0.0005°/pulse
MAX Speed 6°/sec
Load Capacity 19.1N(1.9kgf)
Sensor Part Number GP1S092HCPI(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor None
Proximity Origin Sensor None
i
Two Axis Motorized Aluminum Goniometer Stage
SGSP-60B75
19.1N (1.9kg) ±7° ±5°
6-12 weeks
$3,264.00
Angle Range/(Upper) β axis ±7°
Angle Range/(Lower) α axis ±5°
Stage Size 60×60mm
Positioning Slide Crossed roller
Travel Mechanism Worm and worm wheel
Stage Material Aluminium
Finish Black anodized
Stage Height 55mm
Rotation Center Height 75mm
Resolution (Full)α axis about 0.001°/pulse
Resolution (Full)β axis about 0.002°/pulse
Resolution (Half)α axis about 0.0005°/pulse
Resolution (Half)β axis about 0.001°/pulse
MAX Speed 6°/sec
Load Capacity 19.1N(1.9kgf)
Sensor Part Number GP1S092HCPI(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor None
Proximity Origin Sensor None

You must be logged in to ask questions

◦Extended Contact bearing ways are machined directly into the main body reduce the number of parts and assembly time, making these very durable and costeffective.
◦Attachment pins (accessories) are ideal for positioning when assembling into αβ axis or mounting on various instruments or devices.
