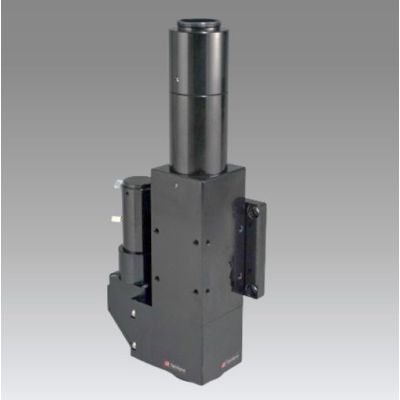

Near-UV and VIS Microscope Body with Coaxial Illumination
OUCI-3 (NUV)
This compact microscope body is a customizable high performance imaging system for use in a wide range of applications from scientific research to industrial production equipment.
◦Accepts a wide variety of infinity-corrected objectives.
◦Can be combined with a wide variety of optional components to accommodate many applications.
◦Can be combined with a wide variety of optional components to accommodate many applications.
| Name | Near-UV and VIS Microscope Body with Coaxial Illumination |
|---|---|
| Weight | 0.7500kgs |
| Guide | ◦Support Infinity-corrected objective lenses. ◦Support Olympus-made objective lenses at various magnifications as standard. ◦The coaxial epi-illumination of the light guide enables the observation of bright fields. ◦The contrast of the illuminated light can be adjusted with an aperture stop. |
| Attention | The OUCI will not work with Finite Conjugate objectives |
| Wavelength Range | 355 - 650nm |
| Mounting Thread | M4 |
| Illumination Optics | Coaxial Epi-Illumination |
| Imaging lens focal length | 200mm |
| Camera mount | C-Mount (less than 1.2" Format ) |
| Mounting screw for Objective lens | Φ26×0.706, Φ20.32×0.706 |
| Design Wavelenght Range | 355-650nm (Near-ultraviolet and visible) |
| Compatible Objective Lens Type | Infinity Corrected Objective Lens |
In stock
SKU
OUCI-3 (NUV)
$3,062.00
Customize product
This compact microscope body is a customizable high performance imaging system for use in a wide range of applications from scientific research to industrial production equipment.
