Long Working Distance Objective Lens 4mm Focal Length 50x Working Distance 20.7mm

PAL-50-L-A

Skip to the beginning of the images gallery

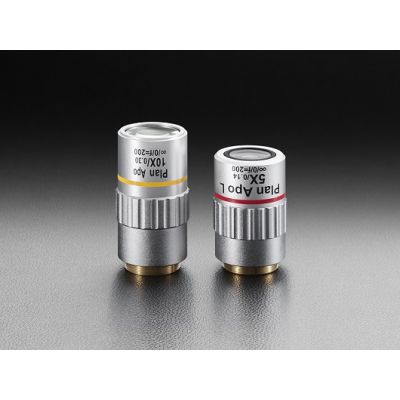

is the long working distance objective lens infinity correction function and par focal length 95mm, which can be used for a laser system and coaxial observation. To focus visible laser or microscopic observation of objects from a distance.

Details

◦Chromatic aberration is corrected in the visible range (400 − 700nm).
◦PAL/PAL-L has a long working distance and a corrected field curvature. Its natural observation image is obtained to the periphery of the visual field.

≪This product has been discontinued. Click here for successor model≫
PAL-50

More Information

More Information
Name	Long Working Distance Objective Lens 4mm Focal Length 50x Working Distance 20.7mm
Weight	0.2800kgs
Standard Coatings Available	No
Guide	Available fixed objective lens holder (LHO-26). WEB Reference Catalog Code/W4024 When the objective lens is fixed to a 2 axis holder, please consult our Sales Division. For laser processing, we offer a dichroic block (DIMC WEB Reference Catalog Code/W2041) and for laser unit with coaxial illumination and observation (OUCI-2).
Remark	-
Attention	When an objective lens is used in laser processing, use the diameter of the incident beam to extend to a size of half the pupil diameter (1/e²). A small light spot cannot be achieved when the incident beam is too narrow. Please note if there is a laser energy density increase, there will be a high possibility of damage to the objective lens. The surface of an objective lens can be contaminated by debris during processing. To avoid this, please have sufficient working distance (WD) and insert a thin protective glass on the objective. Magnification is the value when using the imaging lens f=200mm. When used in a microscope lens barrel from other manufacturers there may be different magnifications. The actual magnification should be calculated from the ratio of the focal length of the objective lens and the focal length of the imaging lens to verify the focal length of the imaging lens barrel to be used.
Image Label	Long Working Distance Objective Lens 4mm Focal Length 50x Working Distance 20.7mm
Magnification	50×
Numerical Aperture	0.42
Working Distance WD	20.7mm
Item name	MplanApo SL50x
Focal length f	4mm
Resolution	0.65μm
Focal depth	±1.6μm
Pupil diameter	φ3.4mm
Real field of View (Eyepiece φ24mm)	φ0.48mm
Real field of View (Imaging device 1/2-inch)	0.10×0.13mm
Weight	0.31kg

In stock

SKU

PAL-50-L-A

$2,642.00

Long Working Distance Objective Lens 4mm Focal Length 50x Working Distance 20.7mm
