Ultra Low-Profile EXC Steel X Stages

TSDT-401_601

Ultra Low-Profile EXC Steel X Stages
In stock
SKU
TSDT-401_601
TSDT series stages are the industry's thinnest stages. Having an unbelievable 10-mm profile, they are over 50% thinner than similar competing stages. The low profile also reduces its weight. TSDT stages are made with our EXC™ extended contact bearing technology yielding superior stability, stiffness, accuracy, and durability - the specifications speak for themselves. They are available with a 40-mm or 60-mm square platform and include a small-diameter micrometer or fine-pitch drive screw having a travel range of 13 mm. The stage can be locked.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Stage Size Travel Load Capacity Mounting Thread Delivery Price Add to cart
i

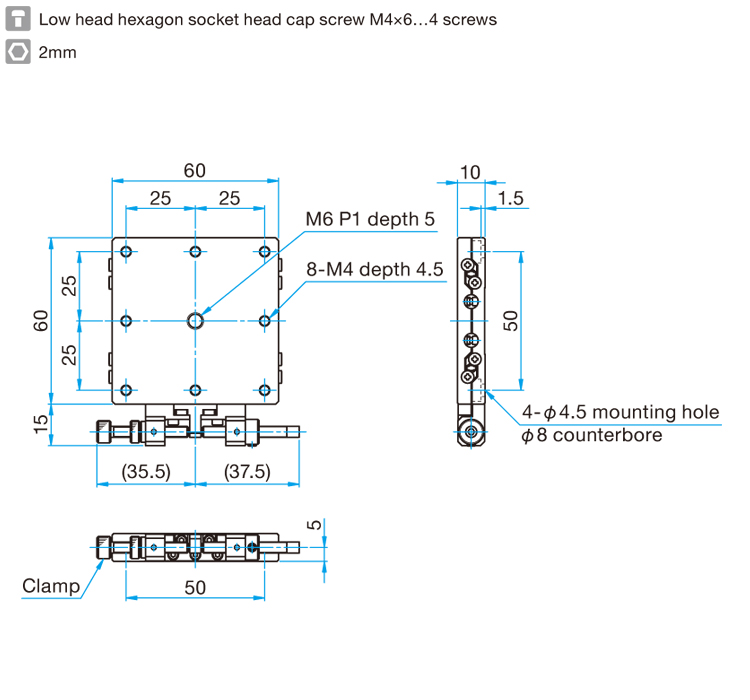

60X60mm EXC Bearing, Steel, X-Axis Stage, Side Hex Screw, +/-6.5mm, M4 Threads
TSDT-601SFP
60×60mm ±6.5mm 343N (35.0kg) M4
in stock
$333.00
Micrometer Position Side
Lead of Actuator 0.25mm
Micrometer Readable Resolution -
Guide Method Extended Contact Ball Bearing Guide
Primary Material Steel
Finish Super black chrome
Travel Accuracy / Straightness 1μm
Travel Accuracy / Pitch 25″
Travel Accuracy / Yaw 15″
Max. Moment Capacity / Pitch 6.4N・m
Max. Moment Capacity / Roll 6.4N・m
Max. Moment Capacity / Yaw 4.9N・m
Moment Stiffness / Pitch 0.2″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Moment Stiffness / Yaw 0.2″/N・cm
Parallelism 30μm
Running Parallelism 10μm
i

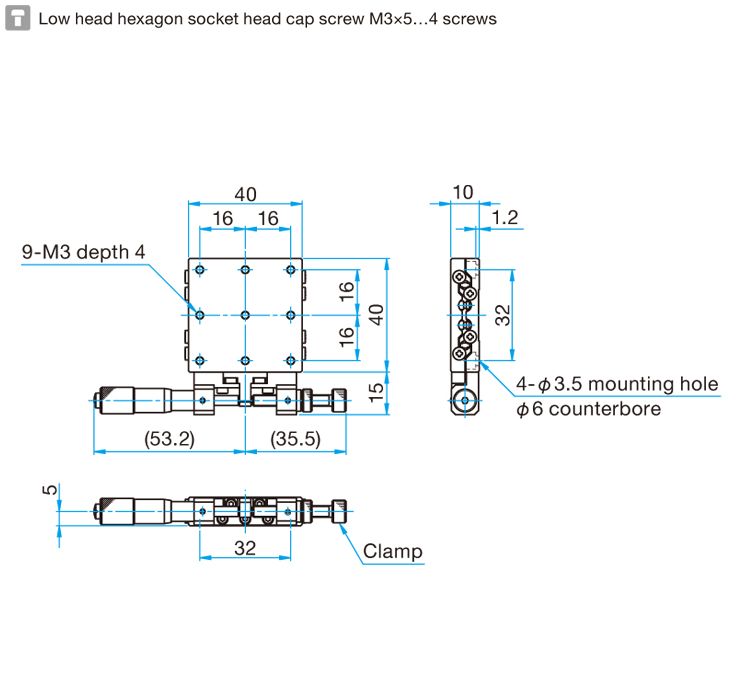

40X40mm EXC Bearing, Steel, X-Axis Stage, Side Micrometer, +/-6.5mm, M3 Threads, Right-handed
TSDT-401SR
40×40mm ±6.5mm 147N (15.0kg) M3
in stock
$333.00
Micrometer Position Side
Lead of Actuator 0.5mm
Micrometer Readable Resolution 0.01mm
Guide Method Extended Contact Ball Bearing Guide
Primary Material Steel
Finish Super black chrome
Travel Accuracy / Straightness 1μm
Travel Accuracy / Pitch 30″
Travel Accuracy / Yaw 25″
Max. Moment Capacity / Pitch 3.9N・m
Max. Moment Capacity / Roll 3.9N・m
Max. Moment Capacity / Yaw 2.9N・m
Moment Stiffness / Pitch 0.36″/N・cm
Moment Stiffness / Roll 0.3″/N・cm
Moment Stiffness / Yaw 0.36″/N・cm
Parallelism 30μm
Running Parallelism 10μm
i

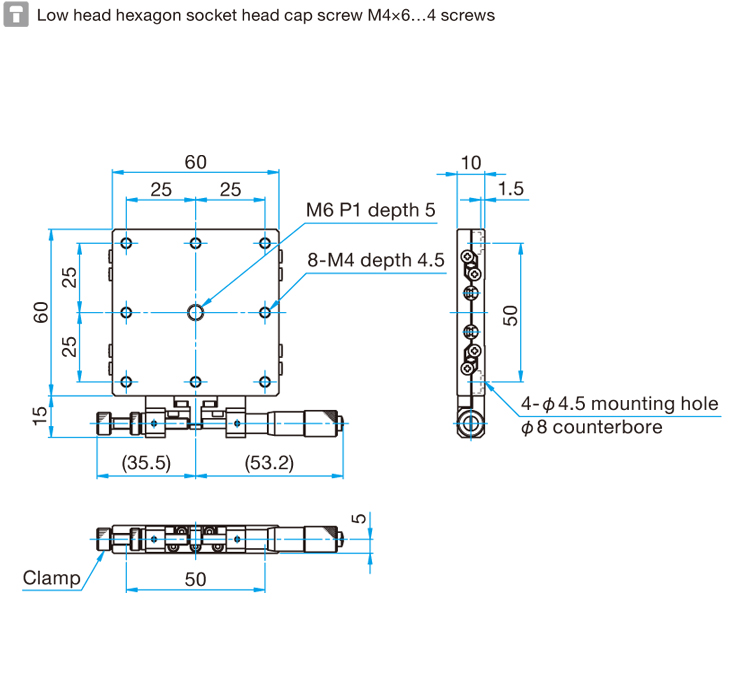

60X60mm EXC Bearing, Steel, X-Axis Stage, Side Micrometer, +/-6.5mm, M4 Threads
TSDT-601S
60×60mm ±6.5mm 343N (35.0kg) M4
in stock
$379.00
Micrometer Position Side
Lead of Actuator 0.5mm
Micrometer Readable Resolution 0.01mm
Guide Method Extended Contact Ball Bearing Guide
Primary Material Steel
Finish Super black chrome
Travel Accuracy / Straightness 1μm
Travel Accuracy / Pitch 25″
Travel Accuracy / Yaw 15″
Max. Moment Capacity / Pitch 6.4N・m
Max. Moment Capacity / Roll 6.4N・m
Max. Moment Capacity / Yaw 4.9N・m
Moment Stiffness / Pitch 0.2″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Moment Stiffness / Yaw 0.2″/N・cm
Parallelism 30μm
Running Parallelism 10μm
i

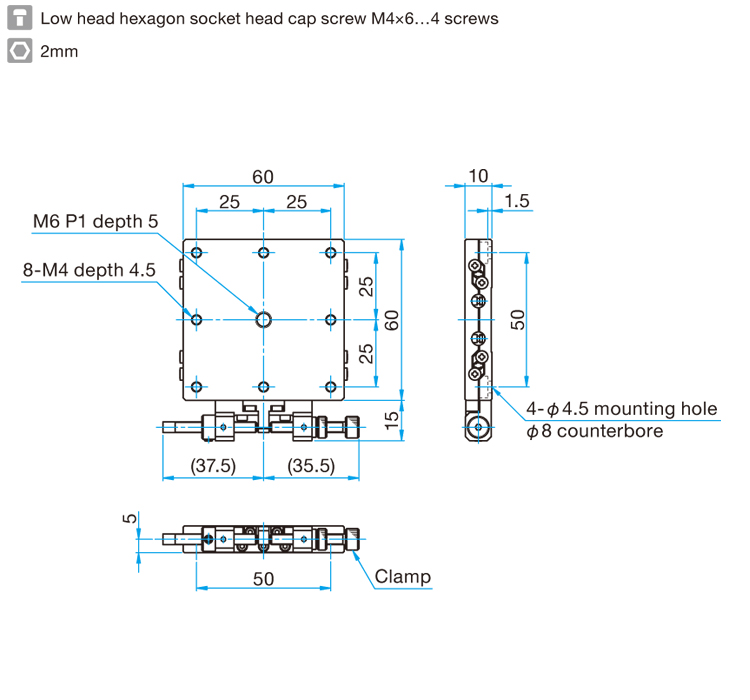

60X60mm EXC Bearing, Steel, X-Axis Stage, Side Hex Screw, +/-6.5mm, M4 Threads, Right-handed
TSDT-601SRFP
60×60mm ±6.5mm 343N (35.0kg) M4
in stock
$333.00
Micrometer Position Side
Lead of Actuator 0.25mm
Micrometer Readable Resolution -
Guide Method Extended Contact Ball Bearing Guide
Primary Material Steel
Finish Super black chrome
Travel Accuracy / Straightness 1μm
Travel Accuracy / Pitch 25″
Travel Accuracy / Yaw 15″
Max. Moment Capacity / Pitch 6.4N・m
Max. Moment Capacity / Roll 6.4N・m
Max. Moment Capacity / Yaw 4.9N・m
Moment Stiffness / Pitch 0.2″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Moment Stiffness / Yaw 0.2″/N・cm
Parallelism 30μm
Running Parallelism 10μm
i

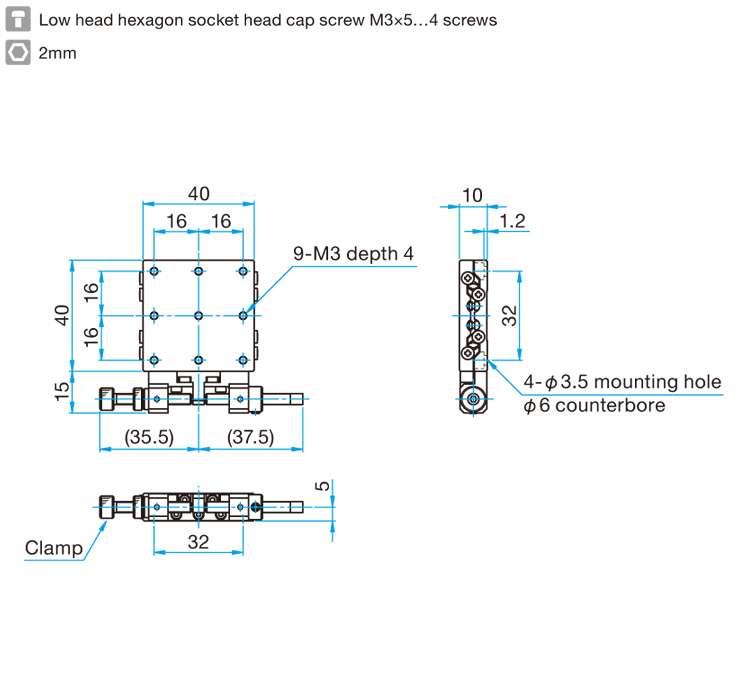

40X40mm EXC Bearing, Steel, X-Axis Stage, Side Hex Screw, +/-6.5mm, M3 Threads
TSDT-401SFP
40×40mm ±6.5mm 147N (15.0kg) M3
6-12 weeks
$288.00
Micrometer Position Side
Lead of Actuator 0.25mm
Micrometer Readable Resolution -
Guide Method Extended Contact Ball Bearing Guide
Primary Material Steel
Finish Super black chrome
Travel Accuracy / Straightness 1μm
Travel Accuracy / Pitch 30″
Travel Accuracy / Yaw 25″
Max. Moment Capacity / Pitch 3.9N・m
Max. Moment Capacity / Roll 3.9N・m
Max. Moment Capacity / Yaw 2.9N・m
Moment Stiffness / Pitch 0.36″/N・cm
Moment Stiffness / Roll 0.3″/N・cm
Moment Stiffness / Yaw 0.36″/N・cm
Parallelism 30μm
Running Parallelism 10μm
i

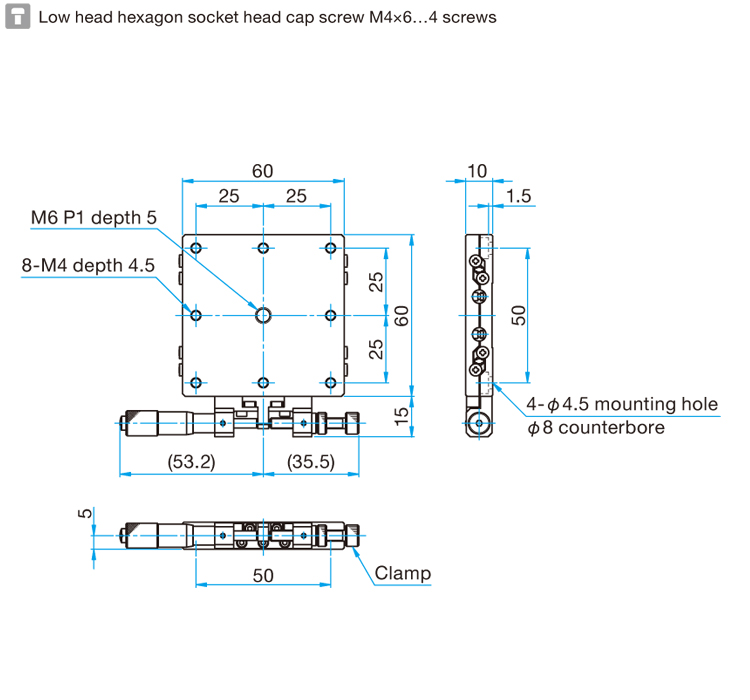

60X60mm EXC Bearing, Steel, X-Axis Stage, Side Micrometer, +/-6.5mm, M4 Threads, Right-handed
TSDT-601SR
60×60mm ±6.5mm 343N (35.0kg) M4
in stock
$379.00
Micrometer Position Side
Lead of Actuator 0.5mm
Micrometer Readable Resolution 0.01mm
Guide Method Extended Contact Ball Bearing Guide
Primary Material Steel
Finish Super black chrome
Travel Accuracy / Straightness 1μm
Travel Accuracy / Pitch 25″
Travel Accuracy / Yaw 15″
Max. Moment Capacity / Pitch 6.4N・m
Max. Moment Capacity / Roll 6.4N・m
Max. Moment Capacity / Yaw 4.9N・m
Moment Stiffness / Pitch 0.2″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Moment Stiffness / Yaw 0.2″/N・cm
Parallelism 30μm
Running Parallelism 10μm
i

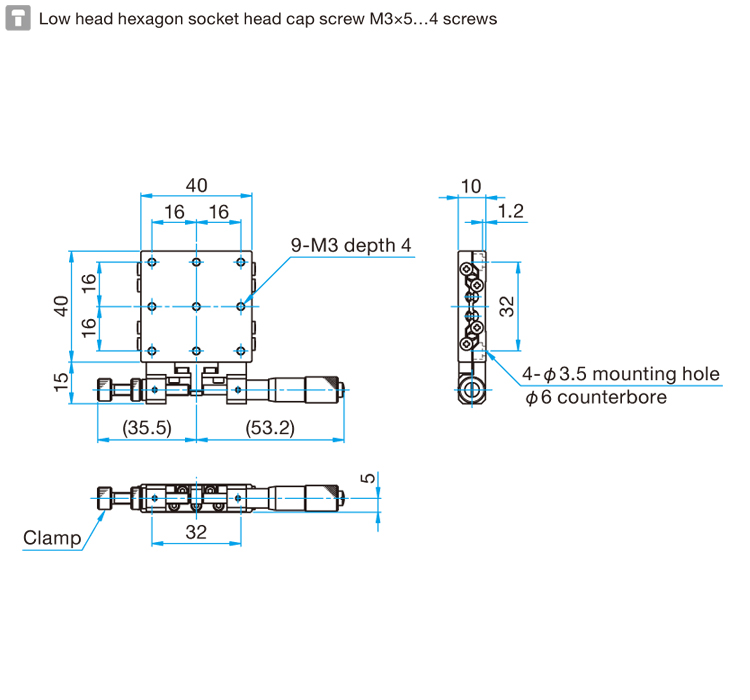

40X40mm EXC Bearing, Steel, X-Axis Stage, Side Micrometer, +/-6.5mm, M3 Threads
TSDT-401S
40×40mm ±6.5mm 147N (15.0kg) M3
6-12 weeks
$333.00
Micrometer Position Side
Lead of Actuator 0.5mm
Micrometer Readable Resolution 0.01mm
Guide Method Extended Contact Ball Bearing Guide
Primary Material Steel
Finish Super black chrome
Travel Accuracy / Straightness 1μm
Travel Accuracy / Pitch 30″
Travel Accuracy / Yaw 25″
Max. Moment Capacity / Pitch 3.9N・m
Max. Moment Capacity / Roll 3.9N・m
Max. Moment Capacity / Yaw 2.9N・m
Moment Stiffness / Pitch 0.36″/N・cm
Moment Stiffness / Roll 0.3″/N・cm
Moment Stiffness / Yaw 0.36″/N・cm
Parallelism 30μm
Running Parallelism 10μm
i

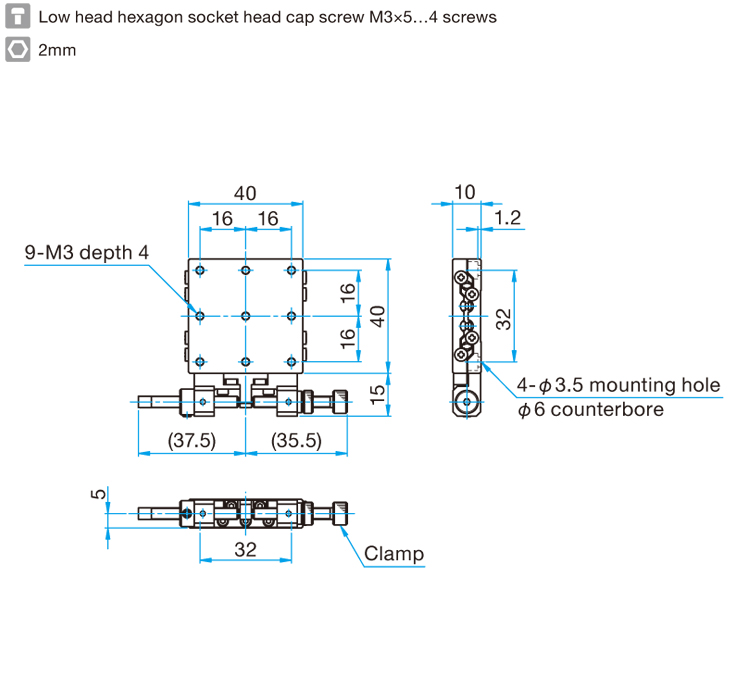

40X40mm EXC Bearing, Steel, X-Axis Stage, Side Hex Screw, +/-6.5mm, M3 Threads, Right-handed
TSDT-401SRFP
40×40mm ±6.5mm 147N (15.0kg) M3
6-12 weeks
$288.00
Micrometer Position Side
Lead of Actuator 0.25mm
Micrometer Readable Resolution -
Guide Method Extended Contact Ball Bearing Guide
Primary Material Steel
Finish Super black chrome
Travel Accuracy / Straightness 1μm
Travel Accuracy / Pitch 30″
Travel Accuracy / Yaw 25″
Max. Moment Capacity / Pitch 3.9N・m
Max. Moment Capacity / Roll 3.9N・m
Max. Moment Capacity / Yaw 2.9N・m
Moment Stiffness / Pitch 0.36″/N・cm
Moment Stiffness / Roll 0.3″/N・cm
Moment Stiffness / Yaw 0.36″/N・cm
Parallelism 30μm
Running Parallelism 10μm

You must be logged in to ask questions

The locking clamp opposes the micrometer/drive screw to both maximize locking strength and ensure the lock will not add eccentric loading to the stage. 〈br>Low-profile is ideal for assembling into systems with limited space or optical applications that require low beam heights.

. Available in left-handed (standard) and right-handed versions.
