High Load Linear Stages 1 Axis (Z)

HST-Z

High Load Linear Stages 1 Axis (Z)
In stock
SKU
HST-Z
High precision Z axis stages fitted with precision ball screws and precision crossed roller.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Travel Load Capacity Delivery Price Add to cart
i
Precision Motorized Stages - 5 Phase Stepping Motor

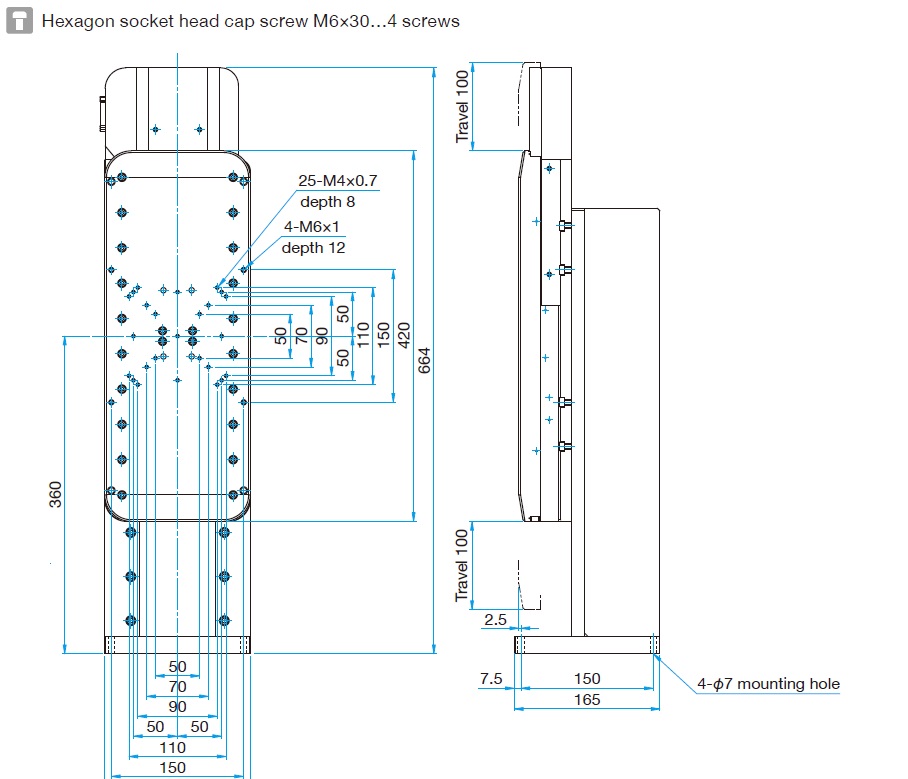

HST-200Z
200mm 98N (10.0kg)
6-12 weeks
$5,304.00
Stage Size 165×420mm
Feed Screw Ball screw diameter φ10mm、2mm lead
Positioning Slide Crossed roller
Stage Material Steel
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
MAX Speed 10mm/sec (20mm/sec at HSC-103)
Positioning Accuracy 8μm
Positional Repeatability 2μm
Load Capacity 98N(10.0kgf)
Moment Stiffness / Pitch 0.03″/N・cm
Moment Stiffness / Yaw 0.02″/N・cm
Moment Stiffness / Roll 0.015″/N・cm
Lost Motion 1μm
Backlash 1μm
Perpendicularity of Motion 25μm
Pitch 25″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Precision Motorized Stages - 5 Phase Stepping Motor
HST-50Z
50mm 98N (10.0kg)
6-12 weeks
$3,345.60
Stage Size 165×165mm
Feed Screw Ball screw diameter φ10mm、2mm lead
Positioning Slide Crossed roller
Stage Material Steel
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
MAX Speed 10mm/sec
Positioning Accuracy 5μm
Positional Repeatability 2μm
Load Capacity 98N(10.0kgf)
Moment Stiffness / Pitch 0.015″/N・cm
Moment Stiffness / Yaw 0.01″/N・cm
Moment Stiffness / Roll 0.005″/N・cm
Lost Motion 1μm
Backlash 1μm
Perpendicularity of Motion 10μm
Pitch 25″
Yaw 15″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Precision Motorized Stages - 5 Phase Stepping Motor
HST-100Z
100mm 98N (10.0kg)
6-12 weeks
$4,284.00
Stage Size 165×220mm
Feed Screw Ball screw diameter φ10mm、2mm lead
Positioning Slide Crossed roller
Stage Material Steel
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
MAX Speed 10mm/sec
Positioning Accuracy 7μm
Positional Repeatability 2μm
Load Capacity 98N(10.0kgf)
Moment Stiffness / Pitch 0.02″/N・cm
Moment Stiffness / Yaw 0.015″/N・cm
Moment Stiffness / Roll 0.015″/N・cm
Lost Motion 1μm
Backlash 1μm
Perpendicularity of Motion 15μm
Pitch 25″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)

You must be logged in to ask questions

◦The combination of HST Series and 3 axis Stage Controllers HSC-103 can perform low-noise and low-vibration operation, compared with conventional products.
◦Steel body offers excellent stiffness and high load capacity.
