Controllers for SGSP-Series 5-Phase Stepper-Motor Actuators

CONTROL-SGSP-ACT

Controllers for SGSP-Series 5-Phase Stepper-Motor Actuators
In stock
SKU
CONTROL-SGSP-ACT
1-, or 2-axis controller with a built-in 5-phase stepping motor driver.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Driving Motor Number of Control Axes Delivery Price Add to cart
i
2-Axis Stepper Motor Controller
GSC-02A
5-phase stepping motor 2 Axes
in stock
$821.00
Part Name 2 axis Stage Controller
Min Driving Speed 1pps
Max. Driving Speed 30,000pps
Acceleration/Deceleration Time 0~1,000ms
Driving Current 0.3 − 0.8A/phase
Number of Control Axes 2 axes
Operating Temperature 5 - 40℃
External Dimensions (W×H×D) 180×40×125mm
i
2-Axis Stepper Motor Controller, For 5-Phase Stepper Motors
GSC-02C
5-phase stepping motor 2 Axes
2 weeks
$887.00
Min/Max. Driving Speed 1pps / 30,000pps
Acceleration/Deceleration 1 to 1,000ms
MIcro-Step Capability Half Step( 2 pulses per step)
Driving Current 0.2 - 0.8A/phase
Power Voltage 24VDC (2A)
Power Consumption 48W (VA)
Operating Temperature 5 - 40C
External Dimensions (WxHxD) 180x40x125mm
Optional Joy Stick Model SJT-02
AC-to-DC Power Adaptor Model (100-240VAC, 50/60Hz) AC-ADP-2427 (sold separately)
i
1-Axis Stepper Motor Controller, AC Power Adaptor Included
GSC-01-P
6-12 weeks
$626.00
Min Driving Speed 100pps
Max. Driving Speed 20,000pps
Acceleration/Deceleration Time 0~1,000ms
Driving Current 0.3 − 0.8A/phase
Number of Control Axes 1 axis
Operating Temperature 5 - 40℃
External Dimensions (W×H×D) 47×90×125mm
i
2-Axis Stepper Motor Controller, AC Power Adaptor Included
GSC-02A-P
6-12 weeks
$891.00
Part Name 2 axis Stage Controller
Min Driving Speed 1pps
Max. Driving Speed 30,000pps
Acceleration/Deceleration 0~1,000ms
Driving Current 0.3 − 0.8A/phase
Number of Control Axes 2 axes
Operating Temperature 5 - 40℃
External Dimensions (W×H×D) 180×40×125mm
i

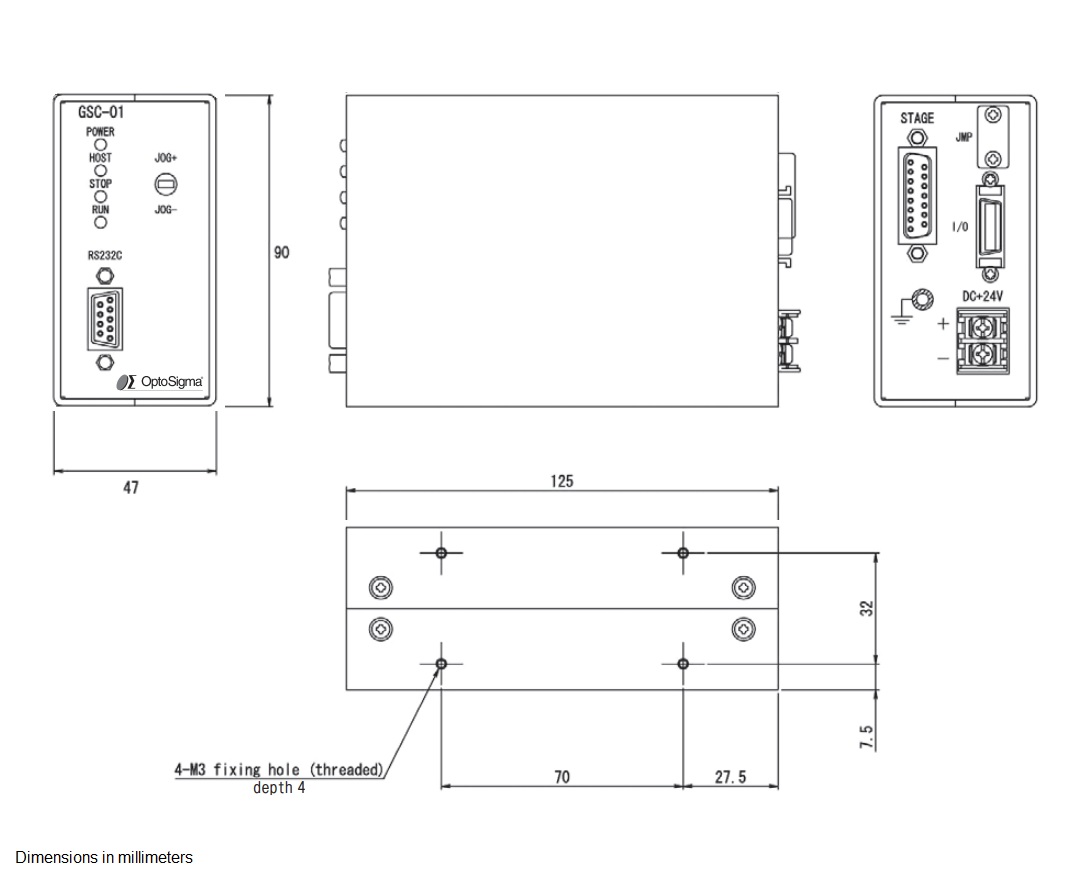

1-Axis Stepper Motor Controller
GSC-01
5-phase stepping motor 1 Axis
in stock
$364.00
Min Driving Speed 100pps
Max. Driving Speed 20,000pps
Acceleration/Deceleration 0~1,000ms
Driving Current 0.3 − 0.8A/phase
Number of Control Axes 1 axis
Operating Temperature 5 - 40℃
External Dimensions (W×H×D) 47×90×125mm
i
2-Axis Stepper Motor Controller, For 5-Phase Stepper Motors, AC Power Adaptor Included
GSC-02C-P
5-phase stepping motor 2 Axes
6-12 weeks
$949.00
Min/Max. Driving Speed 1pps / 30,000pps
Acceleration/Deceleration 1 to 1,000ms
MIcro-Step Capability Half Step( 2 pulses per step)
Driving Current 0.2 - 0.8A/phase
Power Voltage 24VDC (2A)
Power Consumption 48W (VA)
Operating Temperature 5 - 40C
External Dimensions (WxHxD) 180x40x125mm
Optional Joy Stick Model SJT-02
AC-to-DC Power Adaptor Model (100-240VAC, 50/60Hz) AC-ADP-2427 (included)
i
Cable with DB15 to mini connector 5m Length
D15RP-CA-5
2 weeks
$94.00
Controller Side D-sub 15pin / male type
Stage Side RP17-13PA-12PC / 12pin
Cable Length 5m
i
Cable with DB15 to mini connector 2m Length
D15RP-CA-2
6-12 weeks
$68.00
Controller Side D-sub 15pin / male type
Stage Side RP17-13PA-12PC / 12pin
Cable Length 2m
i
Cable with DB15 to mini connector 3m Length
D15RP-CA-3
2 weeks
$73.00
Controller Side D-sub 15pin / male type
Stage Side RP17-13PA-12PC / 12pin
Cable Length 3m
