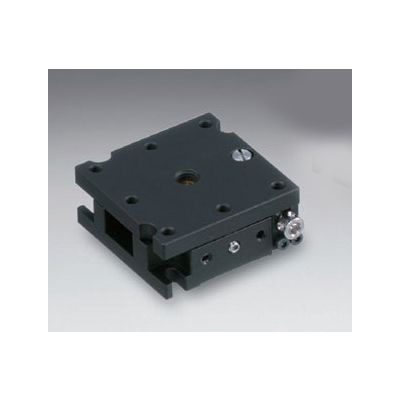

40x40mm Square, Brass, Dovetail Rotation Stage, +/-5 Deg Fine Adjustment, Hex Screw Drive, M3 Threads
KSSA-406
×
The KSSA stages are fine rotation stages having a square table top. These stages are suitable for making minute angle adjustment in applicationswhere a minimasl footprint is desirrd.
| Name | 40x40mm Square, Brass, Dovetail Rotation Stage, +/-5 Deg Fine Adjustment, Hex Screw Drive, M3 Threads |
|---|---|
| Weight | 0.2300kgs |
| Guide |
|
| Attention |
|
| Image Label | Rotation Stage Brass 40mm Square 10 Degree Fine Screw Adjustment and Lockable with Metric Holes |
| Stage Size | 40×40mm |
| Rotation Range | ±5° |
| Load Capacity | 49N (5.0kg) |
| Mounting Thread | M3 |
| Stage Size | 40×40mm |
| Rotation Range | ±5mm |
| Scale Readable Resolution | - |
| Micrometer Readable Resolution | about 1.92° |
| Guide Method | Dovetail method |
| Primary Material | Brass |
| Finish | Super black chrome |
| Load Capacity | 49N(5.0kgf) |
| Max. Moment Capacity | - |
| Moment Stiffness | 1.5″/N･cm |
| Parallelism | 50μm |
| Eccentricity | - |
| Wobble | - |
In stock
SKU
KSSA-406
$324.00
Customize product
The KSSA stages are fine rotation stages having a square table top. These stages are suitable for making minute angle adjustment in applicationswhere a minimasl footprint is desirrd.
