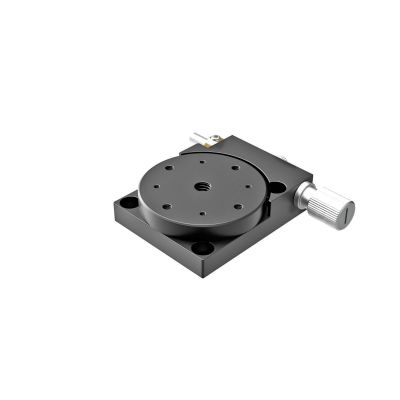

40mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Hex Screw Drive, M3 Threads
KSP-406FPR
×
Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
| Name | 40mm Diameter, Brass, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Hex Screw Drive, M3 Threads |
|---|---|
| Weight | 0.3000kgs |
| Guide |
|
| Attention | - |
| Image Label | Rotation Stage Brass 40mm with 360 Degree Course Adjustment and 10 Degree Fine Pitch Screw Adjustment Right Handed and Lockable with Metric Holes |
| Stage Size | φ40mm |
| Rotation Range | Coarse:360° Fine:±5° |
| Load Capacity | 49N (5.0kg) |
| Mounting Thread | M3 |
| Stage Size | φ40mm |
| Rotation Range | Coarse:360° Fine:±5° |
| Scale Readable Resolution | 2° |
| Micrometer Readable Resolution | - |
| Guide Method | Lapping method |
| Primary Material | Brass |
| Finish | Super black chrome |
| Load Capacity | 49N(5.0kgf) |
| Max. Moment Capacity | 0.3N･m |
| Moment Stiffness | 1.5″/N･cm |
| Parallelism | 20μm |
| Eccentricity | 20μm |
| Wobble | 20μm |
In stock
SKU
KSP-406FPR
$255.00
Customize product
Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
