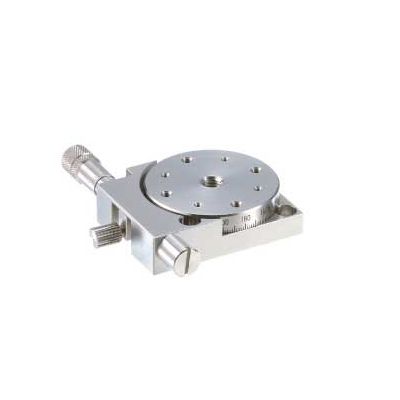

40mm Diameter, Stainless Steel, Lapped-Surface Bearing Rotation Stage, +/-5 Deg Fine Adjustment, Micrometer Drive, M3 Threads
KSPS-406M
×
Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
| Name | 40mm Diameter, Stainless Steel, Lapped-Surface Bearing Rotation Stage, +/-5 Deg Fine Adjustment, Micrometer Drive, M3 Threads |
|---|---|
| Weight | 0.3000kgs |
| Guide | - |
| Attention | - |
| Image Label | Rotation Stage Stainless Steel 40mm with 360 Degree Course Adjustment and 10 Degree Fine Micrometer Adjustment and Lockable with Metric Holes |
| Stage Size | φ40mm |
| Load Capacity | 49N (5.0kg) |
| Mounting Thread | M3 |
| Stage Size | φ40mm |
| Angle of Rotation | Coarse :360° Fine :±5° |
| Scale Readable Resolution | 2° |
| Micrometer Readable Resolution | ≒1′24.2″ |
| Load Capacity | 49N(5.0kgf) |
| Max. Moment Capacity | 0.3N･m |
| Moment Stiffness | 1.5″/N･cm |
| Parallelism | 30μm |
| Eccentricity | 20μm |
| Wobble | 20μm |
In stock
SKU
KSPS-406M
$1,005.00
Customize product
Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
