40X40mm Goniometer, V6 Vacuum Compatible, Stainless Steel , 1-Axis, +/-20 deg, 15mm Axis Ht, Worm-gear, M3 Thd

GOHS-40A15

3d-simple-product

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Goniometers with dovetail slide and worm gear construction for angular adjustment of heavy loads.

More Information

More Information
Name	40X40mm Goniometer, V6 Vacuum Compatible, Stainless Steel , 1-Axis, +/-20 deg, 15mm Axis Ht, Worm-gear, M3 Thd
Weight	0.2500kgs
Guide	The GOHS series offers stages suitable for use in clean rooms or vacuum applications. Vacuum measurement data Also ideal for use in airtight spaces that have to avoid outgassing.
Attention	Locking mechanism is operated using thumbscrew on side of stage.

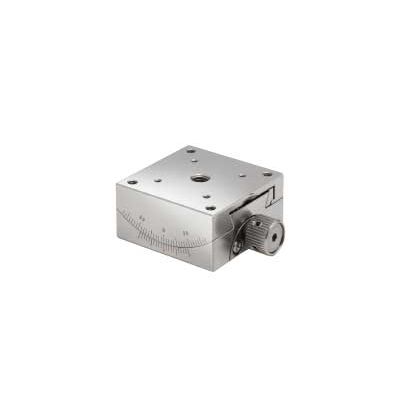

Image Label	Single Axis Stainless Steel Vacuum Compatible Goniometer 40mm Size with Dovetail Bearingway 15mm Center Height with Metric Holes
Stage Size	40×40mm
Angle Range	±20°
Load Capacity	68.7N (7.0kg)
Rotation Center Height	15±0.1mm
Angle Range	±20°
Travel per Knob Rotation	about 2.83°
Vernier Readable Resolution	12′
Rotation Center Displacement	φ2mm or less

In stock

SKU

GOHS-40A15

$1,126.00

Goniometers with dovetail slide and worm gear construction for angular adjustment of heavy loads.
