25X25mm EXC Bearing, Stainless Steel, XY-Axis Stage, Side Micrometer, +/-3mm, M2 Threads, Right-handed

TSDH-252WSR

×
3d-simple-product

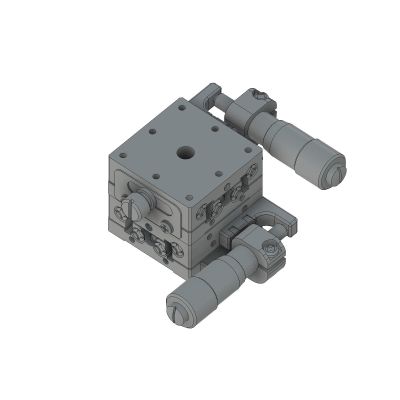

main product photo
High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.

See the Left Handed version of this product
TSDH-252WS




More Information
Name 25X25mm EXC Bearing, Stainless Steel, XY-Axis Stage, Side Micrometer, +/-3mm, M2 Threads, Right-handed
Weight 0.1400kgs
Guide
  • Also available with a super black chrome surface finish. Please contact sales for more information.
Attention
  • Micrometer brackets may extend above the top surface of some stages. Check drawings for detailed information.
Image Label Stainless Steel XY Stage 25x25mm Metric Threads Side Drive Right Hand
Stage Size 25×25mm
Travel ±3mm
Load Capacity 59.8N (6.0kg)
Mounting Thread M2
Micrometer Position Side
Lead of Actuator 0.5mm
Micrometer Readable Resolution 0.01mm
In stock
SKU
TSDH-252WSR
$665.00

Delivery in : 2-3 weeks

custom product
Customize product
Add to Wish List
High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.
