25X25mm EXC Bearing, Stainless Steel, XY-Axis Stage, Center Hex Screw, +/-3mm, M2 Threads

TSDH-252WCFP

High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.

More Information
Name	25X25mm EXC Bearing, Stainless Steel, XY-Axis Stage, Center Hex Screw, +/-3mm, M2 Threads
Weight	0.1400kgs
Guide	Also available with a super black chrome surface finish. Please contact sales for more information.
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for detailed information.

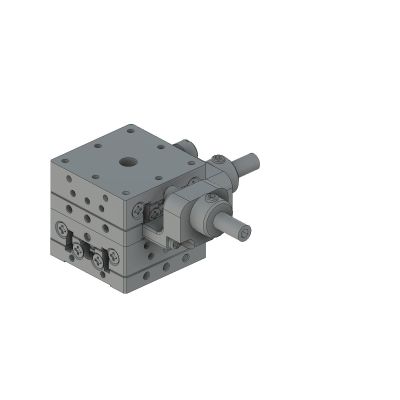

Image Label	Stainless Steel XY Stage 25x25mm Metric Threads Center Drive with Fine Pitch Screw
Stage Size	25×25mm
Travel	±3mm
Load Capacity	59.8N (6.0kg)
Mounting Thread	M2
Micrometer Position	Center
Lead of Actuator	0.25mm
Micrometer Readable Resolution	-

In stock

SKU

TSDH-252WCFP

$532.00

High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.
