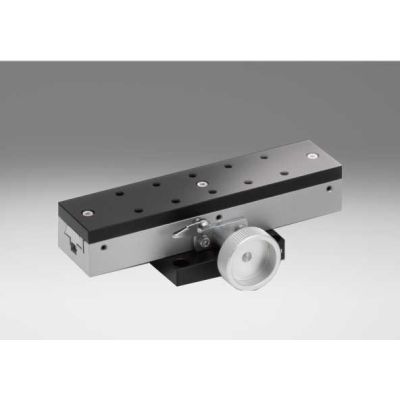

34X14mm Dovetail Bearing, Brass, X-Axis Stage, Rack&Pinion Drive, +/-50mm, M4 Threads

TAR-34141

Rack and pinion dovetail translation stages, suitable for frequent use that requires quick movement and long travel.

More Information
Name	34X14mm Dovetail Bearing, Brass, X-Axis Stage, Rack&Pinion Drive, +/-50mm, M4 Threads
Weight	1.2300kgs
Guide	Use adaptor plates for TAR (SP-109 (WEB Reference Catalog Code/W6061) and SP-131（ (WEB Reference Catalog Code/W6073）) to mount post holders and various stages.
Attention	-
Image Label	Rack and Pinion Dovetail X Stage 34×140mm Size Metric Threads 100mm Travel
Stage Size	34×140mm
Travel	50mm
Load Capacity	245N (25.0kg)
Guide Method	Dovetail method
Primary Material	Brass
Finish	Super black chrome
Lead of Actuator	about 20mm
Vernier Scale	0.1mm
Travel Accuracy / Straightness	30μm
Max. Moment Capacity / Pitch	6.9N･m
Max. Moment Capacity / Roll	2.0N･m
Max. Moment Capacity / Yaw	3.9N･m
Moment Stiffness / Pitch	0.05″/N･cm
Moment Stiffness / Roll	0.82″/N･cm
Parallelism	80μm

In stock

SKU

TAR-34141

$340.00

Rack and pinion dovetail translation stages, suitable for frequent use that requires quick movement and long travel.
