Fine Pitch Screw Actuators

SKU : FPSA

In stock

SKU

FPSA

Suitable as direct replacements brackets of micrometer heads used on OptoSigma's manual stages. Elimination of knobs saves space and prevents inadvertent operation.

Name	Length	Delivery	Price

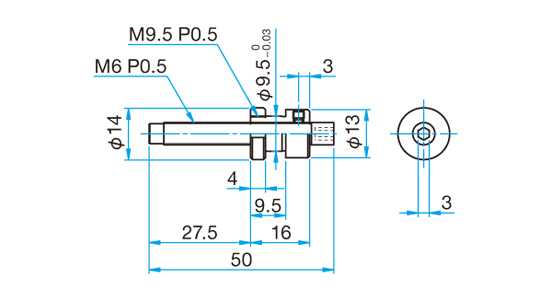

34mm Travel Fine-Pitch Screw, 0.50mm/thd, Flat Carbide Tip, 9.5mm Shank Diameter, Locking FPSA-65050	50mm	5-10 days	$24.00
24mm Travel Fine-Pitch Screw, 0.25mm/thd, Ball Tip, 9.5mm Shank Diameter, Locking FPSA-62540R	41.4mm	5-10 days	$24.00
14mm Travel Fine-Pitch Screw, 0.50mm/thd, Ball Tip, 6mm Shank Diameter, Locking FPSA-45025R	26.2mm	5-10 days	$22.00

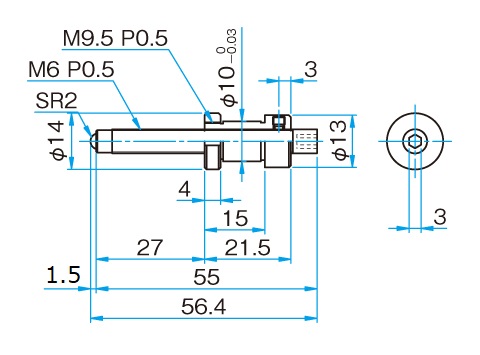

33.5mm Travel Fine-Pitch Screw, 0.50mm/thd, Ball Tip, 9.5mm Shank Diameter, Locking FPSA-65055R	56.4mm	5-10 days	$27.00
Knob, 10mm Diameter Straight Knurl, 2mm Hex Key, Stainless Steel KCL-203		5-10 days	$5.00
24mm Travel Fine-Pitch Screw, 0.25mm/thd, Flat Carbide Tip, 9.5mm Shank Diameter, Locking FPSA-62540	40mm	5-10 days	$21.00

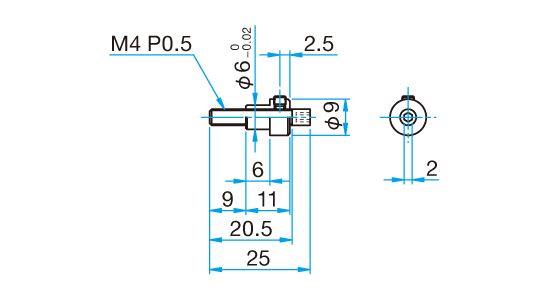

14mm Travel Fine-Pitch Screw, 0.50mm/thd, Flat Carbide Tip, 6mm Shank Diameter, Locking FPSA-45025	25mm	5-10 days	$19.00

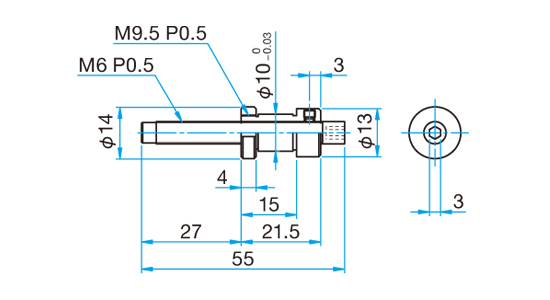

33.5mm Travel Fine-Pitch Screw, 0.50mm/thd, Flat Carbide Tip, 10mm Shank Diameter, Locking FPSA-65055	55mm	in stock	$24.00

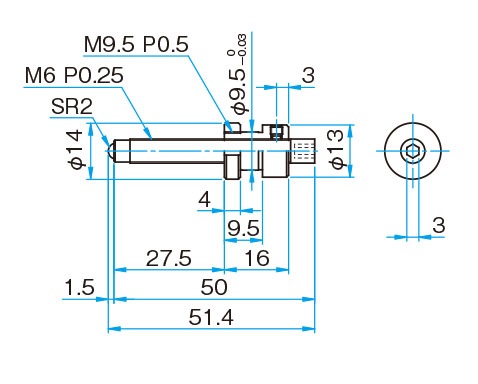

34mm Travel Fine-Pitch Screw, 0.25mm/thd, Ball Tip, 9.5mm Shank Diameter, Locking FPSA-62550R	51.4mm	5-10 days	$27.00

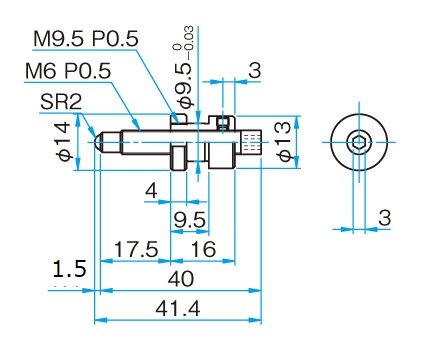

24mm Travel Fine-Pitch Screw, 0.50mm/thd, Ball Tip, 9.5mm Shank Diameter, Locking FPSA-65040R	41.4mm	5-10 days	$24.00
Knob, 14mm Diameter Straight Knurl, 3mm Hex Key, Stainless Steel KCL-304		in stock	$5.00

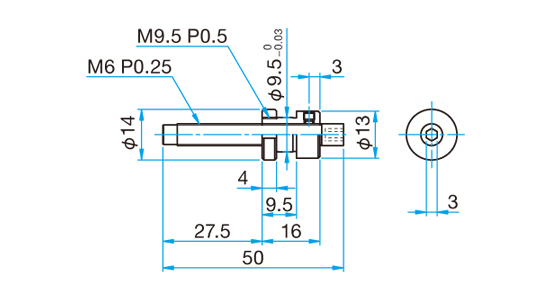

34mm Travel Fine-Pitch Screw, 0.25mm/thd, Flat Carbide Tip, 9.5mm Shank Diameter, Locking FPSA-62550	50mm	in stock	$24.00
24mm Travel Fine-Pitch Screw, 0.50mm/thd, Flat Carbide Tip, 9.5mm Shank Diameter, Locking FPSA-65040	40mm	5-10 days	$21.00
14mm Travel Fine-Pitch Screw, 0.25mm/thd, Flat Carbide Tip, 6mm Shank Diameter, Locking FPSA-42525R	26.2mm	3-6 weeks	$22.00
33.5mm Travel Fine-Pitch Screw, 0.25mm/thd, Ball Tip, 10mm Shank Diameter, Locking FPSA-62555R	56.4mm	5-10 days	$27.00

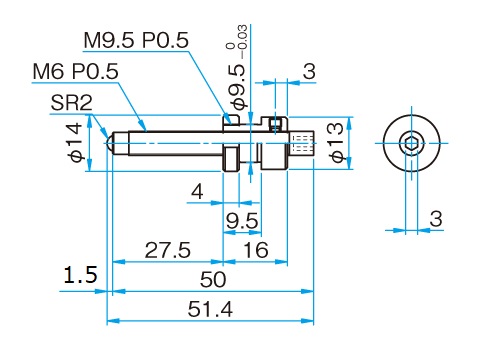

34mm Travel Fine-Pitch Screw, 0.50mm/thd, Ball Tip, 9.5mm Shank Diameter, Locking FPSA-65050R	51.4mm	5-10 days	$27.00
14mm Travel Fine-Pitch Screw, 0.25mm/thd, Flat Carbide Tip, 6mm Shank Diameter, Locking FPSA-42525	25mm	in stock	$19.00
33.5mm Travel Fine-Pitch Screw, 0.25mm/thd, Flat Carbide Tip, 10mm Shank Diameter, Locking FPSA-62555	55mm	5-10 days	$24.00

You must be logged in to ask questions

The screw bushing can be locked with the clamp screw.
The flat-type tip is compatible with OptoSigma manual stages and holderss.
The knobbed KCL hex wrench or other customer supplied hex wrench can be used.
