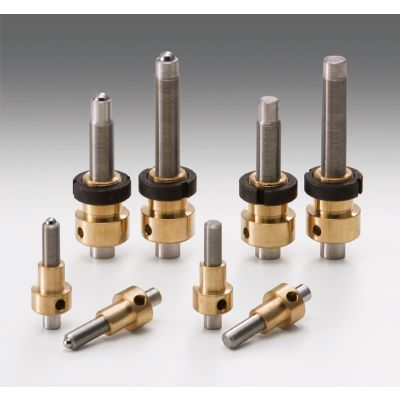

33.5mm Travel Fine-Pitch Screw, 0.50mm/thd, Flat Carbide Tip, 10mm Shank Diameter, Locking

FPSA-65055

Skip to the beginning of the images gallery

Suitable as direct replacements brackets of micrometer heads used on OptoSigma's manual stages. Elimination of knobs saves space and prevents inadvertent operation.

Details

More Information

More Information
Name	33.5mm Travel Fine-Pitch Screw, 0.50mm/thd, Flat Carbide Tip, 10mm Shank Diameter, Locking
Weight	0.0250kgs
Guide	Can be purchased assembled with manual stage. Contact our International Sales Division for more information.
Attention	The flat type-tip works best against spheres and the R-Type works best pushing against flats.
Image Label	Fine pitch Screw M6P0.5 9.5mm Shank 55mm length
Length	55mm
Screw	M6
Pitch	0.5mm
Length	55mm
Bush Diameter	10mm
Bush Length	11mm
Load Capacity (Static load)	39.2N(4kgf)

In stock

SKU

FPSA-65055

$28.83

Suitable as direct replacements brackets of micrometer heads used on OptoSigma's manual stages. Elimination of knobs saves space and prevents inadvertent operation.

33.5mm Travel Fine-Pitch Screw, 0.50mm/thd, Flat Carbide Tip, 10mm Shank Diameter, Locking

Resources & Downloads
